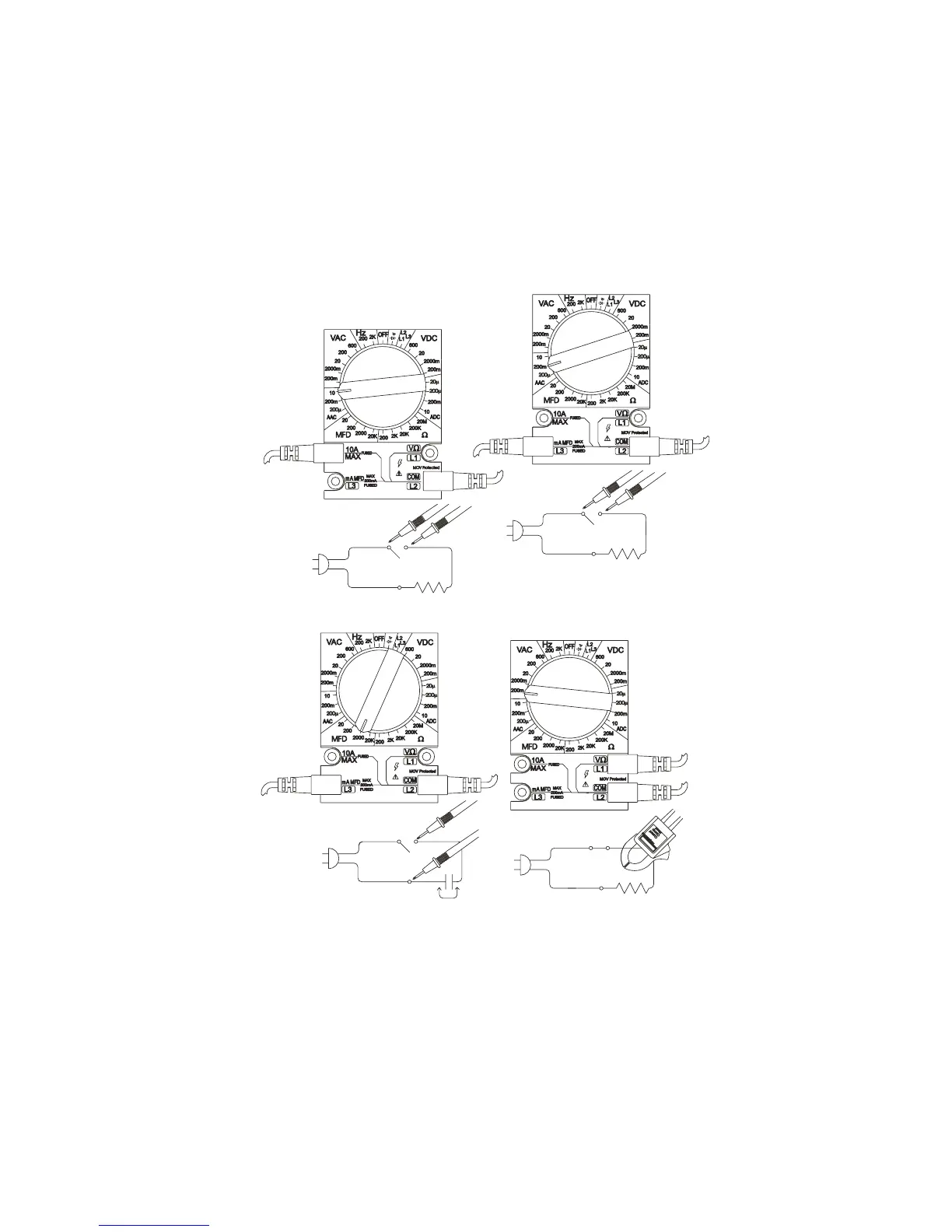

Fieldpiece HB74 - Measurement Setup Examples; Current and Capacitance Setups

5
AMPS<200mA
AMPS WITH CLAMP
For best resolution on any
function, choose range just above
value you expect. If display reads
overload ("OL") select a higher
range.
AMPS>200mA
CAPACITANCE (
µµ
µµ
µFarads)
Discharge first
For DC amps through the meter,
select DC, not AC as shown above.
