FILL-RITE TS20A User Manual

13

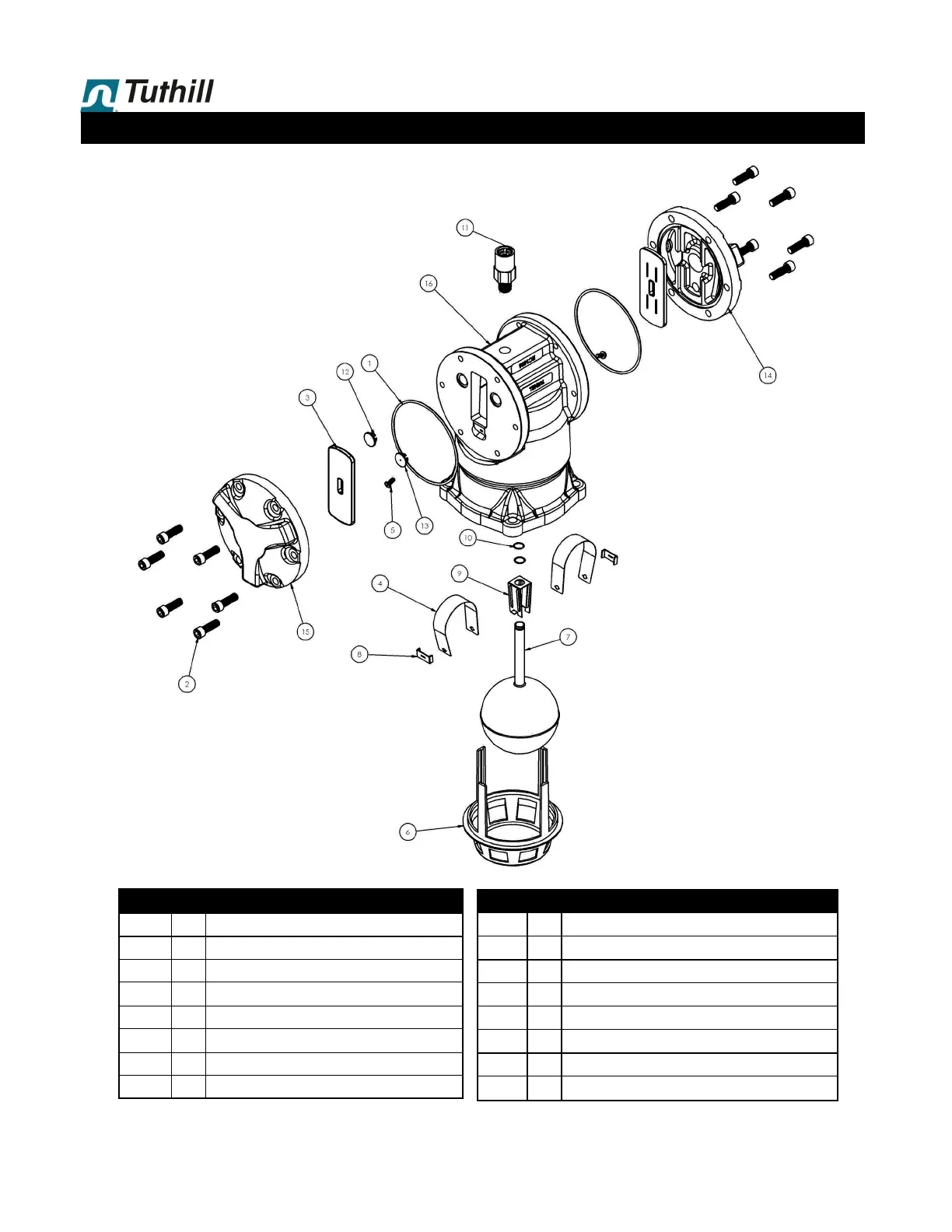

Flow Meter Maintenance
Item # Qty Descripon
1 2 O-Ring, Buna*
2 12 Screw, 5/16-18 X 1 SHCS
3 2 Plate, Oriface Assembly*
4
2 Reed, Oriface
5 2 Screw, 8-32 X 3/8 PPHMS
6
1 Float Guide
7 1 Float, Assembly
8 2 Clip, Reed Retaining
RKAE20 Repair Kit Air Eliminator Float Assembly w/Reeds
Item # Qty Descripon
9 1
Mounng Block Reed
10 2
Ring, Retaining
11 1
Relief Valve, Hydrostac
12 1
Plug, Air Elim, LPG*
13 1
Plug, Limited Bleed, Air Elim, LPG*
14 1
Cover, Air Eliminator, LPG, Anodized
15 1
Cover, Blind, Air Elim. LPG, Anodized
16 1
Housing, Air Eliminator LPG, Anodized
KITTAE20 Air Eliminator Seal Kit, LPG
*
*
*
*
Included in KITTAE20 Air Eliminator Seal Kit, LPG
*
Strainer O-ring not shown.
