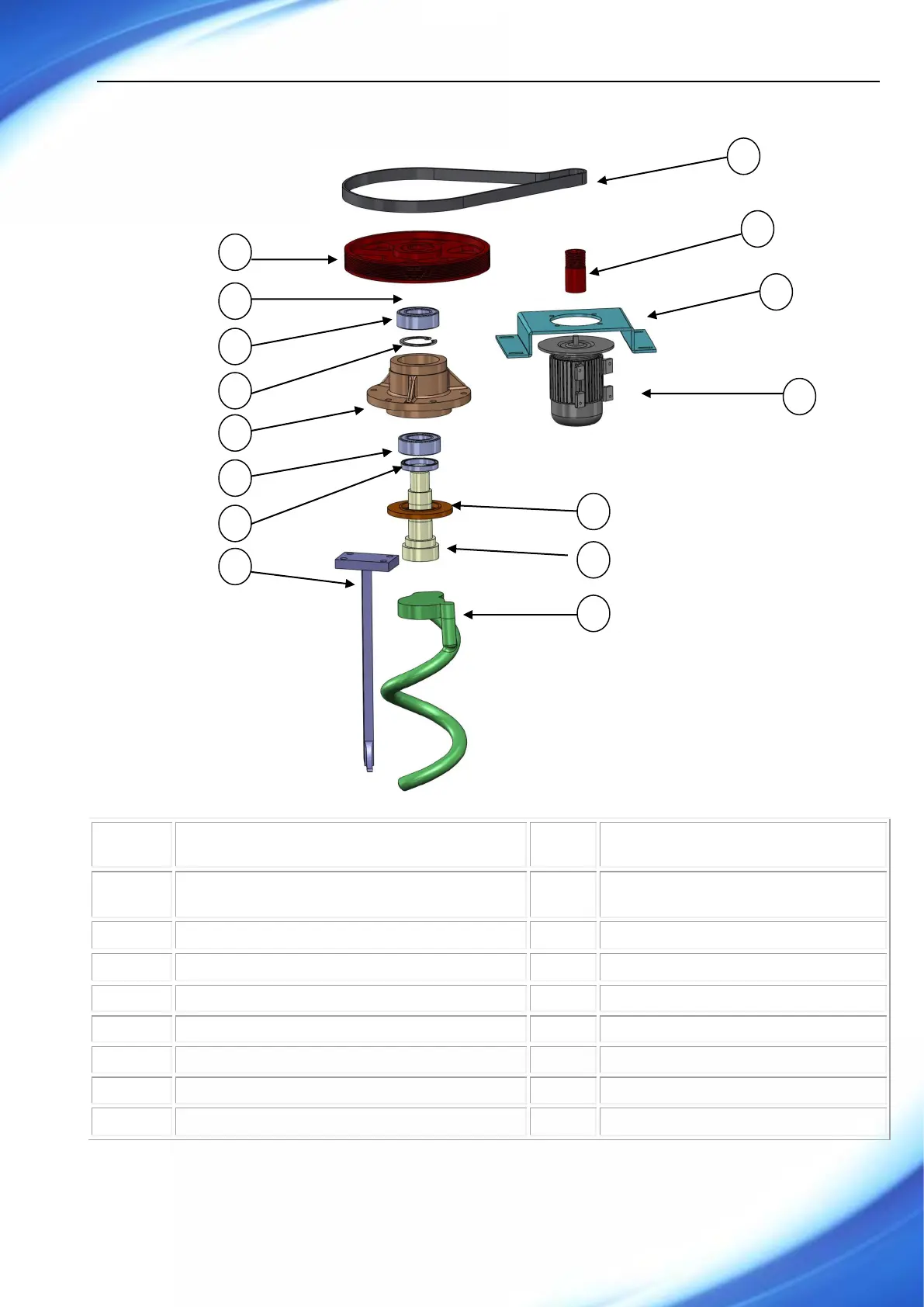

3.1.5 THE MIXING SET COMPONENTS LIST (SPM-40)
Pos. No:
NAME
Pos.
No:
NAME
1
004019 8PK 1335 PolyV Belt
9
021374 Die-Casting Bearing
Housing
2
004762 Ø40 Retaining Ring
10
004581 3210 ZZ Bearing
3
003992 Upper Engine Pulley ( Ø43x17)
11
005191 65x80x10 Oil Seal
4
021617 Upper Engine Tray
12
003119 Blade
5
003633 Engine (3/1,5 kw) 1500/750 D/D
13
021635 Oil Seal Ring
6
003975 310x17 Upper Spiral PolyV Pulley
14
021465 Shaft of Spiral Hook
7
004605 6210 ZZ Bearing
15
004886 Spiral Hook
8
004768 Ø90 Retaining Ring
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
