Page 9

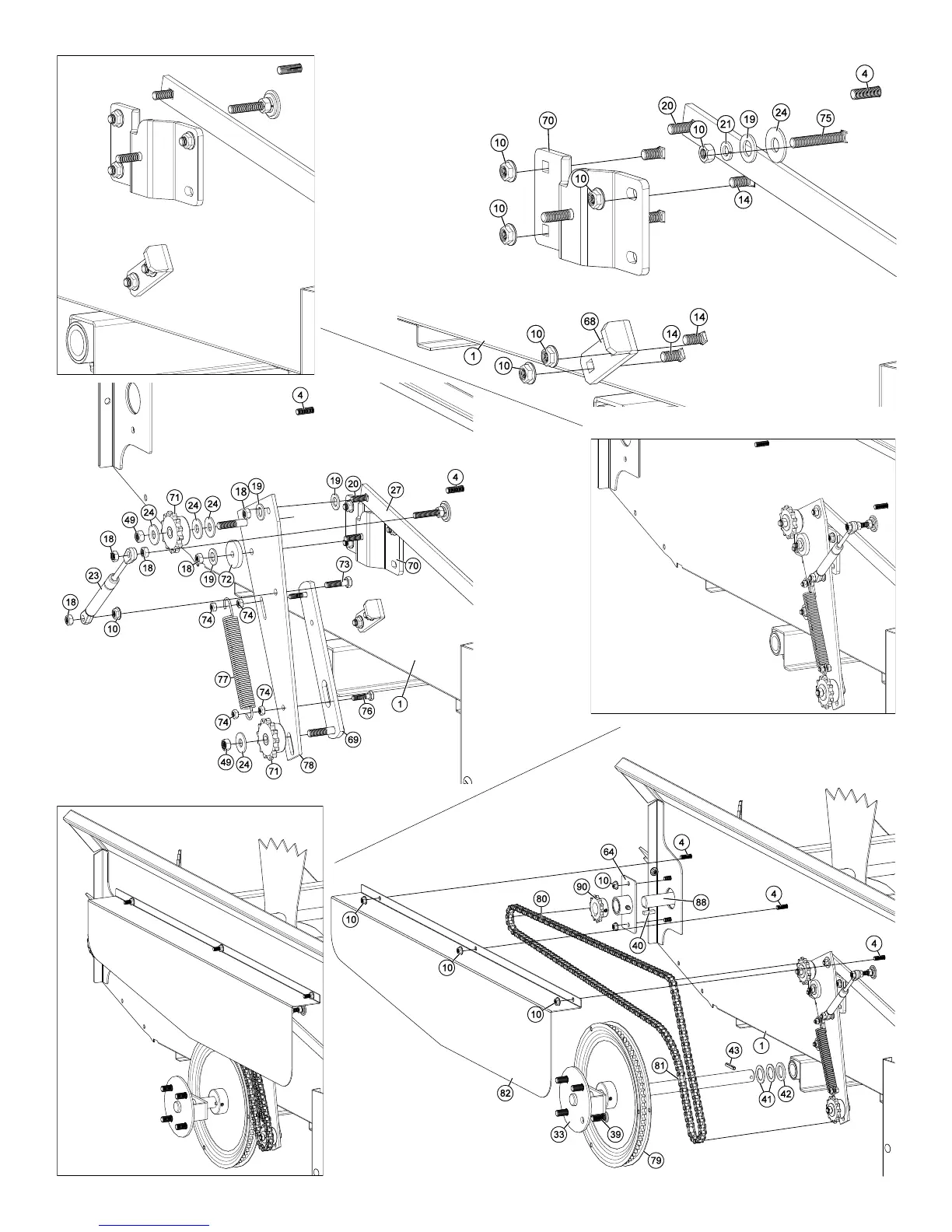

Detail G1
Detail G2
Detail G3
NOTE: Roll Pin (Item 43) goes
through the hole in the axle, after
assembled to main frame. See
Detail J3
