BB1216 - BB1222 MU0518 Rev. A
37
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
1
2
4
3
5
9
6
87
10
11

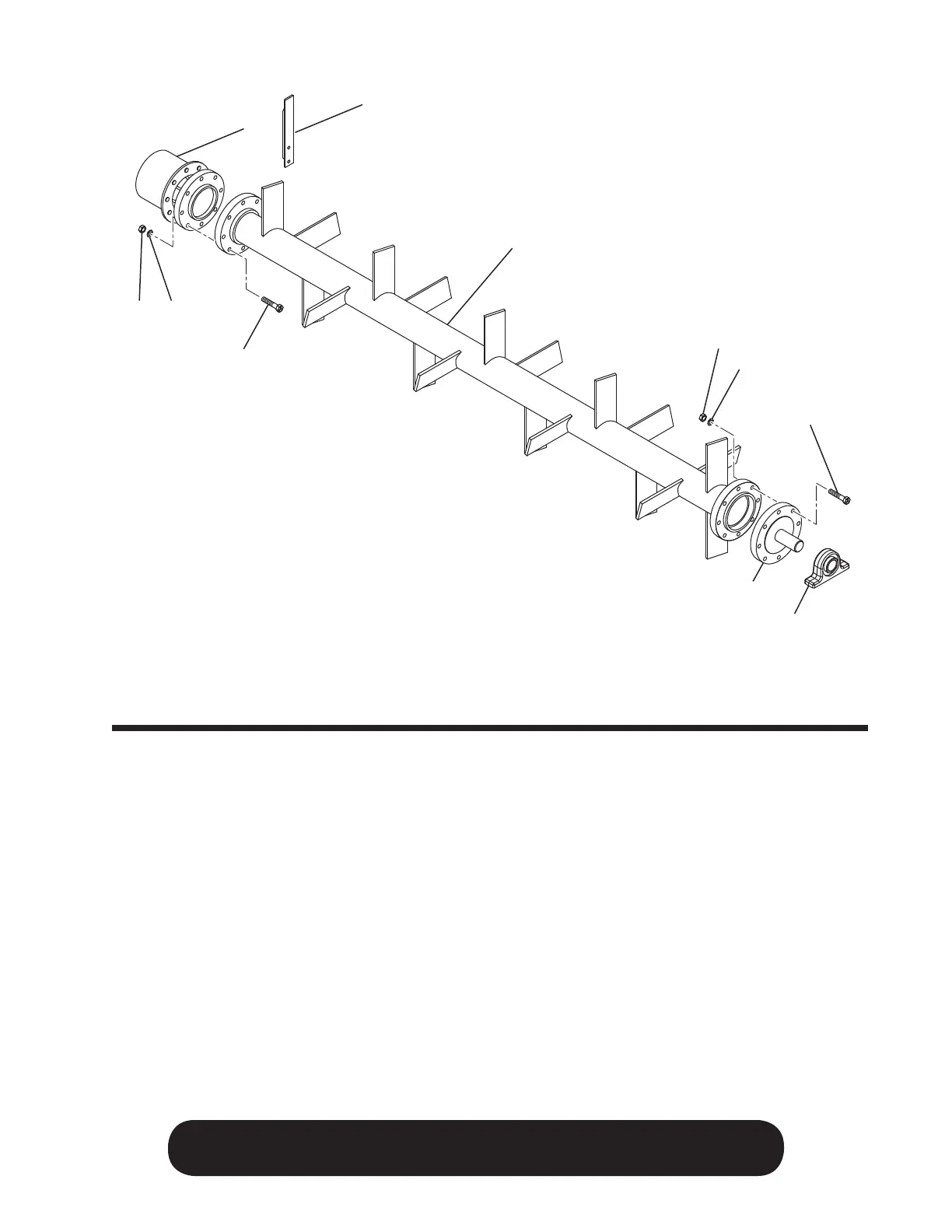

AGITATOR ASSEMBLY
Ref. No. Part Number Description No. Req'd
052873-02 Agitator Assembly (Includes Items 1 thru 5) 1
1 052872-01 Agitator Shaft 1
2 052420 Special Agitator Stub Shaft 1
3 0X1260 3/4-10 UNC HHCS x 3-3/4 in. Lg. 8
4 00X12L 3/4-10 UNC Lock Nut 8
5 00W12L 3/4 in. Lock Washer 8
6 0X1040 5/8-11 UNC HHCS x 2-1/2 in. Lg. 8
7 00Y10L 5/8-11 UNC Lock Nut 8
8 00W10L 5/8 in. Lock Washer 8
9 052446 Gear Box 1
WL7-122 1/2-20 Press-In Stud 8
10 052129 Agitator Bearing 1
11 053072 Agitator Scraper 1
NOT SHOWN
052991 Hydraulic Motor 1
To Next Page
