BB1216 - BB1222 MU0518 Rev. A
43
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
12
13
14
16
15

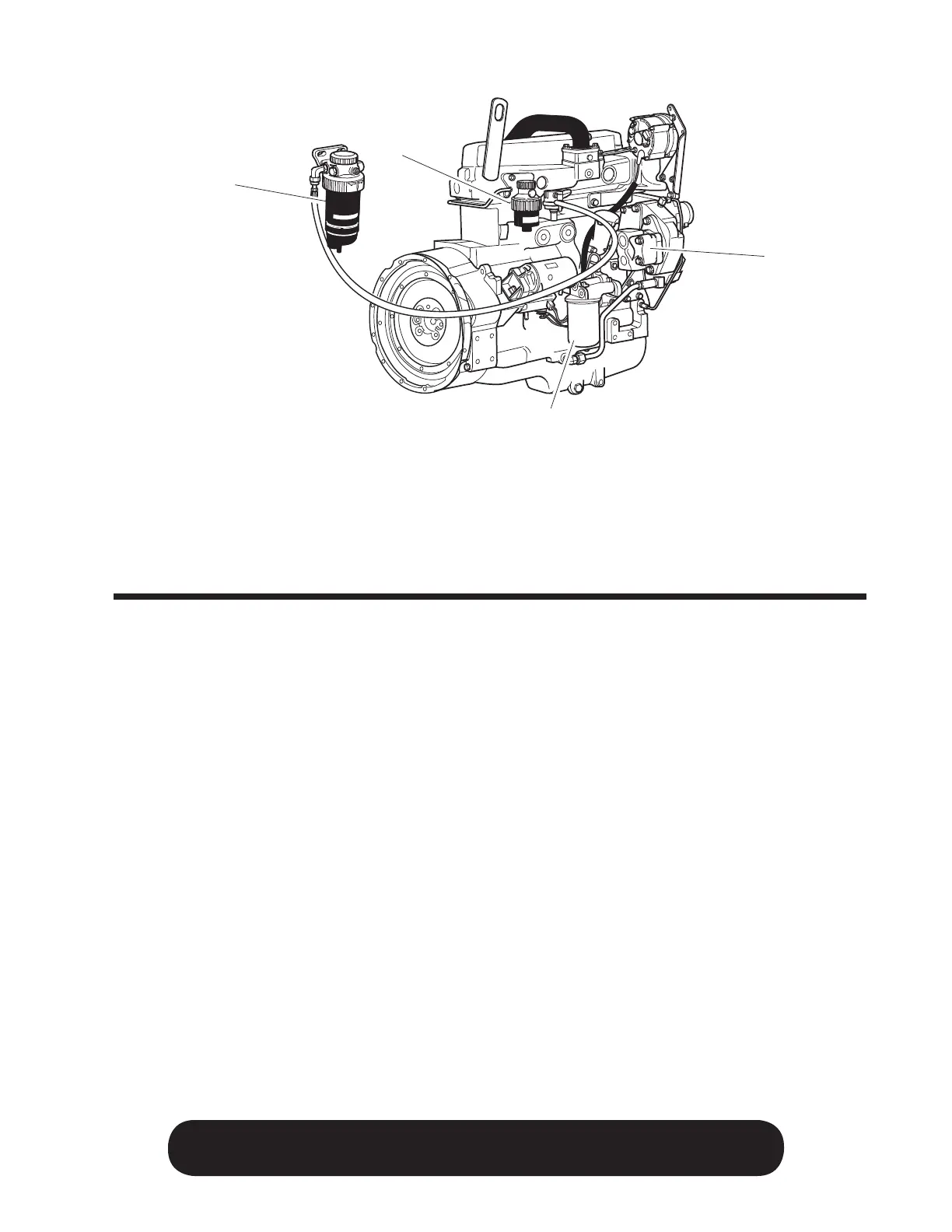

VIEW A
ENGINE AND RADIATOR
Ref. No. Part Number Description No. Req'd
1 023916 4045T Tier 3 Engine Assembly 1
2 JDR524005 Fan Belt 1
3 JDSD443 Fan Spacer 1
4 JDART24834 Pusher Fan 1
5 F330-0135 Radiator Arm Support Bracket 1
6 023438 Rubber Mount 3
7 F330-0131 Radiator Support Bracket 1
8 JDSD284 Fan Guard 1
9 JD50-0532 Radiator 1
10 023807 Radiator Cap 1
11 F330-0130 Radiator Mount 1
12 052817 Eaton Hydraulic Pump 1
13 JDR96934 Pump Gasket 1
14 JDRE504836 Oil Filter 1
15 JDRE522878 Secondary Fuel Filter 1
16 JDRE541922 Primary Fuel Filter 1
NOT SHOWN
053124 Engine to Blower Standoff 1
To Next Page
