P7
3° INCLINATION
This air conditioner has a system to drain the
condensate moisture automatically. Please
read carefully the following instruction.
Drill a hole through the wall measuring 30mm
in diameter in the position shown in the
paper template, marked the center before.
Drainage occurs by gravity. For this reason,
it is essential for the drain line to have a
minimum downward inclination at least 3
degrees through
out its length. With this
solution, you can drain the condensate
moisture to a suitable place to do not cause
any problems to your neighbours.
This drainage method is more common use,
and the discharge pipe goes outside where
there is no problem to connect or to
discharge it, this solution is OK for hot
country and normal cold temperature outside.
DRAINAGE HOLE (P8)
WALL BRACKET HOLES (P9)
P6, 7,8,9
Please note: If you are drilling the hole above
ground floor level, please ensure that an
area has been secured and while the holes
are drilled the outside area is supervised,
until drilling has been completed.

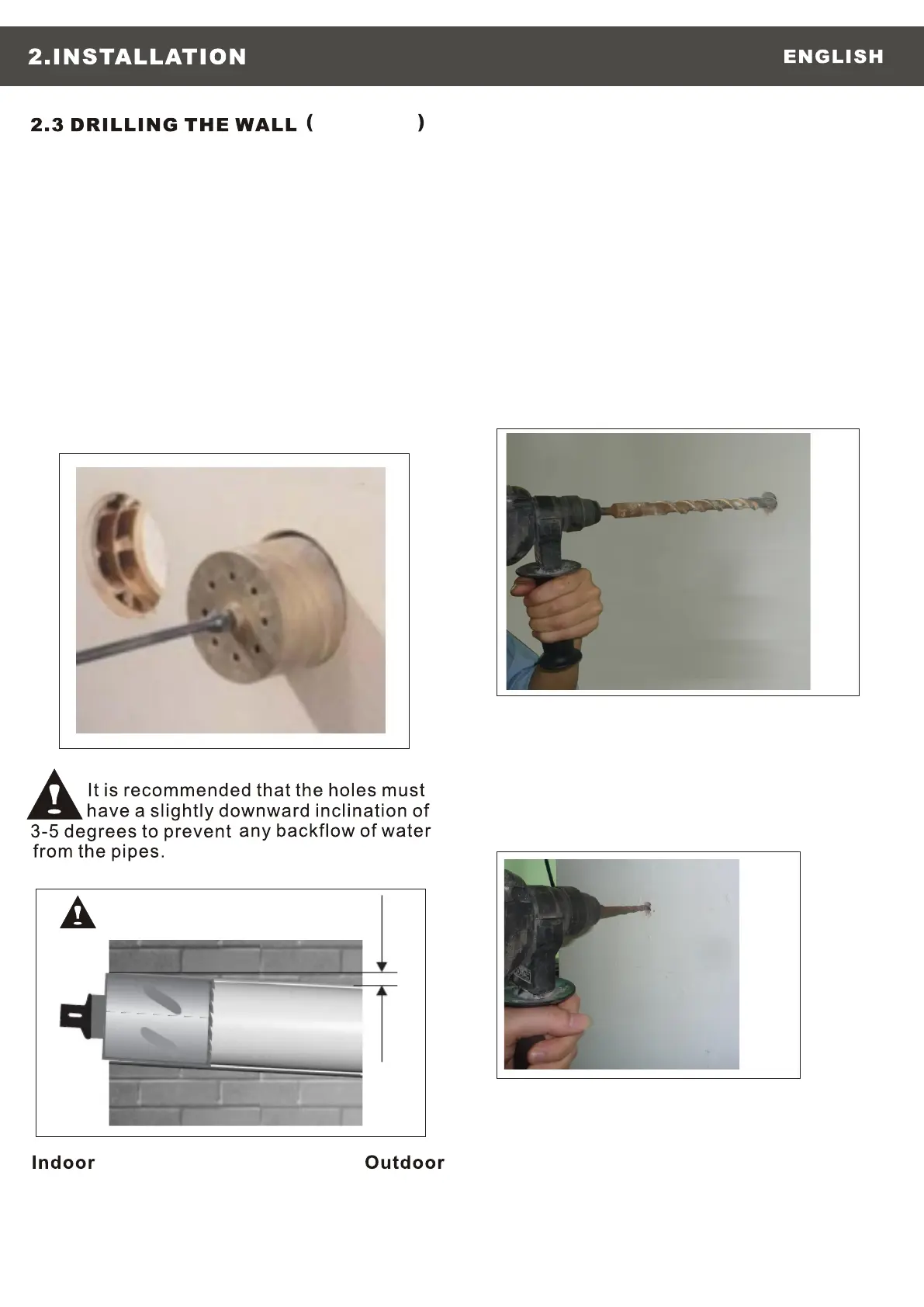

INTAKE AND OUTLET HOLES( P6)
This operation should be carried out using
the proper tools ( diamond tip or core borers
drills with high twisting torque and adjustable
rotation speed).
Find the holes center drilled before, use a
core boring head having a diameter of
200mm to drill the two holes for intake
an
d outlet the air.
P6
P8
P9
(See image P7)
Drill the holes for anchoring the fastening
bracket to the wall using preferably the 26
holes with 8mm diameter showed in black on
the paper template. As the unit is installed on
high wall,it is recommended that all the holes
should be fixed with anchor bolts.
30 KYOTO
