First Alert FA260RF - Page 6

6
Otherwise, continue with step 6.
Step Action Display
Enter [4] (Loop Functions). Enter the loop number (1-4).
Note:
The FA260RF is shipped with the loop functions pre-
programmed. Perform steps 6 through 10 only if it is necessary
to change any of the loop functions.
Loop 1 Close the FA260RF On-Board Relay for 2 sec.
Loop 2 1 (Disarm)
Loop 3 2 (Arm Away)
Loop 4 3 (Arm Stay)
See the Wireless Key Function Chart below for the choices.
Wireless Key Function Chart
Function Entry
Disarming 1
Arming Away 2
Arming Stay 3
Arming Maximum (Away Instant) 4
Arming Instant 7
Panic Alarm
Produces type of alarm [* & #]
programmed in control panel.
# + 99
Manually Start a Relay Action
# + 7
(FA142C)
# + 7 + n
(FA162C)
Manually Stop a Relay Action
# + 8
(FA142C)
# + 8 + n
(FA162C)
Activate Relay as Programmed in
Control
# + 71
(FA1220C, FA1220CV,
FA1340C)
Activate Relay as Programmed in
Control
# + 72
(FA1220C, FA1220CV,
FA1340C)
Activate Access Control Relay for
Partition
0
FA1220C, FA1220CV,
FA1340C)
n = Device Number programmed in FA162C to be controlled
6
Press the [
✳
] key.
Flashes "Ln."
Once the loop number is
entered, alternately flashes
"L" with the loop number and
the present function.

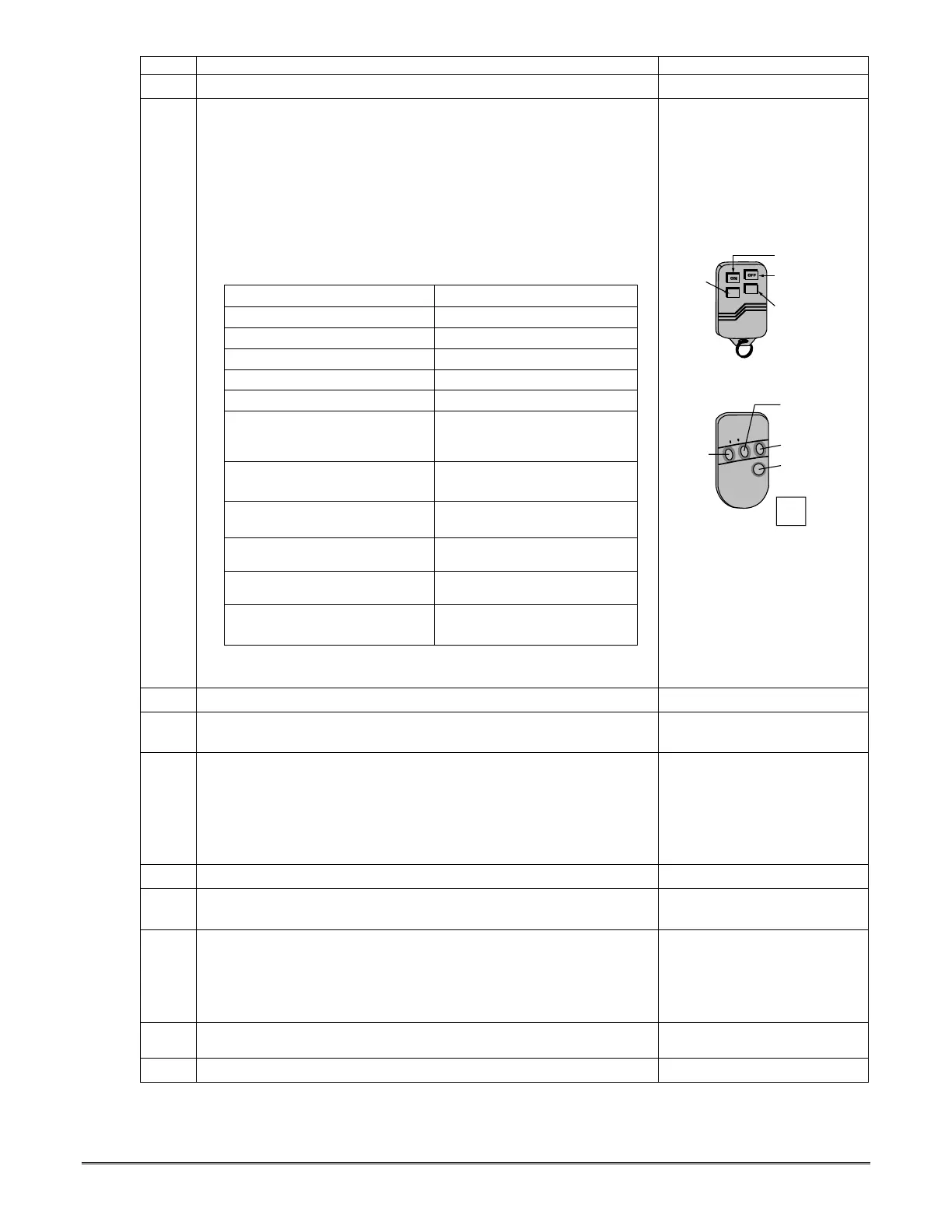

Default Loop Functions
5804
Loop 3
Arm AWAY
Loop 1
Close on-board relay
for 2 seconds
Loop 2
Disarm
Loop 4
Arm STAY
5804BD/5804BDV
Loop 3
Arm AWAY
Loop 1
Close on-board relay
for 2 seconds
Loop 2
Disarm
SET
HOUSE
CODE
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Loop 4
Arm STAY
7
Repeat step 6 for the rest of the loops of the wireless key.
8 To program a button on the wireless key to control the on-board
relay, enter [5] (On-Board Relay Assignment).
Flashes "o-."
9 Enter the loop number of the wireless key (1-4). Enter the relay
action (0 = no action; 1 = relay off; 2 = relay on; 3 = relay toggles on
and off; 4 = relay closes for 2 seconds).
Note:
The relay action must be "0" for UL installations.
Press the [
✳
] key.
Flashes “o” and the loop
number.
Once the action is entered,
displays “o” and alternately
flashes the loop number and
the relay action.
10
Repeat step 9 for the rest of the loops.
11
When all loops have been programmed for the wireless key, press
the [
✳
] key.
Flashes “d” followed by the
device number.
12 The FA260RF automatically displays the next available device
number (one that does not have a serial number).
If you want to program additional wireless keys, repeat steps 3
through 10. Otherwise, press the [
#
] key. This takes you back to the
main display, which alternately flashes “oo” and “- -.”
13
Enter [0] (High-Security Mode). To put the system into High-
Security mode, enter [1]. Enter [0] to disable
En
14
Press [
✳
] to exit the FA260RF Program mode.
Note:
Upon exiting the Program mode, the FA260RF alternately flashes "Ad," the 2-digit keypad address, and
the 2-digit receiver address. If either of these is incorrect, repeat steps 1 through 3 in the
Programming for an Installation Without Local Wireless Keys section.
