Installation instructions
Connecting water (Ice & Water models only)

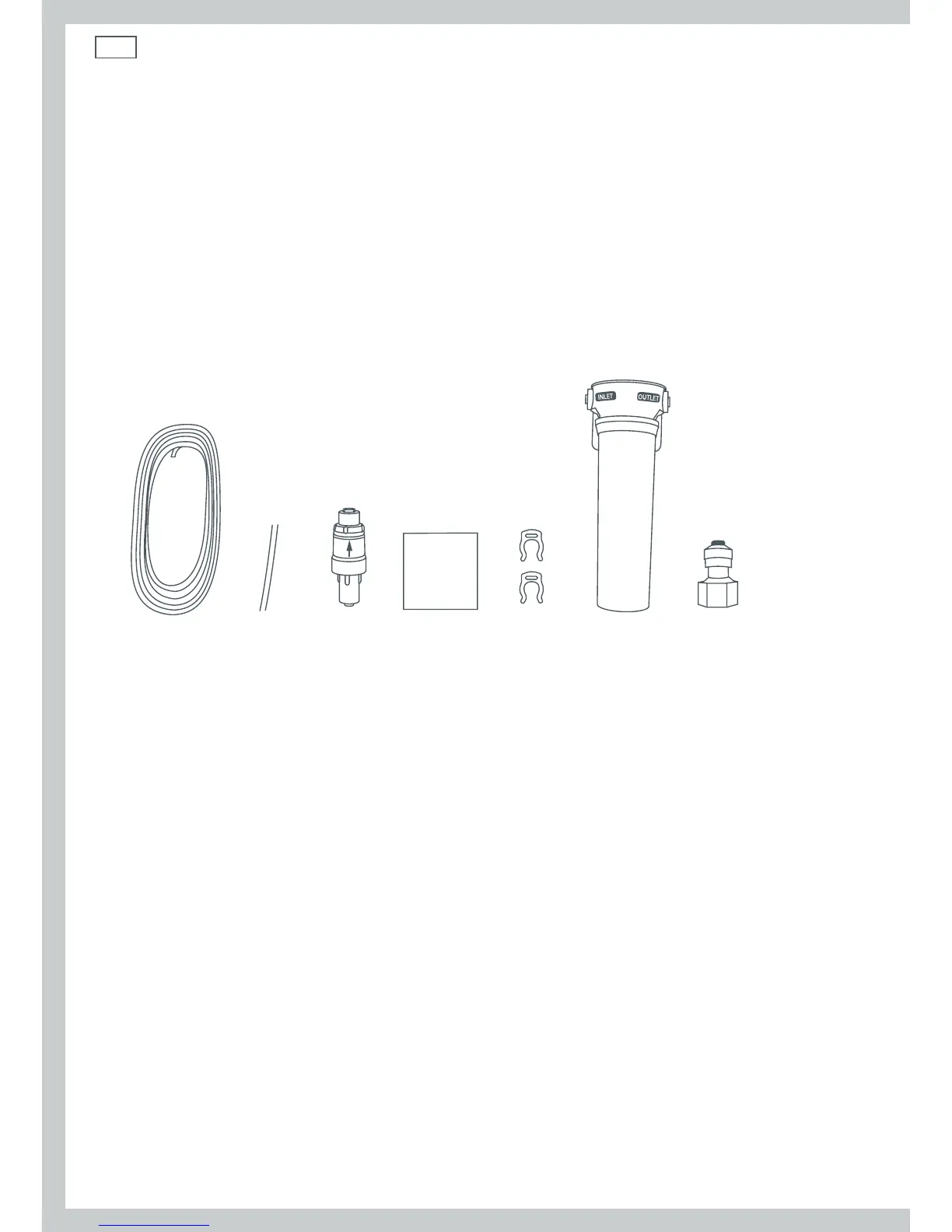

Contents of filter kit
1 1 x 4m (13ft) long x Ø6mm (¼”) tubing
2 1 x 200mm (8”) short Ø6mm (¼”) tubing
3 1 x pressure reducing valve (PRV)
4 1 x double sided foam
5 2 x locking keys
6 1 x water filter cartridge and head
7 1 x tap connection – 15 mm (½”) BSP
Water connection kit
1 2 3 4 5 6 7
Important!

It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. If the PRV is not fitted
to the connection line, the Ice & Water features may not function in some circumstances.

The water connection to your Ice & Water refrigerator must be installed by an authorised plumber
or Fisher & Paykel Authorised Service Agent.

The water connection instructions below are intended only for the professional installer.

The new tubings supplied with the refrigerator are to be used, old tubings from old Ice & Water
connections should not be used.

Replacement parts are available through Customer Care or online at www.fisherpaykel.com (this
service is available to selected markets only).
