Fisher & Paykel CleanSmart User Manual

5
Installation instructions

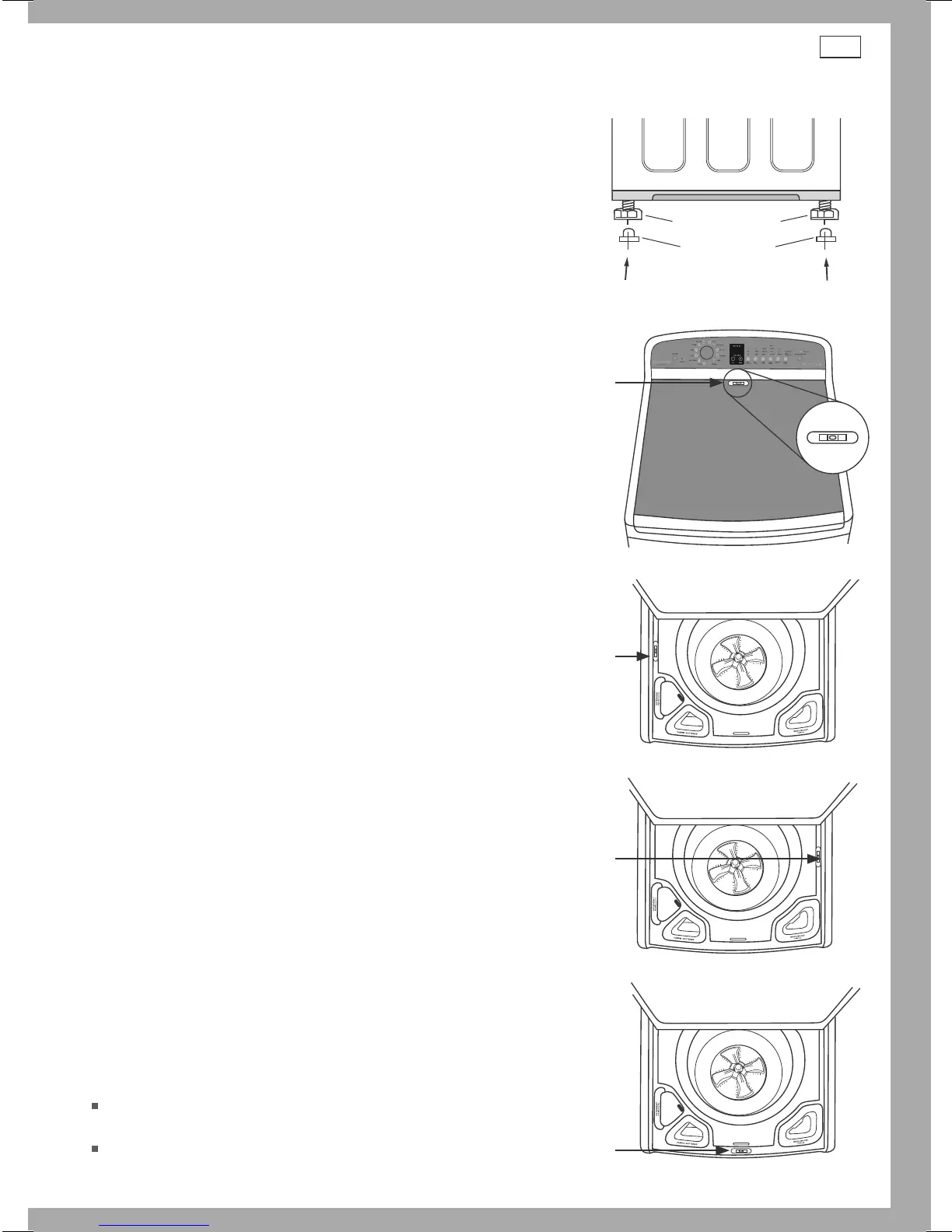

Fig.6 Levelling – Step 4
Spirit level
Spirit level
Fig.7 Levelling – Step 5
Fig.8 Levelling – Step 6
Spirit level
Adjustable feet
Rubber insert
Fig.4 Levelling – Step 1
Fig.5 Levelling – Step 3
Spirit level
Elbow
(machine) end
Levelling instructions
It is IMPORTANT to level the machine to ensure good
spin performance and effective detergent and fabric
softener dispensing.
A spirit level is provided with your machine. Use this
to level your machine, always placing it on a clean,
flat surface. The machine is level when the bubble
sits in the centre, within the two lines.
Your washer is equipped with self-locking feet to
ensure they do not move once you have levelled
your machine. To adjust the feet, pull down then
twist to move them up or down.
Note: after levelling, the corners of the washer should
be clear of the floor and the machine must not rock
in any direction.
1
If not already installed, fit the rubber inserts into
all 4 feet on the base of the machine.
2
Move the machine to its final position using the top
corners to manoeuvre the product into place (do
not push on the centre front of the machine). We
recommend a minimum clearance of 20 mm each
side and 50 mm at the rear of the machine.
3
With the lid closed, place the spirit level at the centre
back of the lid (near the control panel). Pull the
machine out and adjust the rear feet (wind down) until
the machine is level side to side when in position.
4
Open the lid. Place spirit level on the flat surface on the
left side, inline with the centre of the bowl. Adjust the
front left foot (wind down) until the machine is level.
5
Move the spirit level to the right side, in line with
the centre of the bowl. Adjust the front right foot
(wind down) until the machine is level, and does not
rock. There should be equal weight on both front
feet so that neither can be turned by hand when the
machine is in position.
6
Place the spirit level at the centre front of the topdeck,
forward of the lid lock slot. Check the machine is level.
Move the spirit level around to all positions once
more, checking the machine is level in all areas.
Check the machine does not rock side to side, front
to back, or corner to corner.
Important!
Keep your spirit level for the next time you move or
reposition your washer.
If moving or transporting your washer in the future,
ensure you tape the lid down beforehand.
