Fisher & Paykel DD24DHTI Installation Guide

14
x4
(x2)

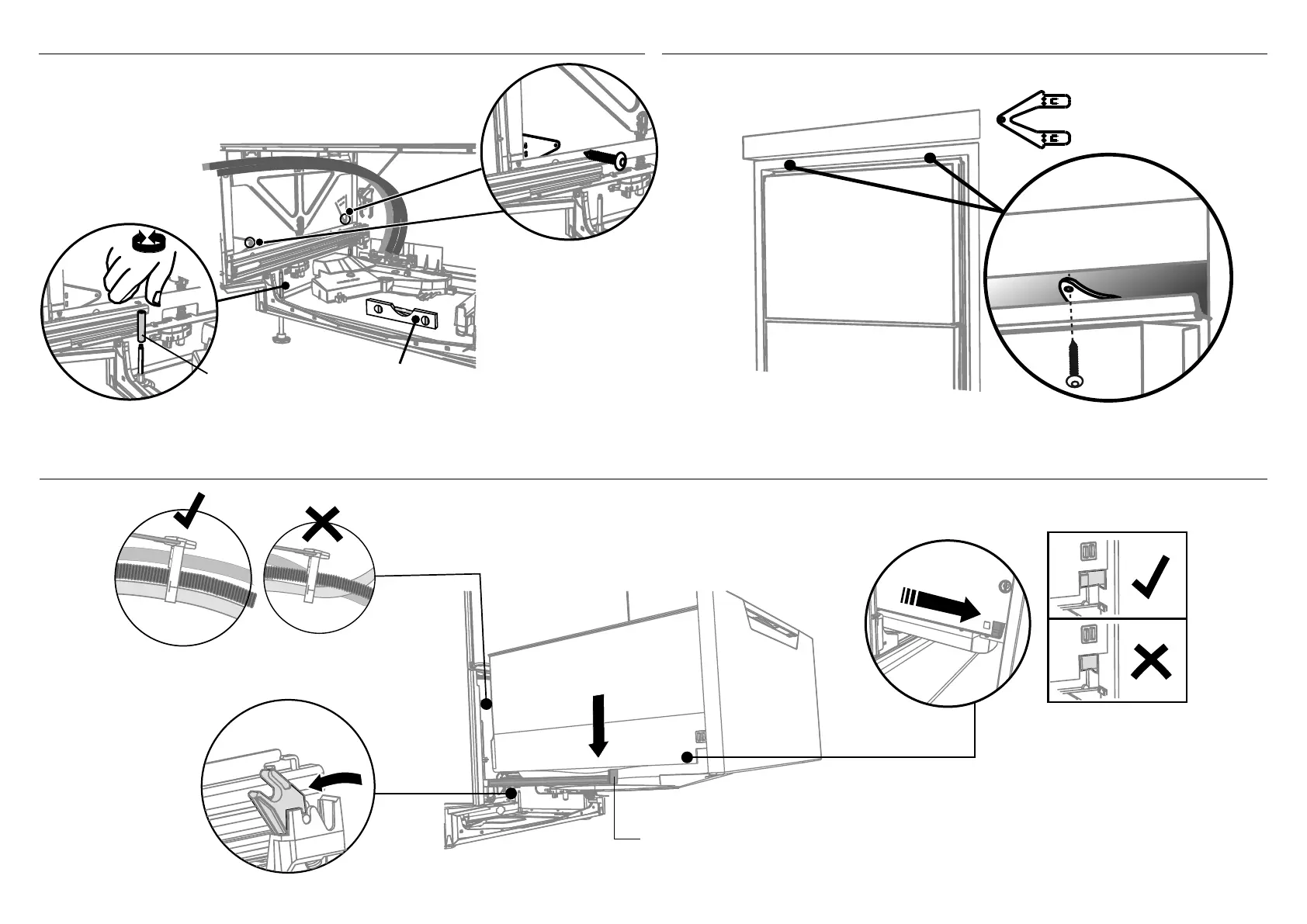

!2-B SECURE TO THE CABINETRY ON THE SIDES !3-B OPTIONALLY SECURE TO THE CABINETRY ABOVE
Secure using two pairs
of formed brackets.
Repeat on the other
side of the chassis.
For further adjustment,
using the most appropriate
length Hexagonal socket
supplied, fully extend
levelling feet up to
required distance by hand.
Ensure product is level and
aligning with cabinetry.
Hexagonal
socket
The top mounting
brackets will only
bend upwards a
maximum of 3⁄8”
(10 mm).
!4-B REFIT THE DRAWER ONTO THE RUNNERS
1
2
3
4
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate counterclockwise the
drawer back onto the drawer runners
on either side.
Pull the release tabs forward on both
sides 4” (100mm). Ensure the tabs are
fully pulled forward and click into place.
Release tab
4” (100mm)
