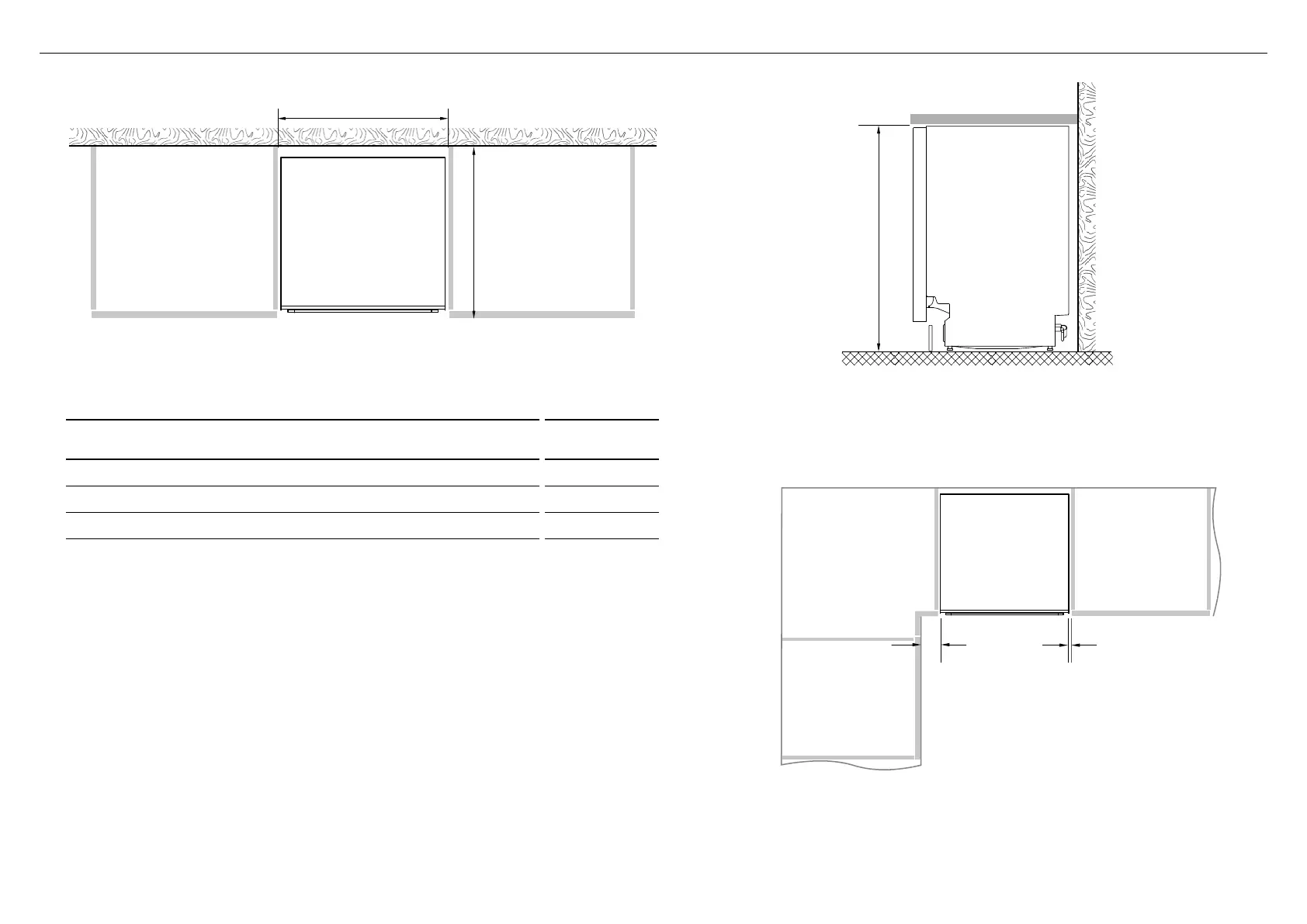

6 CABINETRY DIMENSIONS
Minimum clearances from adjacent cabinetry
min. 13 mm
clearance
from a corner
cupboard
min. 2 mm
clearance
to adjacent
cupboard door
PROFILE
PLAN
CABINETRY DIMENSIONS MM
J
Inside width of cavity 600 - 610
K
Inside depth of cavity min. 574
L
Inside height of cavity* 820 - 880
* depending on adjustment of levelling feet
