INSTALLATION INSTRUCTIONS
Draining
Drain hose placement in a stand pipe or tub
1
To guide the drain hose over the tub or
standpipe the hose guide must be fitted to
the drain hose. The height of the standpipe
or tub should be between 800–1200mm.
2
Secure the hose guide so it cannot become
dislodged from the standpipe or tub.
IMPORTANT!
If the drain hose is placed on the ground or
if the standpipe or tub is less than 800mm
high, the washing machine will continuously
drain while being filled (siphon).
Regularly check that your standpipe or tub
is free from lint or other obstructions, which
may affect how your machine works or may
cause flooding.
Attaching drain hose to spigot
1
Guide drain hose through hose guide
2
Secure hose guide to back wall of cupboard
using a screw. The height of the drain hose
should be between 500–800mm from
ground level.
3
Attach drain hose to spigot and secure using
a hose clamp ensuring the blanking insert is
cleared from spigot.
4
Check for leaks.
The drain hose should be checked from time
to time and replaced if any damage (egwear,
cuts, bulges, kinks, leaks, etc) is found. Do
not bend the drain hose sharply, as this may
cause it to split.
In multi-storey apartments or any upper
floor, the machine should be installed on a
floor equipped with a drain.
Draining must comply with local by-laws.

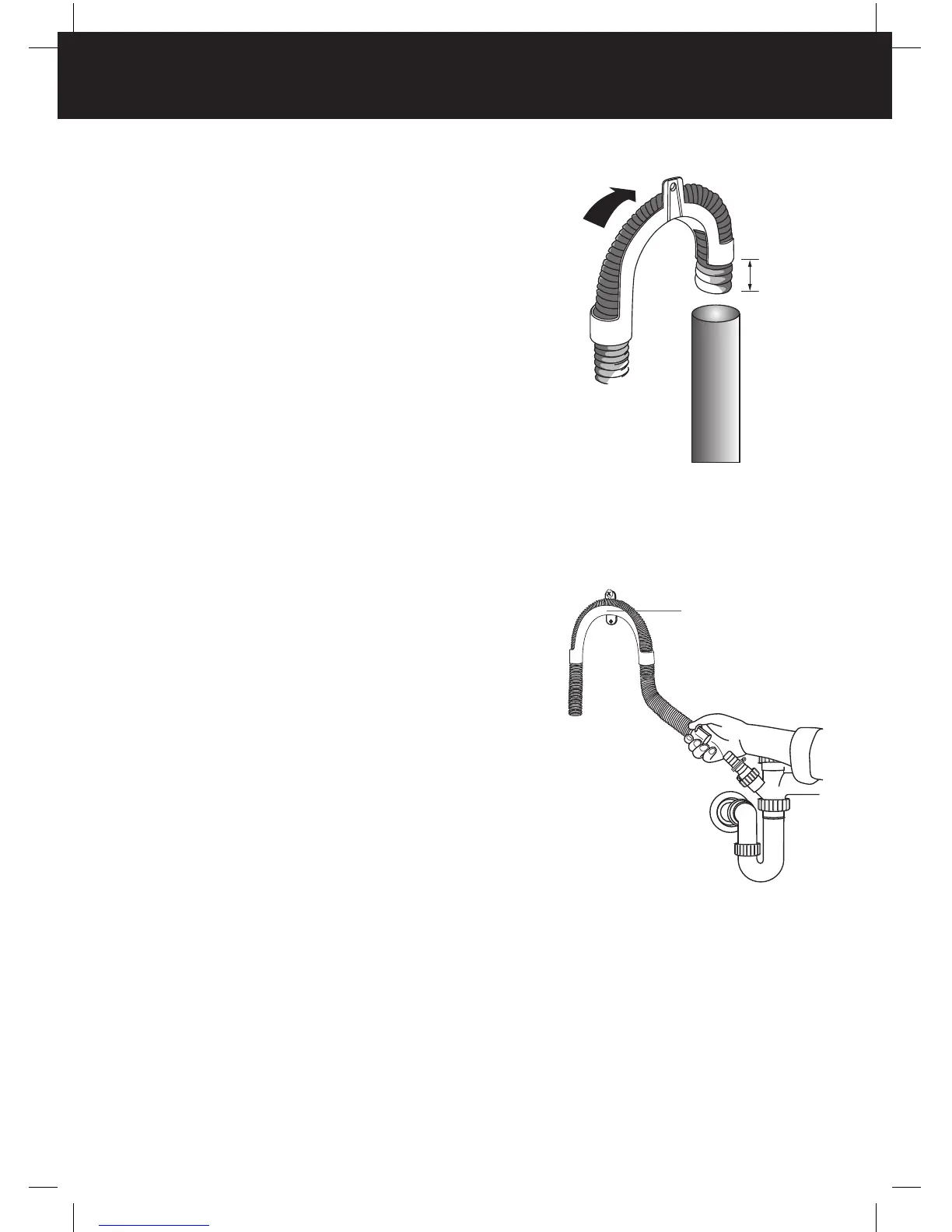

Fitting the drain hose guide
(20 mm)
maximum
Standpipe 800 – 1200 mm
Pull hose
through
guide
Attaching drain hose to spigot
Height 500 – 800 mm
from ground
