INSTALLATION GUIDE
12
Draining
20mm
max.
Place the drain hose in a tub or standpipe
Attach drain hose to spigot
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain. Draining must comply with local by-laws.

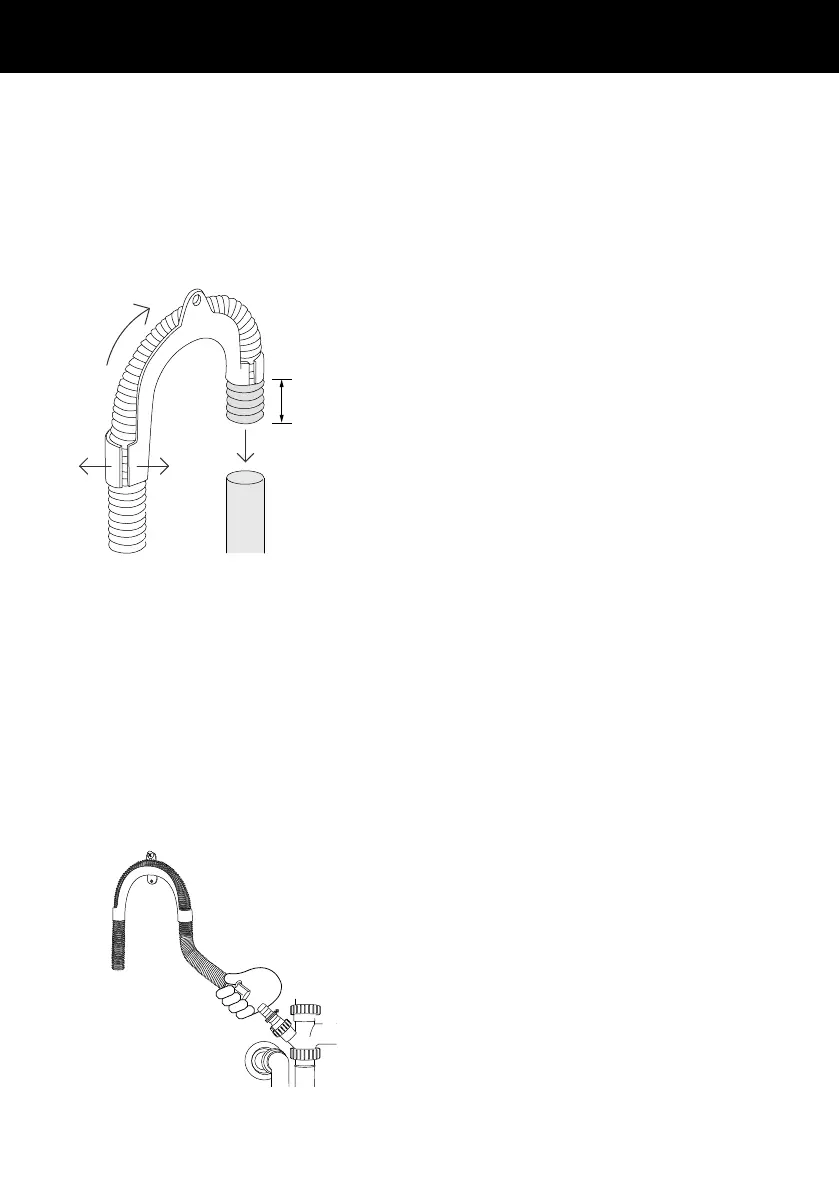

1 Flex the guide apart and pull the hose
through the guide.
2 Ensure a maximum of 20mm of hose is
left exposed at the end.
3 Secure the hose guide to prevent it
dislodging from the standpipe or tub.
If the drain hose is placed on the ground or if the tub or standpipe is less than 600mm
high, the washing machine will continuously drain (siphon) while being filled.
Tub or standpipe height should be a minimum of 600mm.
Regularly check that your tub or standpipe is free from lint or other obstructions. This may
affect operation or cause flooding.
The hose guide is used to hold the drain hose high enough to prevent continuous draining
(siphoning).
1 Flex the guide apart and pull the hose
through the guide.
2 Secure the hose guide to a wall or the
back wall of the cupboard using a screw.
3 Drill out the blanking insert from spigot to
ensure the washer can drain correctly.
4 Attach drain hose to spigot and secure
using a hose clamp.
5 Check for leaks.
The hose guide is used to hold the drain hose over the tub or standpipe.
