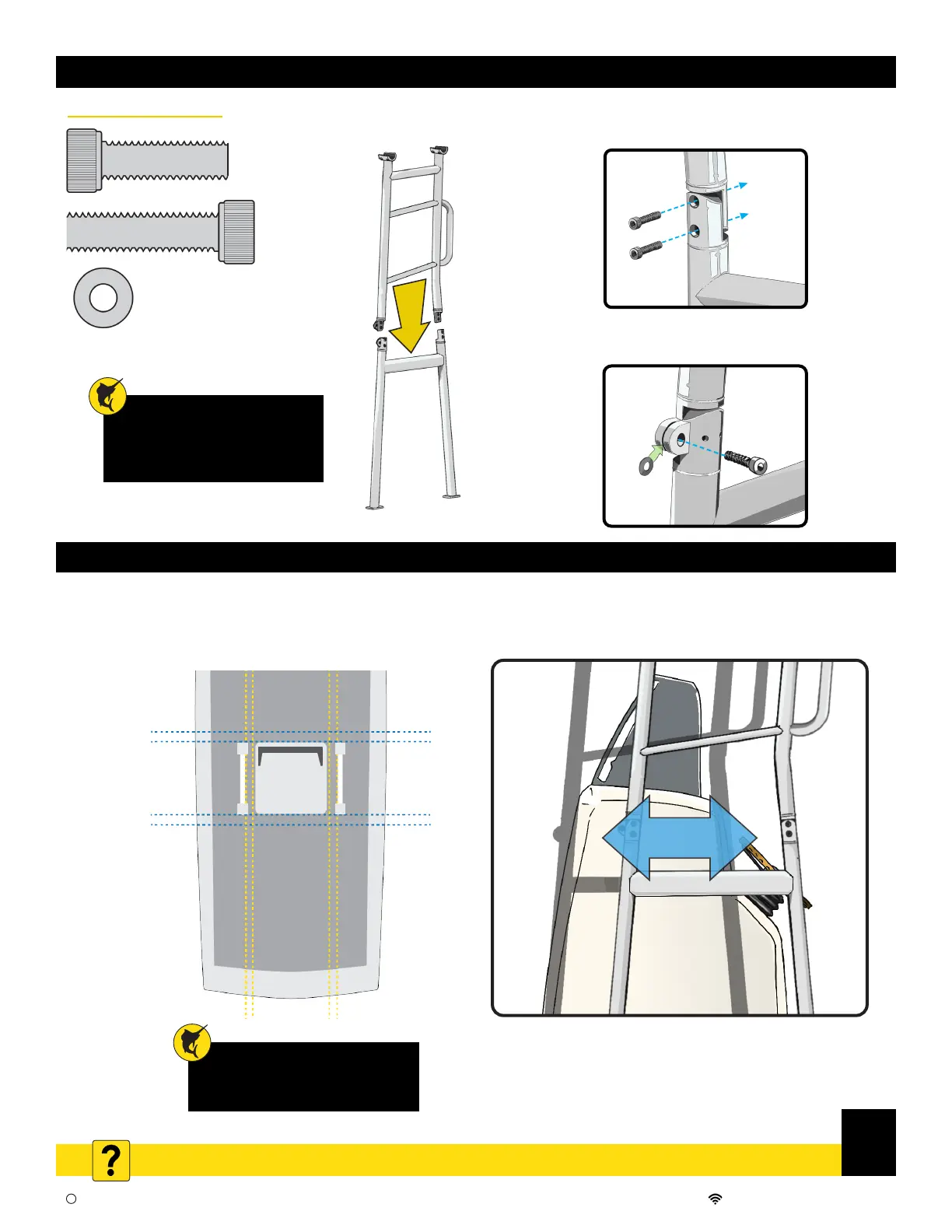

Step 1: Assemble Side Sections
1.
1.
2.
3.
Hardware Needed:
Step 2: Positioning The Assembled Legs
Attach leg sections together with
the hinge facing the bow of the boat.
It is important to understand the placement of
the legs will need to be square and even with the
opposite side of the console.
Insert the metal washer followed by the
hinge bolt into the hinge.
Insert the M10x35 bolts to connect the
top and lower sections.
PRO TIP: Get the bolts
snug in place first, then come
back to tighten down fully
after each step.
PRO TIP: It is recommended
to place the leg 1”-7” away from
the sides of the console.
3
Hinge Bolt
Canopy & Leg Bolts
Metal
Washers
