INLET
INLET
INLET
RETURN
Plug all unused
fuel ports.

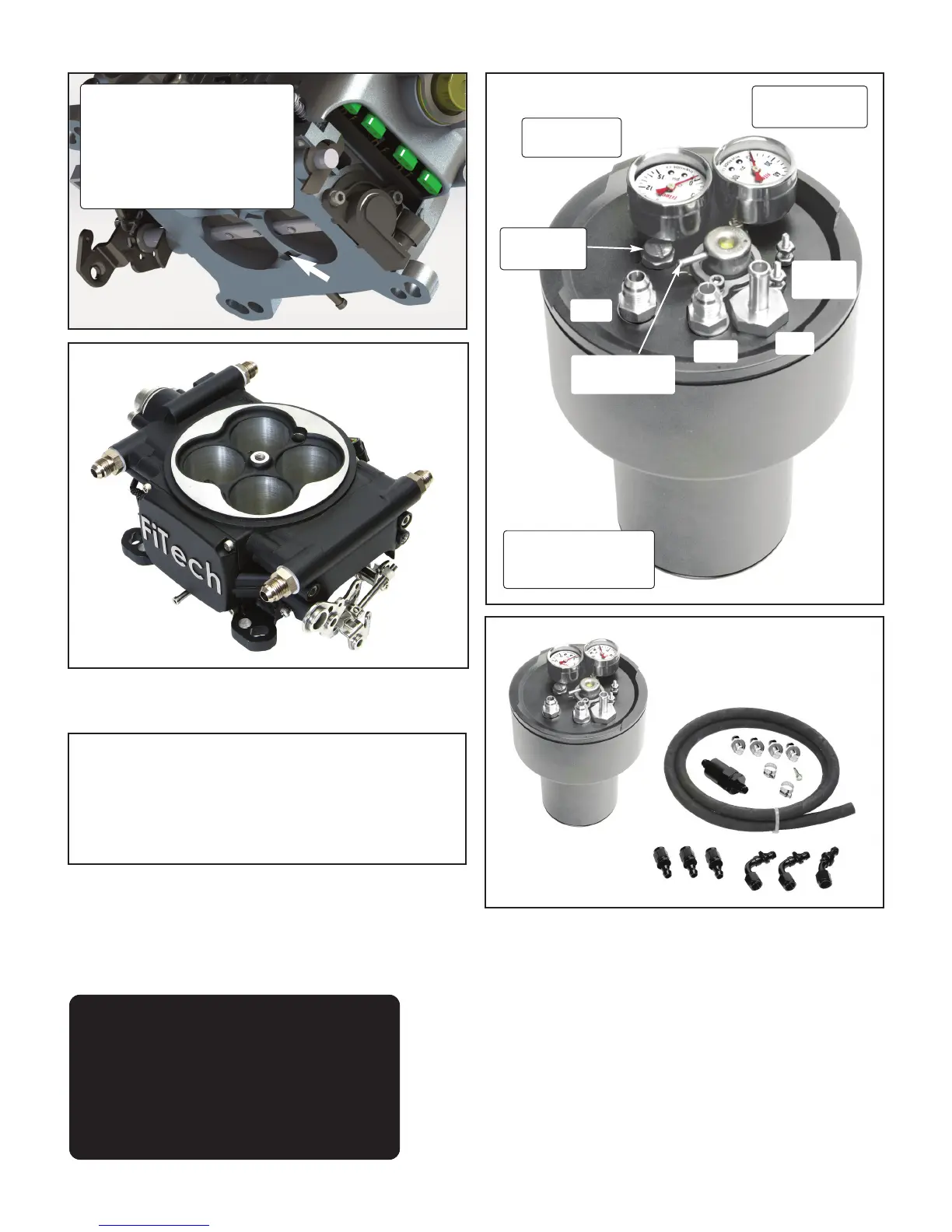

Figure 4
LEFT - The FiTech Go EFI Throttle Body has (3) Inlet Ports and (1) Return
Port. The Return Port is plugged when using the Fuel Command Center.
Figure 5
Complete Command
Center Kit #40003 shown.
R
oots type Superchargers Only:
Plug the indicated vacuum port with a #10-32
set screw which will thread directly into the
hole. Use Red Loctite to seal the threads. Con-
n
ect boost reference hose to 3/16" nipple "A"
F
or Unblown or Blow-through Only:
Use nipple for boost gauge or boost reference.
U
se zip-tie to retain hose on nipple.
A
Figure 2
Inlet
Outlet
Electrical
Terminals
V
ent
0
-15 Inlet Fuel
Pressure Gauge
Fuel Pressure
Regulator
Sump Tank Component of
Fuel Command Center
Fuel Delivery System
Float Adjust-
ment Screw
0-100 Outlet Fuel
Pressure Gauge
Figure 3
IMPORTANT NOTE: The fuel tank on your ve-
hicle must be vented to avoid pressure build-
ing up inside the tank. Do not attempt to
install and operate an EFI system without a
properly vented fuel tank.
