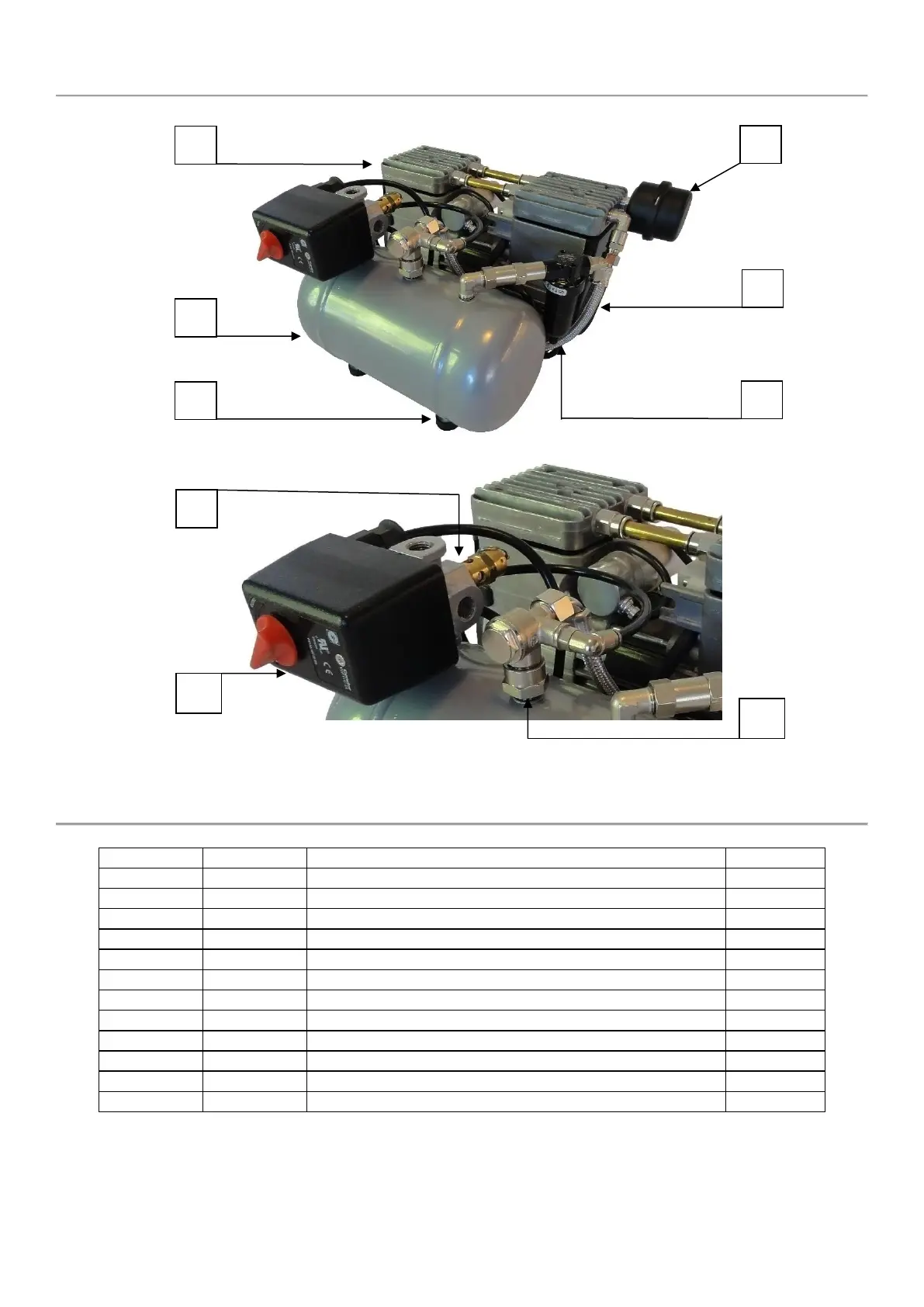

Tegninger & Billeder / Bilder & illustrationer / Drawings & Pictures – A62.4
Reservedele / Reservdelslista / Spare Parts:
Ref. no.
Part no.
Description
Qty
1
10111010
KK15-A062 230V IP20, 50Hz
1
2
11121513
Receiver 4 L – Grey
1
3
14511029
Pressure switch MDR-1
1
4 / Fig. 4
E024000359
Non Return valve 3/8”
1
14521007
Unloader valve (mounted on pressure switch)
1
5
17131100
Filter regulator 5 um with auto drain
1
17131153
Service kit for 5um Filter
1
6
17503030
Flex hose 3/8” elbow – 1/4” straight – length 33cm
1
7
10131025
Suction filter - complete
1
Fig. 6
17131198
Filter element
1
8
10131021
Vibration dampers for compressor (set of 4pcs)
1
9 / Fig. 3
17131051
Safety valve 10bar
1
1
7
2
6
5
8
3
9
4
