CONNECTION TO THE MODULAR SYSTEM
The base module FIRE is delivered with a
connected ribbon cable for the Doepfer bus.
The wire marked red or blue is -12 volts.
It is important to pay attention to the correct
polarity when connecting. If the module has
accidentally been polarized incorrectly, pro-
tective diodes prevent the module from being
destroyed immediately (however, it cannot be
ruled out that damage will still occur).
Therefore caution: Check the connection
several times before switching on for the first
time!
The current consumption of the module is
+210mA / - 70mA on average, but can reach
peaks of up to +230mA / -70mA!

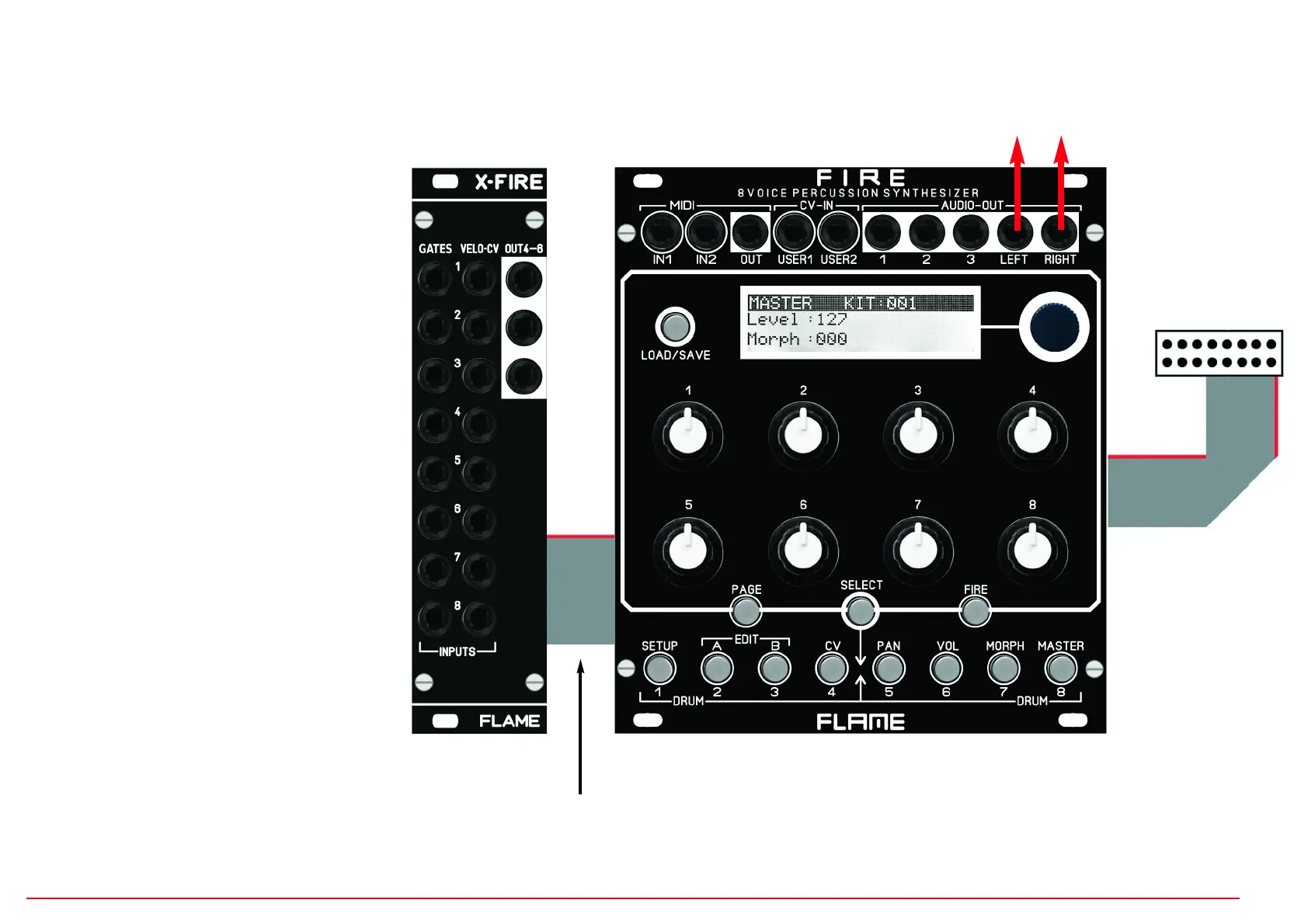

The XFIRE add-on module is connected to the basic module using the
approx. 60cm long ribbon cable supplied. This additional module does
not require an extra power supply.
Stereo AUDIO OUT (Modular level 10Vpp)
-12V
Ground
Ground
Ground
+12V
