5
CONNECTION TO THE MODULAR SYSTEM

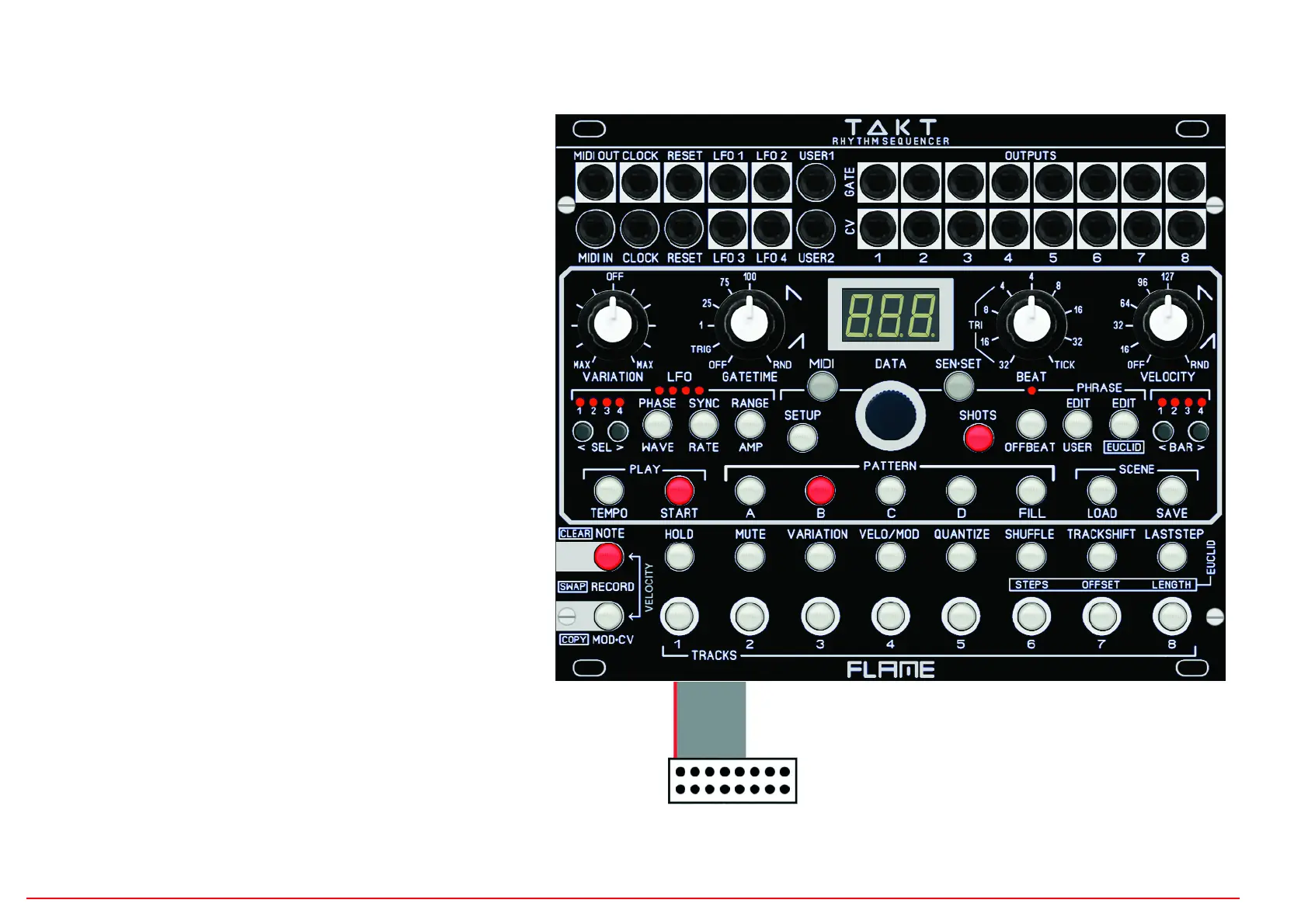

The module is delivered with a connected rib-
bon cable for the Doepfer Buss. The colored
wire indicates -12 volts.
It is important to pay attention to the correct
polarity when connecting. If the module is
accidentally polarized incorrectly, protective
diodes prevent the module from being
destroyed immediately (but it cannot be ruled
out that damage will still occur).
Therefore caution: Check the connection
several times before switching on for the first
time!
The current consumption of the module is up
to +130mA / - 30mA !
-12V
Ground
Ground
Ground
+12V
