Flieks MF291663 - Step 6: Frame #6 Assembly; Step 7: Frame #7 Assembly

D 1PC
4*59
A 4PCS
1/4*60
NOTE
:
In this step, DO NOT tighten any bolt until you connect all part together.
D 1PC
4*59
PAGE 8 OF 11
E 2 SET
STEP 7 : Following below illustration Assembly Frame #7.
Using hardware #E connect Frame #6 with Wall to complete .
NOTE: Tighten all step before using. Thank you.
A
A*4
E
E

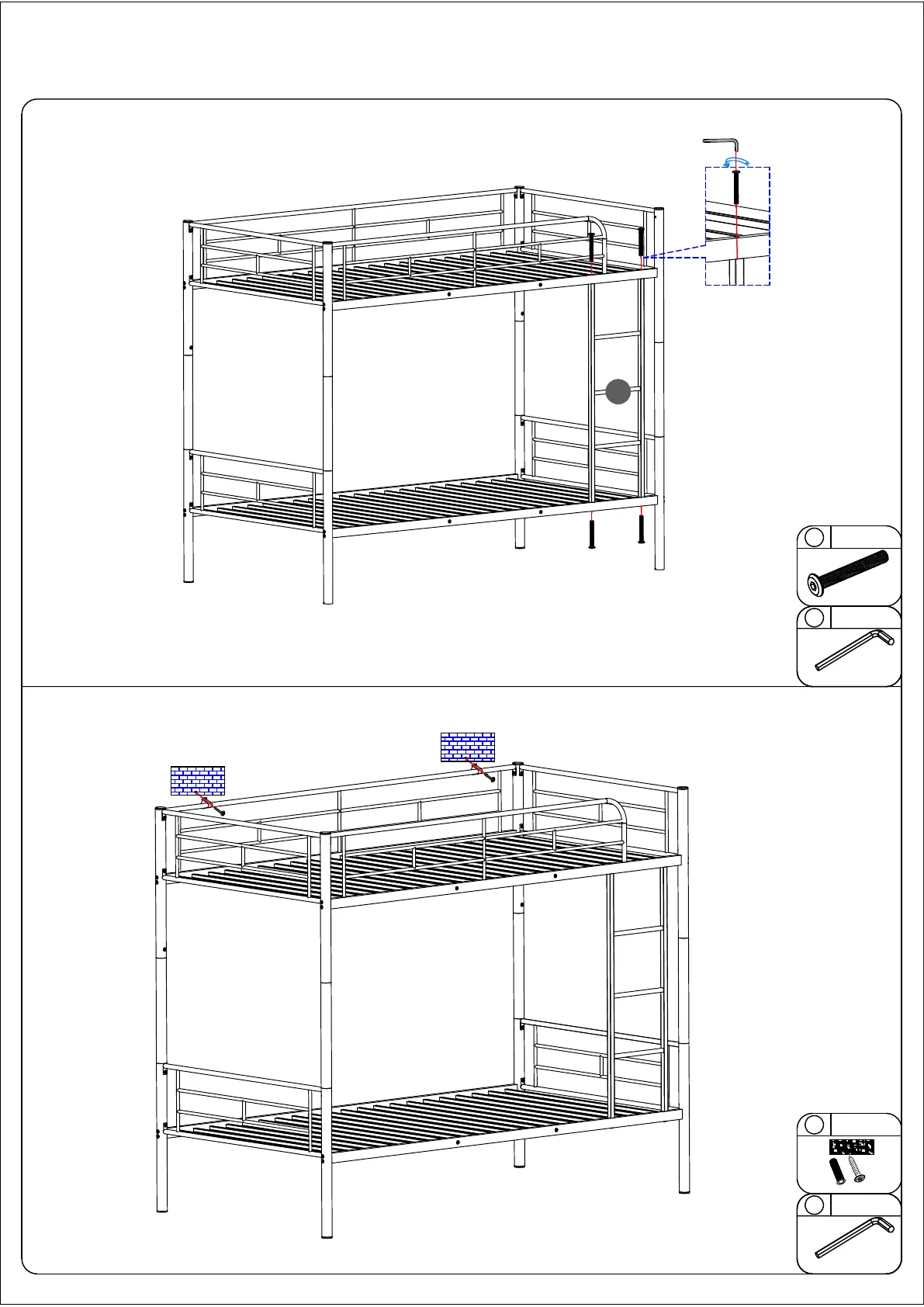

STEP 6 : Following below illustration Assembly Frame #6.
Using hardware #A connect Frame #5 with #10 to complete Frame #6.
10
Wall
Wall
OPTION A FINAL
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
