Flotec FP6121-01 User Manual

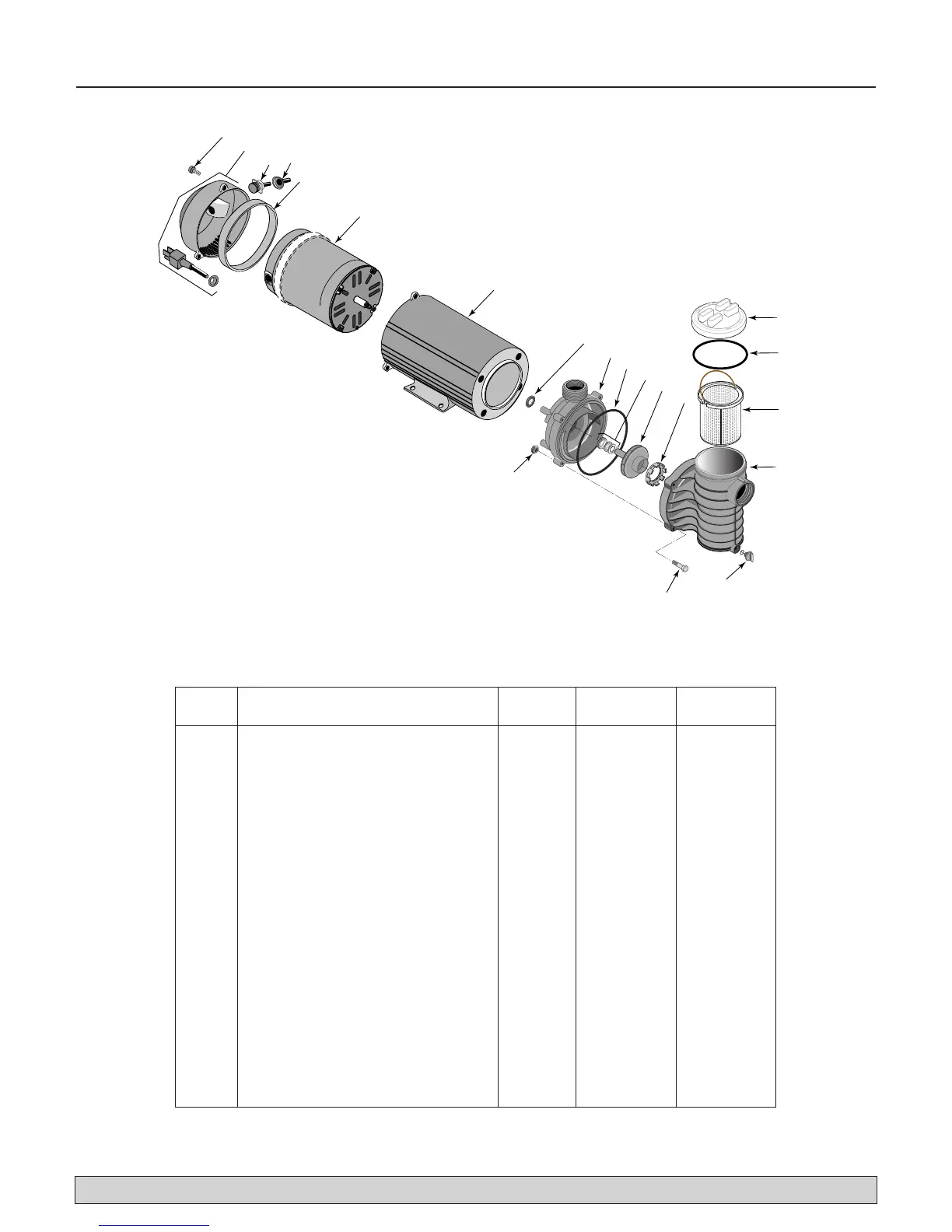

Repair Parts 11
For parts or assistance, call Flotec Customer Service at 1-800-365-6832
14
6
8
12
13
10
9
15
16
18
11
D
O
N
O
T
O
V
E
R
T
I
G
H
T
E
N
19
20
3345 1198 CAN
1
2
3
4
5
7
17
Key Part No. FPC6131 FP6141
No. Description Used 1 HP 1-1/2 HP
1 End Cap Screw 3 37337-0085 37337-0085
2 End Cap and Cord Assembly 1 17190-0026 17190-0026
3 Toggle Switch 1 16920-0511 16920-0511
4 Toggle Switch Boot 1 32800-0107 32800-0107
5 Baffle Ring 1 17290-0004 17290-0004
6 Motor 1 AS901EL AS901SFL
7 Motor Cover 1 17190-0021 17190-0021
8 Slinger 1 17351-0009 17351-0009
9 Seal Plate 1 17500-0001 17500-0001
10 Seal Plate O-Ring 1 35505-1438 35505-1438
11 Shaft Seal 1 37400-0027 37400-0027
12 Impeller 1 17301-0112 17301-0112
13 Floating Wear Ring 1 17500-0004 17500-0004
14 Trap Lid 1 17500-0003 17500-0003
15 Trap Lid O-Ring 1 35505-1437 35505-1437
16 Trap Basket 1 17350-0100 17350-0100
17 Trap Body 1 17500-0002 17500-0002
18 Drain Plug with O-Ring 1 U178-920P U178-920P
19 Hex Head Bolt, 1/4-20x1-3/4" 4 30787-0005 30787-0005
20 Hex Nut 4 35402-0071 35402-0071
• Hardware Kit (2 Bolts, 2 Washers) 1 17290-0001 17290-0001
• Warning Tag 1 61002-0013 61002-0013
• Caution Tag 1 C63-12 C63-12
• Decal - “GFCI Required” 1 U27-558 U27-558
Repair Parts List
• Not illustrated.
For complete suction trap order Pkg. 115.
