5) Place left front section of tailpipe #16542S into position over the rear axle and slide the hanger
on the pipe into the factory rubber mount on the vehicle while sliding into the left muffler outlet. Then
place supplied clamp over the back of the rear section. Then place left rear section tailpipe into the
front section tailpipe. Connect the hanger welded to the rear of the pipe into the rubber hanger
#HA168, installed in step 3. Tighten the clamps on both pipes enough to hold but still allow for
adjustment.
6) Slide the side exit pipes #16547S or the rear exit pipes #16546S onto the ends of both over
axle pipes and then place a 2 ½” clamp onto these slip-fit connections. Tighten enough to hold but
still allow for adjustment. Place the two stainless tips #ST461 onto the exit pipes and tighten them
enough to hold in position. Rotate the exit pipes and tips to the desired distance from the body or
bumper, so that the angle cut on the tips are in the desired location. The exit pipes have been left
long enough to allow for adjustment, they may need to be trimmed to get the desired fit.
7) Adjust the position of all pipes and muffler and tailpipe to provide a satisfactory fit. Maintain a
minimum of 3/4” clearance around all parts of the system; while keeping suspension travel and
vibration in mind.

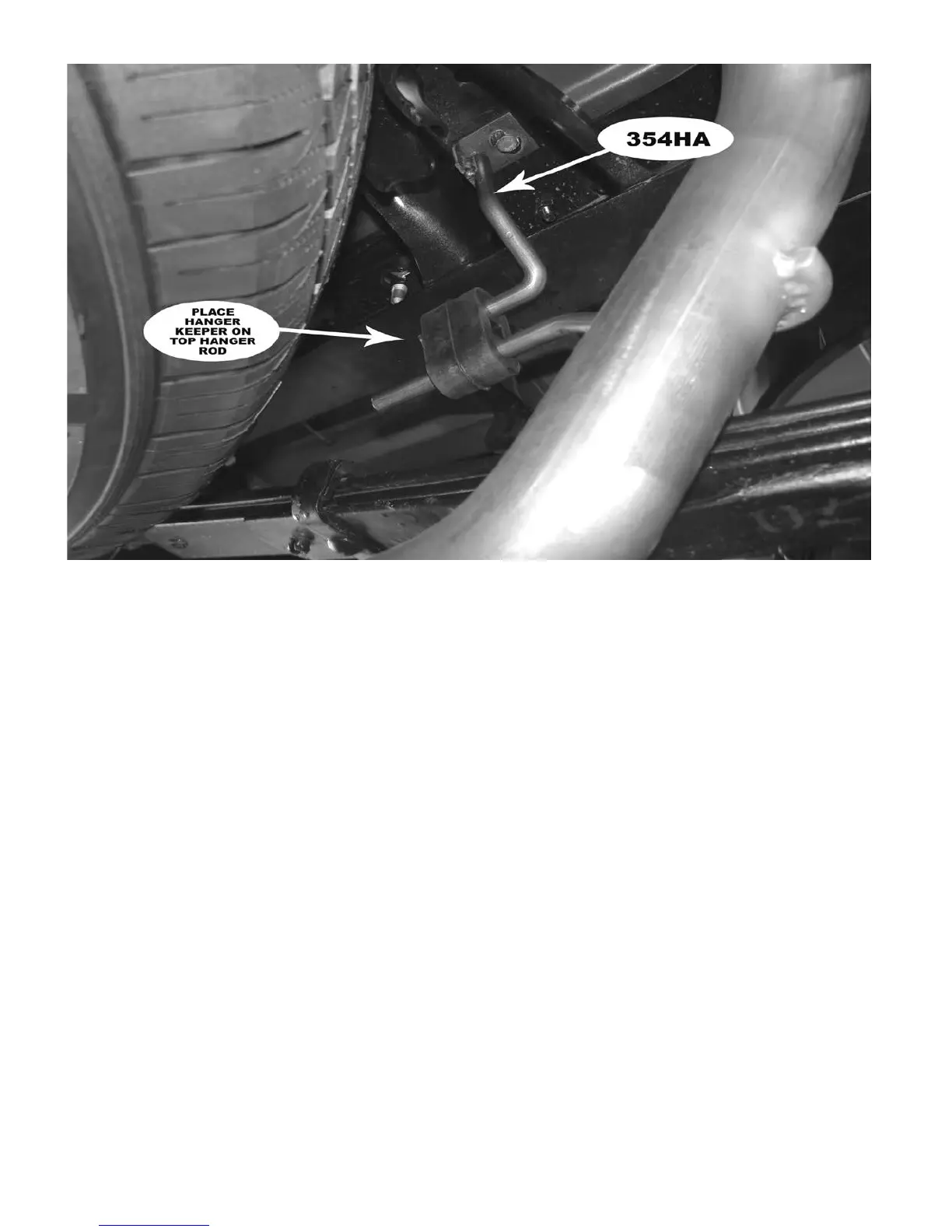

8) Tighten down all clamped connections securely. After the system is secure, place the supplied
½" hanger keepers onto the end of the left rear upper frame hanger #354HA; slide it up to the rubber
mount to firmly hold the system in place.
9) For a more secure installation, we highly recommend welding all slip-fit connections.
