Multifunction Calibrator
Fuse Repla
cement
13
Table 4. Replacemen
t Fuses
Line Voltage Range
Fuse Description
Fluke Part Number
100 V – 120 V
T 3 A 250 V
109280
220 V – 240 V
T 1.5 A 250 V
109231
115V
115
V
1
1
5
V
1
1
5
V
2
3
0
V
P
RSR
1
2
3
4
hhp003.eps

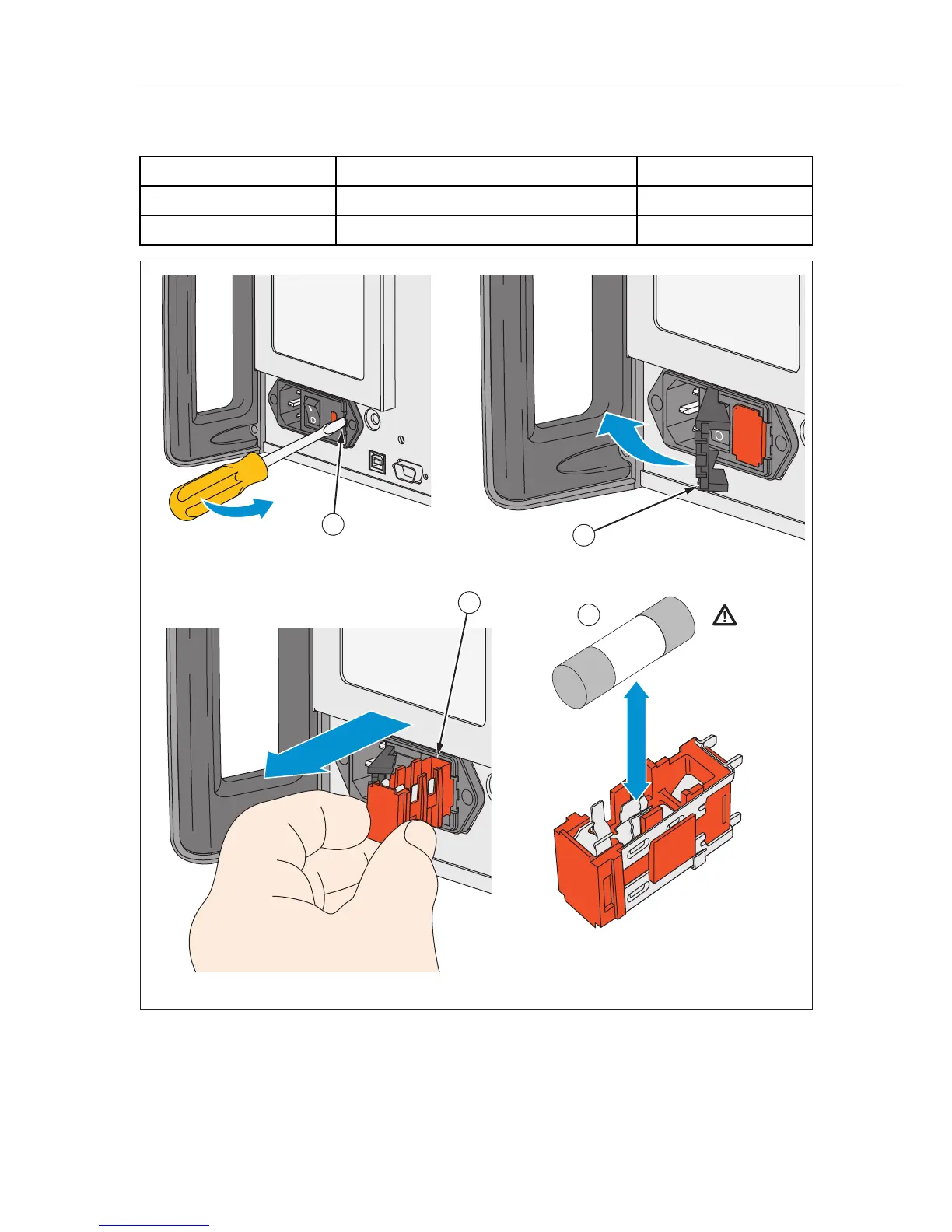

Figure 1. Access the Fu
se
22
24
Table of Contents
Table of Contents
5
Introduction
11
Safety Information
13
Symbols
14
How to Contact Fluke Calibration
15
Instruction Manuals
15
Wideband AC Voltage Module (Option 5730A/03 or 5730A/05)
15
Auxiliary Amplifiers
16
5725A Amplifier
16
52120A Amplifier
17
Support Equipment and Services
17
732B Direct Voltage Reference Standard
17
732B-200 Direct Volt Maintenance Program (USA Only)
18
742A Series Resistance Standards
18
Wideband AC Module (Option 5730A/03 or 5730A/05) Calibration Support
18
The Components of the Calibrator
18
5730A Calibration
19
The Artifact Calibration Process
19
Establish Traceability
20
Calibration Reports
20
Range Adjustment
20
DC Zeros
20
Unpack and Inspect the Calibrator
21
Placement and Rack Mounting
21
Cooling Considerations
22
Fuse Replacement
22
Replacement Fuses
23
Clean the Air Filter
24
Front-Panel Features
25
Clean the Exterior
25
Connect to Mains Power
25
Connect a 5725A Amplifier
25
Connect a 52120A Amplifier
25
Front-Panel Features
26
Rear-Panel Features
30
General Specifications
32
Electrical Specifications
34
AC Voltage Specifications
35
Resistance Specifications
41
DC Current Specifications
45
AC Current Specifications
47
Wideband AC Voltage (Option 5730A/03 and 5730A/05) Specifications (99 % Confidence Level)
50
52120A Specifications When Operated with the 5730A
51
52120A Electrical Performance Limits
52
Operated Within 5730A Control Loop (All Current Ranges)
52
Coverage Factor K=2.58 (99 % Confidence Level)
52
Coverage Factor K=2.00 (95 % Confidence Level)
53
52120A/COIL 3 Ka 25-Turn Coil
54
52120A/COIL 6 Ka 50-Turn Coil
54
