DISTORTION
INTRODUCTION
1-1.

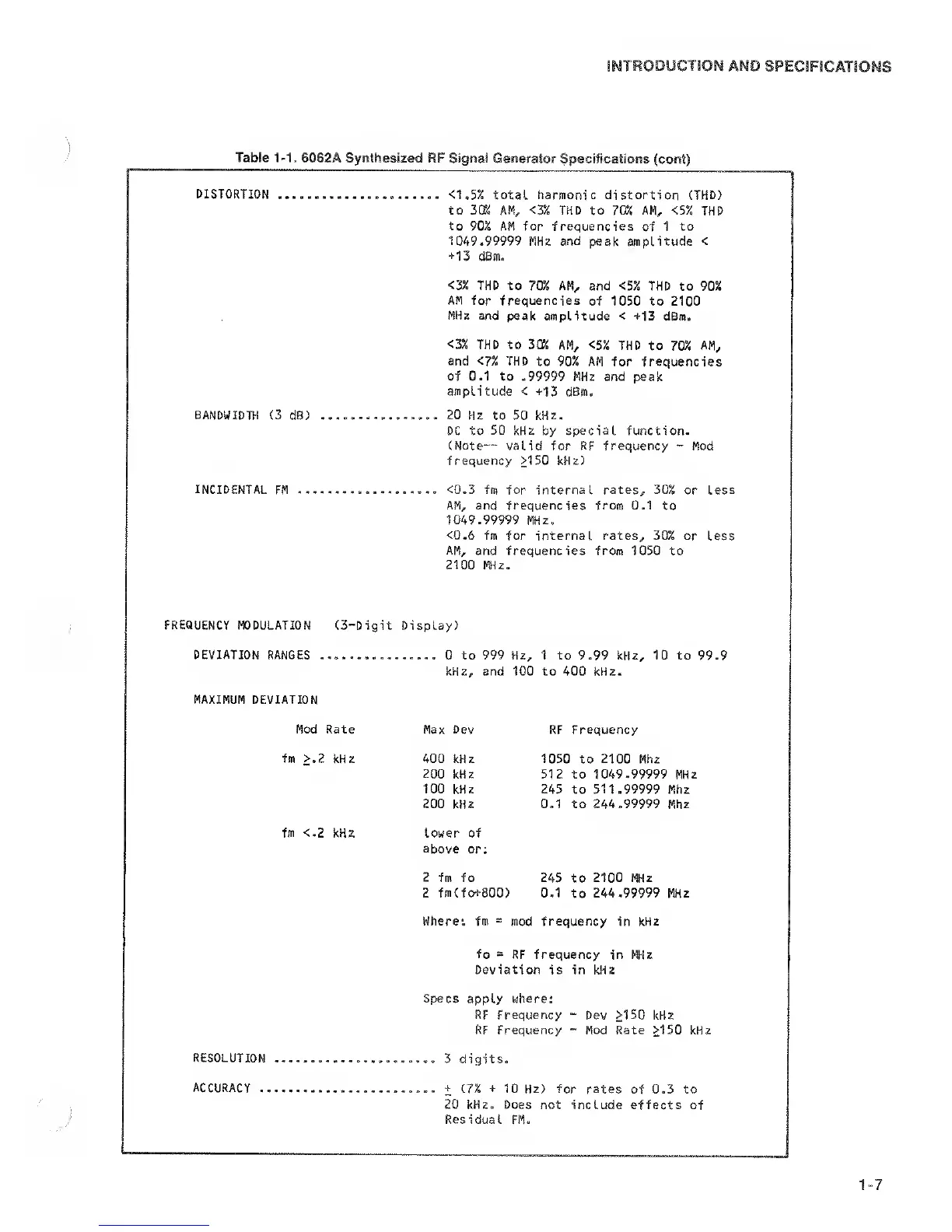

6062A Synthesized RF Signal Generator
Specifications
(con!)
<1,5%
total harmonic distortion (THD)
to 3CK AM, <3% THD
to 70% AM,
<5%
THD
to 90% AM for frequencies
of 1
to
1049.99999 MHz and peak amplitude
<
+13
dBm.
<3%
THD to
70% AM, and
<5%
THD to
90%
AM for frequencies
of 1050 to 2100
MHz and
peak amplitude
<
+13
dBm.
<3%
THD to 30%
AM,
<5%
THD to
70%
AM,
and <7%
THD
to 90% AM for frequencies
of 0.1 to
.99999 MHz and peak
amplitude
<
+13 dBm.
BANDWIDTH (3
dB)
20
Hz to 50
kHz.
DC to
50
kHz by
special
function.
(Note
— valid for RF frequency
-
Mod
frequency >150 kHz)
INCIDENTAL
FM
<0.3
fm for internal rates, 30%
or
less
AM, and frequencies from 0.1
to
1049.99999 MHz.
<0.6
fm for internal rates, 30% or
less
AM,
and frequencies from 1050
to
2100
mz.
FREQUENCY MODULATION (3-Digit
Display)
DEVIATION RANGES
MAXIMUM
DEVIATION
Mod Rate
fm >,2 kHz
fm
<,E kHz
... 0 to 999 Hz, 1 to 9.99 kHz, 10 to 99.9
kHz, and 100 to 400 kHz.
Max Dev RF Frequency
400 kHz
200
kHz
100 kHz
200 kHz
1050
to
2100
Mhz
512 to 1049.99999 MHz
245
to
511.99999
Mhz
0.1 to 244.99999 Mhz
lower of
above
or;
2
fm fo 245
to
2100 MHz
2 fm(fo+800) 0.1
to
244.99999 MHz
Where: fm
=
mod
frequency
in kHz
fo
®
RF frequency in MHz
Deviation is
in
kHz
Specs
apply
where:
RF Frequency
-
Dev
>150
kHz
RF Frequency
“
Mod
Rate
>150
kHz
RESOLUTION
3
digits.
ACCURACY
+
(7%
+
10 Hz) for
rates of 0,3 to
20 kHz. Does
not include effects of
Residual
FM.
1-7
