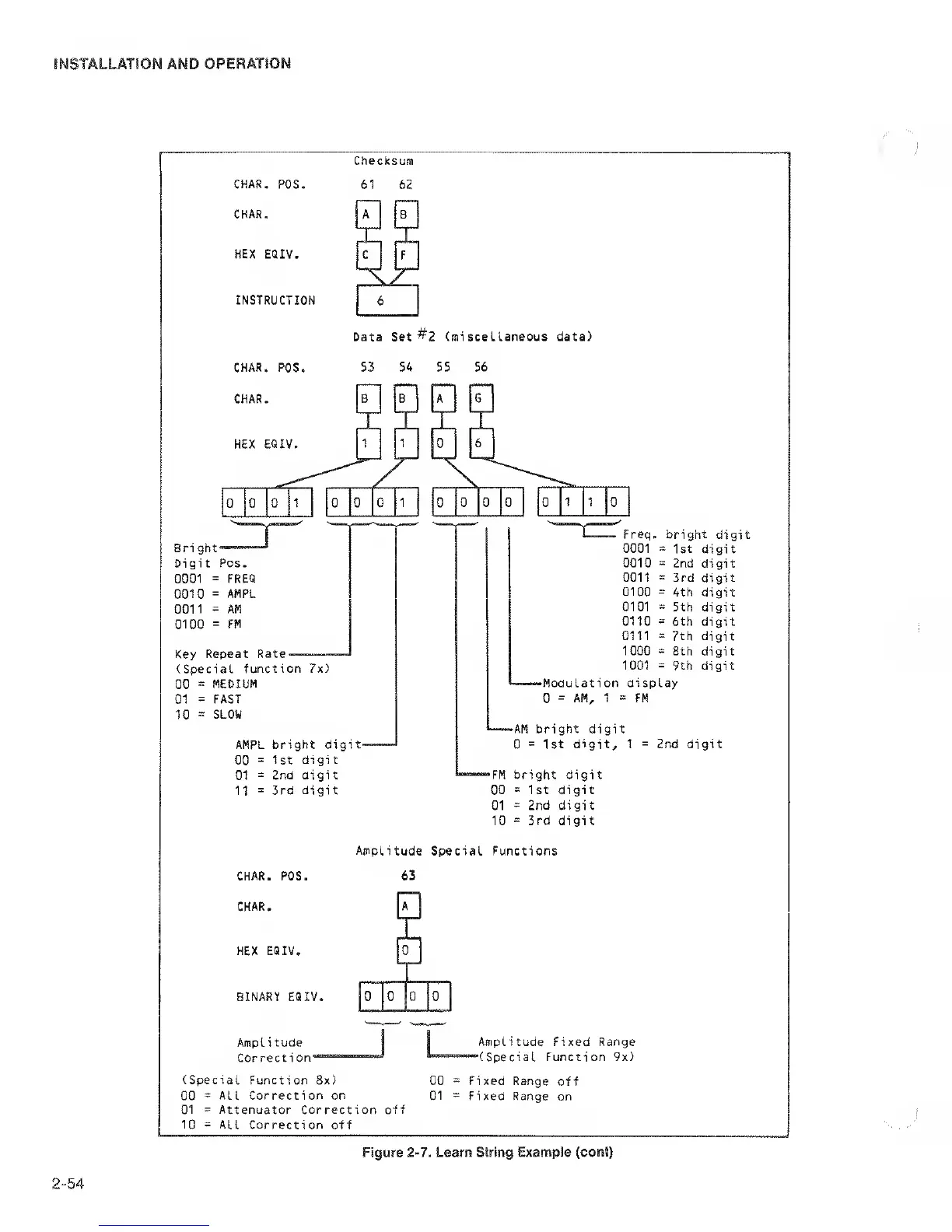

Checksum
CHAR. POS.
CHAR.
HEX EQIV.
INSTRUCTION
61
62
C
F
6
Data Set
#2
(miscellaneous data)
CHAR. POS. 53 54 55 56
Bri ght*
Digit Pos.
0001
=
FREQ
0010
=
AMPL
0011
=
AM
0100
=
FM
Key
Repeat
Rate'
(Special
function 7x)
00
=
MEDIUM
01
=
FAST
10
=
SLOW
Freq. bright
digit
0001
=
1st
digit
0010
=
2nd
digit
0011
=
3rd digit
0100
=
4th digit
0101
=
5th
digit
0110
=
6th digit
0111
=
?th digit
1000
=
8th
digit
1001
=
9th digit
'Modulation display
0
=
1
FM
AMPL bright digit'
00
=
1st
digit
01
=
2nd digit
11
=
3rd
digit
1—
•AM bri ght di
0
=
1 St
digi
»FM
bright digit
00
=
1
St digit
01
=
2nd digit
10
-
3rd digit
CHAR. POS.
Amplitude
Special Functions
63
CHAR.
HEX EQIV.
BINARY EQIV.
Amplitude Fixed Range
(Special Function 9x)
(Special
Function 8x)
00
=
All Correction on
01
=
Attenuator Correction off
10
=
All Correction
off
Amplitude
Correction'
00
=
Fixed Range
off
01
=
Fixed Range
on
