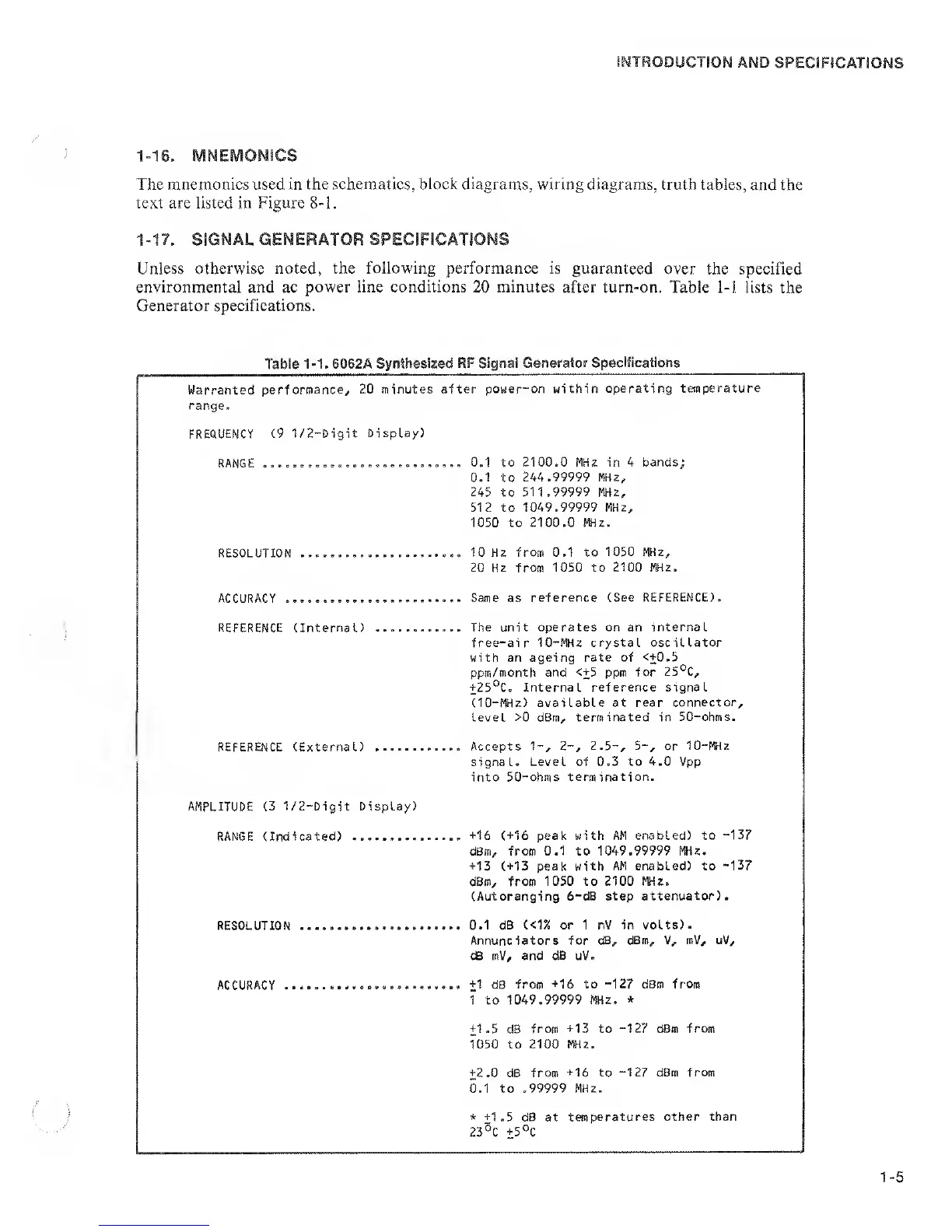

NTRODUCTION
AND
SPECIFICATIONS
1-16. MNEMONICS
The mnemonics used in the
schematics, block diagrams,
wiring diagrams, truth tables,
and the
text are listed in Figure
8-1.
1-17.
SIGNAL GENERATOR SPECIFICATIONS
Unless
otherwise noted, the following performance is guaranteed
over the specified
environmental and ac
power line conditions 20 minutes
after turn-on. Table
1-1
lists
the
Generator specifications.
Table
1-1.
6062A Synthesized
RF Signal
Generator Specifications
Warranted performance^
20 minutes after
power-on within
operating temperature
range.
FREQUENCY
(9 1/2-Digit
Display)
RANGE
0.1
to 2100.0 MHz in 4 bands;
0.1
to
244.99999 MHz,
245
to
511.99999 MHz,
512 to 1049.99999
MHz,
1050 to 2100.0 MHz.
RESOLUTION ...
10 Hz from 0.1 to
1050 MHz,
20 Hz from 1050 to 2100
Itiz.
ACCURACY
Same as reference (See
REFERENCE).
REFERENCE
(Internal) The
unit operates on an internal
free-air 10-MHz crystal
oscillator
with an ageing
rate of
<t0.5
ppm/month and <+5 ppm for
25°C,
+25°C, Internal
reference signal
(10-Miz) available at rear
connector,
level >0 dBm, terminated in
50-ohms.
REFERENCE (External)
Accepts
1-, 2-, 2.5-, 5-,
or
10-MHz
signal.
Level
of
0.3 to 4.0 Vpp
into 50-ohms
termination.
AMPLITUDE (3 1/2-Digit Display)
RANGE (Indicated)
+16 (+16 peak
with AM enabled)
to
-137
dBm, from
0.1 to
1049.99999 MHz.
+13
(+13
peak with AM enabled) to
-137
dBm, from
1050 to 2100 MHz.
(Autoranging 6-dB
step attenuator).
RESOLUTION 0.1
dB
(<1%
or 1 nV in volts).
Annunciators for
dB, dBm, V, mV, uV,
dB mV, and dB uV.
ACCURACY
+1
dB
from
+16
to
-127
dBm
from
? to 1049,99999
MHz.
*
+1.5
dB
from
+13
to
-127
dBm
from
?050 to 2100 mz.
+2.0
dB from
+16 to
-127
dBm from
0.1 to
.99999 MHz.
*
+1.5
dB at
temperatures other than
23°C +5°C
1-5
