Operation
To use the Adapter, do the following:
1. Plug the Adapter into the digital multimeter’s V/Ω and
COMMON input jacks.
2. Plug the test leads into the Adapter input jacks observing
the proper polarity (red lead to red jack, black lead to black
jack). Make sure the leads and Adapter are fully
connected to the instrument.
3. Turn the multimeter’s function switch to the Volts AC
measurement function.
XW Warning
To avoid possible electric shock or personal
injury, before testing the desired circuit, ensure
that the multimeter and Adapter are functioning
properly by testing a known live circuit. A de-
energized circuit will be indicated on the
multimeter display as a reading near zero volts.
4. After determining the circuit under test is de-energized,
retest the known live circuit again to insure the multimeter
and Adapter are still working properly.
Note
Most digital multimeters never display a zero-volt
reading for a de-energized circuit. A small residual
reading may always be present.
The example in Figure 1 shows a reading of 13.2
millivolts AC which is very close to a zero-volt reading.
1 millivolt is equal to .001 volts or 1/1000
th
of a volt.

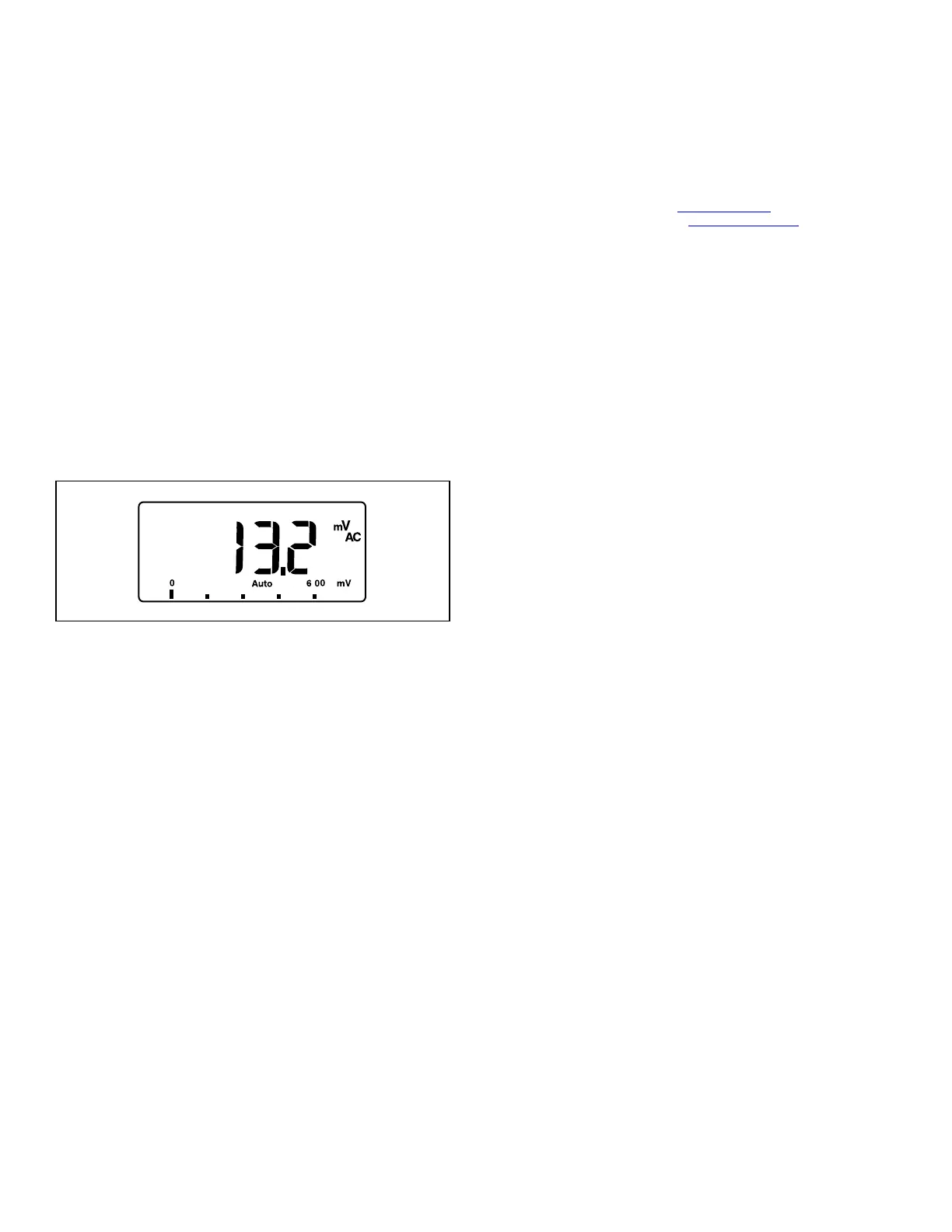

Figure 1. Residual Voltage Reading
Maintenance
Cleaning
W Caution
To avoid damaging the Adapter, do not use
abrasives or solvents for cleaning.
Periodically wipe the Adapter with a damp cloth and mild
detergent.
Contacting Fluke
To contact Fluke, call one of the following telephone numbers:
USA: 1-888-44-FLUKE (1-888-443-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Singapore: +65-738-5655
Anywhere in the world: +1-425-446-5500
USA Service: 1-888-99-FLUKE (1-888-993-5853)
Or, visit Fluke's Web site at www.fluke.com.
To register your product, visit register.fluke.com
LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and
workmanship for one year from the date of purchase. This warranty
does not cover fuses, disposable batteries, or damage from accident,
neglect, misuse, alteration, contamination, or abnormal conditions of
operation or handling. Resellers are not authorized to extend any other
warranty on Fluke’s behalf. To obtain service during the warranty
period, contact your nearest Fluke authorized service center to obtain
return authorization information, then send the product to that Service
Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE
FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY.
Since some states or countries do not allow the exclusion or limitation
of an implied warranty or of incidental or consequential damages, this
limitation of liability may not apply to you.
