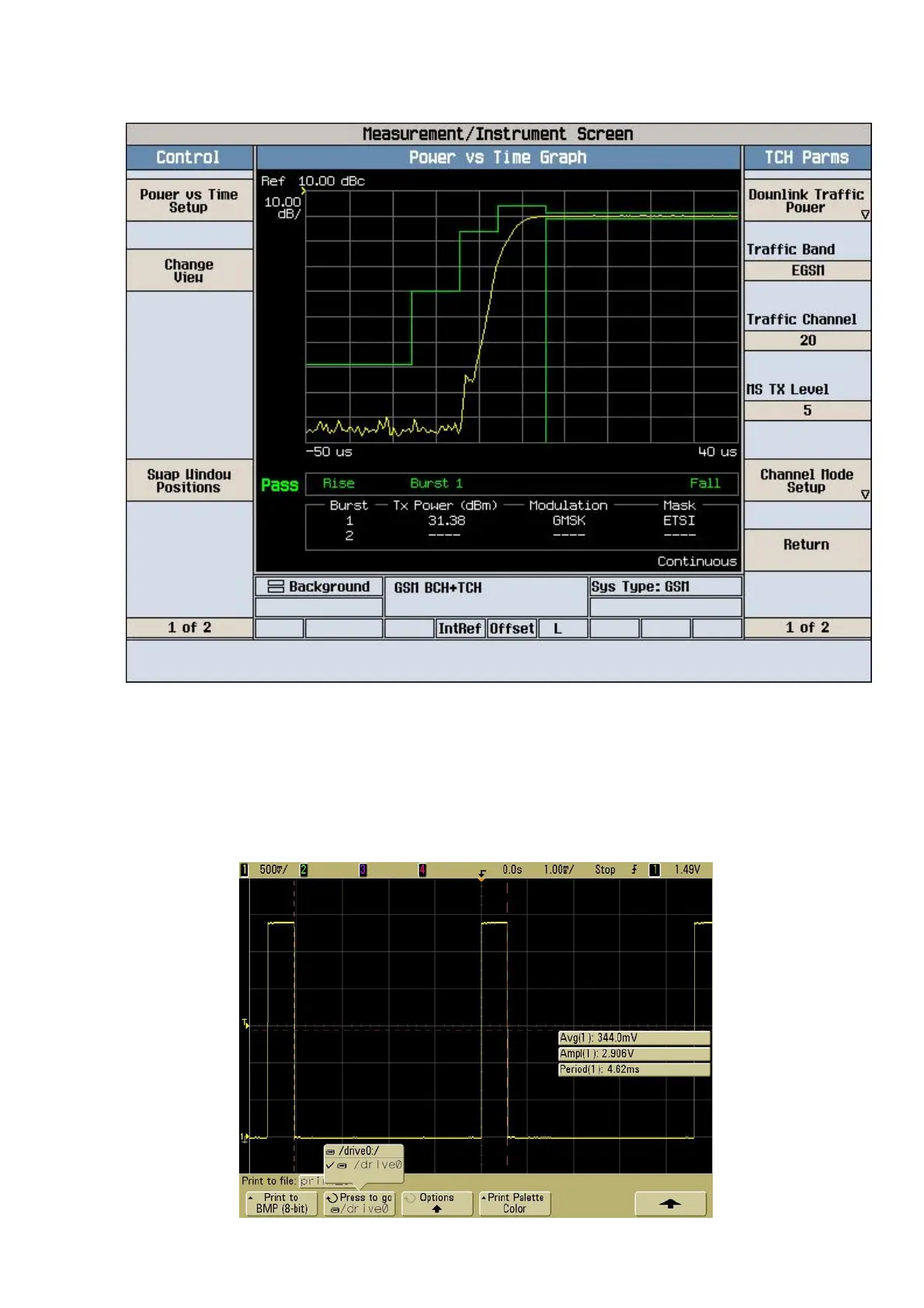

If you can not see anything or it shows fail in the 8960’s PVT window, please follow below debug
wizard to check and remove all the failure about TX path.
1. First of all we use oscilloscope to check PA TX enable control signal waveform：PA_EN, The normal case
shows below; Otherwise please check Baseband circuit.
