Chapter 3: Explanation of Schematic
MTK6223A
AD6548
MTK6223A

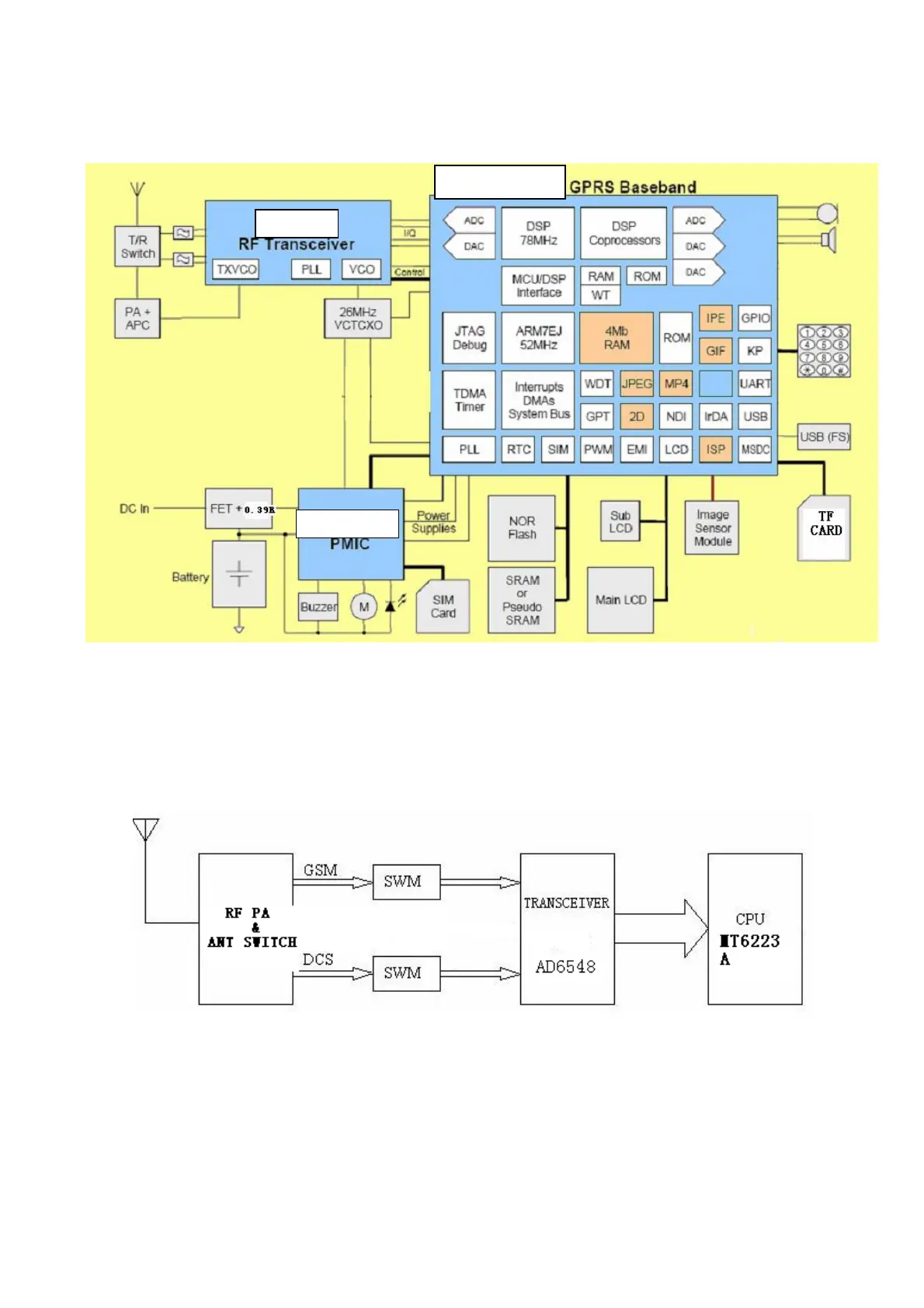

Picture 3.1 MT6223A principle picture
3.1 Principle of RF circuit
3.1.1 Principle of receiver circuit
3.1.1.1Rx signal flow chart:
Picture 3.1.1 Receive signal flow frame
3.1.1.2 Main function of RF
RF part generally means the analog RF and IF process system ,including Antenna system、
TX path、RX path、Analog modem and Frequency Synthesizer .
