D7
D8D6
7. Ensuring the raised markings on the Pivot Block and
the deck are aligned (D5), fold down the Cam Lock
towards the Handle as illustrated in fig D6, and
continue to turn clockwise (D7) until tightened.
Repeat for the other side.
8. The Cam Lock can be unlocked and locked as
illustrated in fig D8.
D5
PAGE 5
4. Insert the Barrel Nut into the Cam Lock as illustrated
in fig D1.
5. Ensuring the lower handle is in the correct position (D2)
Insert the Lower Handle, Washer and Cam Lock on to
the Bolt (D3) and turn the Cam Lock 3 times
clockwise, as illustrated in fig D4.

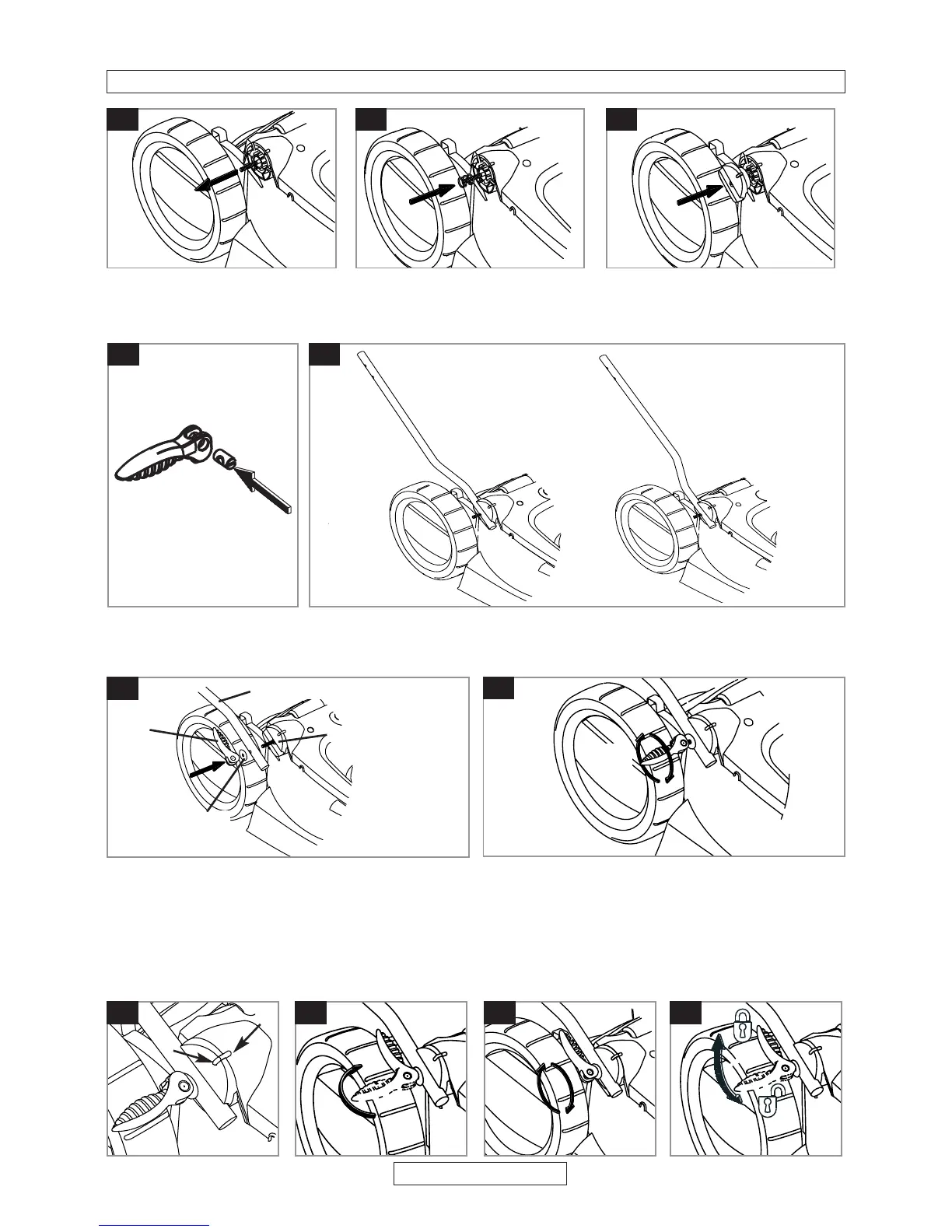

Assembly of Lower Handles to Lawnmower
C1 C2 C3
1. Pull the lower handle bolt until it locks into position as
illustrated in fig C1.
2. Place the Spring over the Bolt (C2)
3. Insert the Pivot Block on to the Bolt (C3)
Repeat for the other side.
D1
D3
D4
x3
pivot block
lower handle
washer
cam lock
D2
To Next Page
