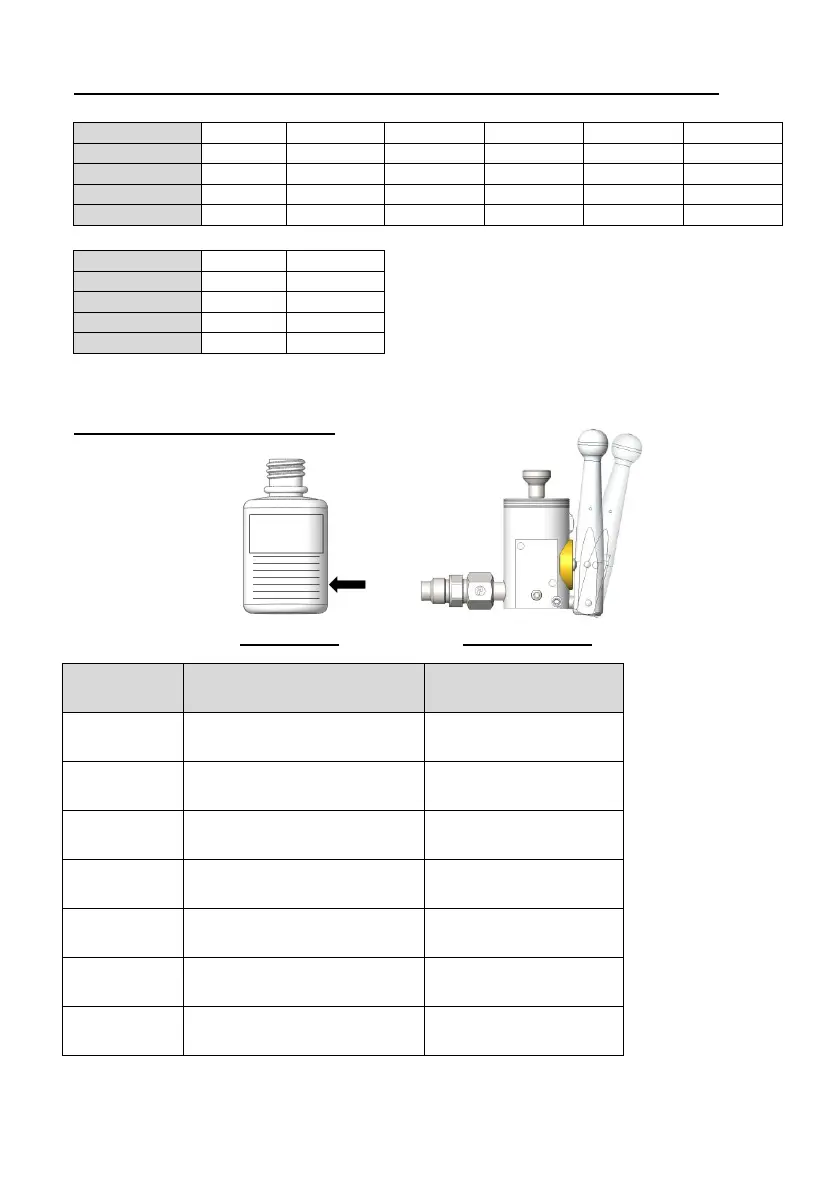

FLANGE CONNECTIONS FMT-S/Q [ALUMINIUM with threaded flanges]:
THREADING SIZE + THREADING LENGTH IN BODY / MAXIMUM TORQUE
Inlet Size
3”
DN080
4”
DN100
6”
DN150
Flange conn.
ANSI
DIN
ANSI
DIN
ANSI
DIN
Thread (T)
5/8"UNC
M16
5/8"UNC
M16
3/4"UNC
M20
max. Length (L)
24 mm
24 mm
24 mm
24 mm
30 mm
30 mm
max. Torque
100 Nm
100 Nm
100 Nm
100 Nm
150 Nm
150 Nm
Inlet Size
8”
DN200
Flange conn.
ANSI
DIN
Thread (T)
3/4"UNC
M20
max. Length (L)
30 mm
30 mm
max. Torque
150 Nm
150 Nm
RECOMMENDED OIL LEVELS:
Bottle type Reservoir type
Inlet Size:
Amount of Oil:
Number of Strokes:
3” DN080
3.3 CC
3
4” DN100
4.4 CC
4
6” DN150
8.8 CC
7
8” DN200
8.8 CC
7
10” DN250
9.8 CC
8
12” DN300
9.8 CC
8
16” DN400
10.7 CC
9
