Connection diagrams for the 30 A1 DB
Four examples:

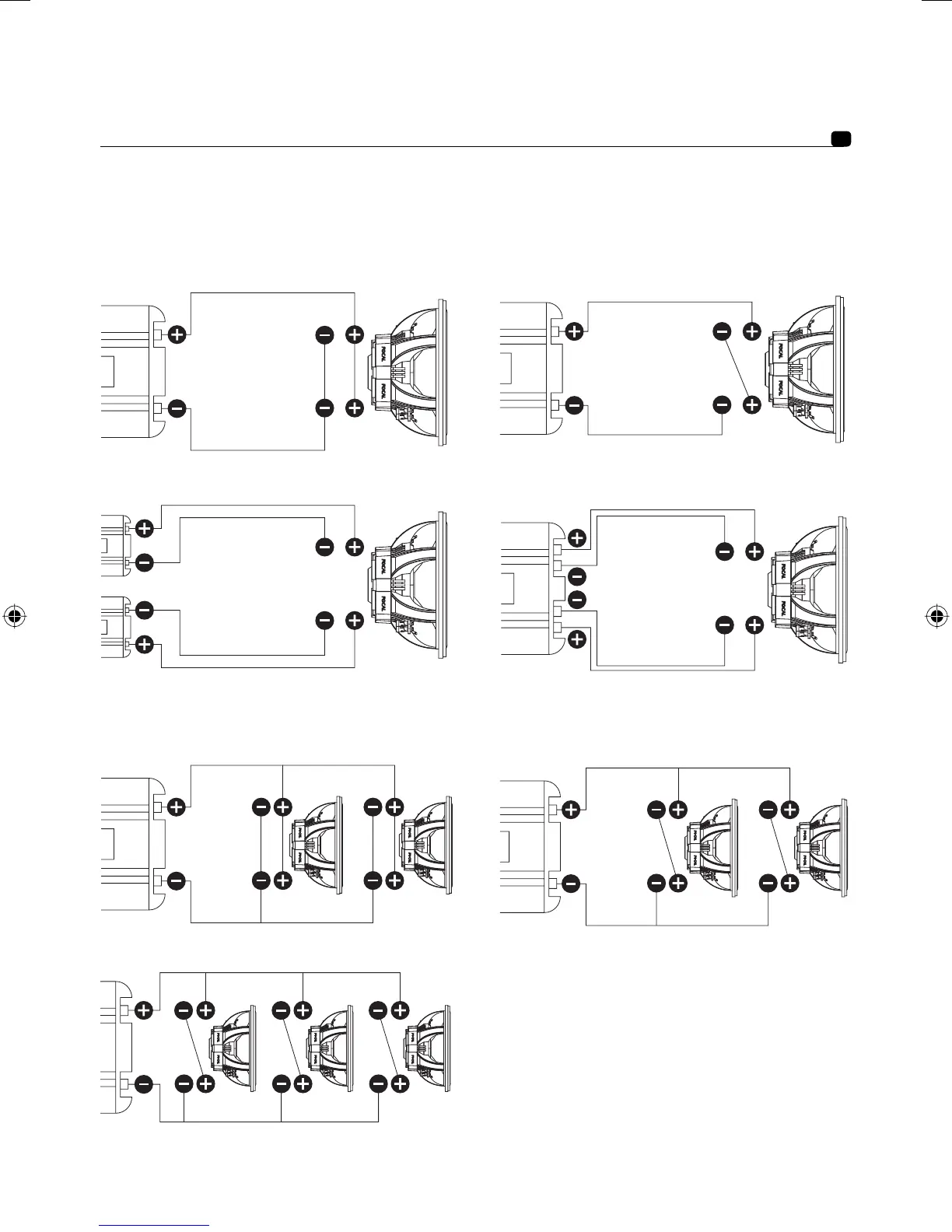

Examples and configurations for various multiples of subwoofers:
Connect in series the 2 voice coils Z = 8 ΩConnect in parallel the 2 voice coils Z = 2 Ω
2 subwoofers both in parallel. Z = 1 Ω
2 subwoofers connected in series / parallel. Z = 4 Ω
Connection using 2 amplifi ers (mono)
Z = 4 Ω
Z = 4 Ω
Connection using 1 amplifi er (stereo)
Z = 4 Ω
Z = 4 Ω
3
3 subwoofers connected in series / parallel. Z = 2,66 Ω
