Focal IFBMW-C - Disconnect Door Controls and Connector; Speaker Disassembly and Wiring

5

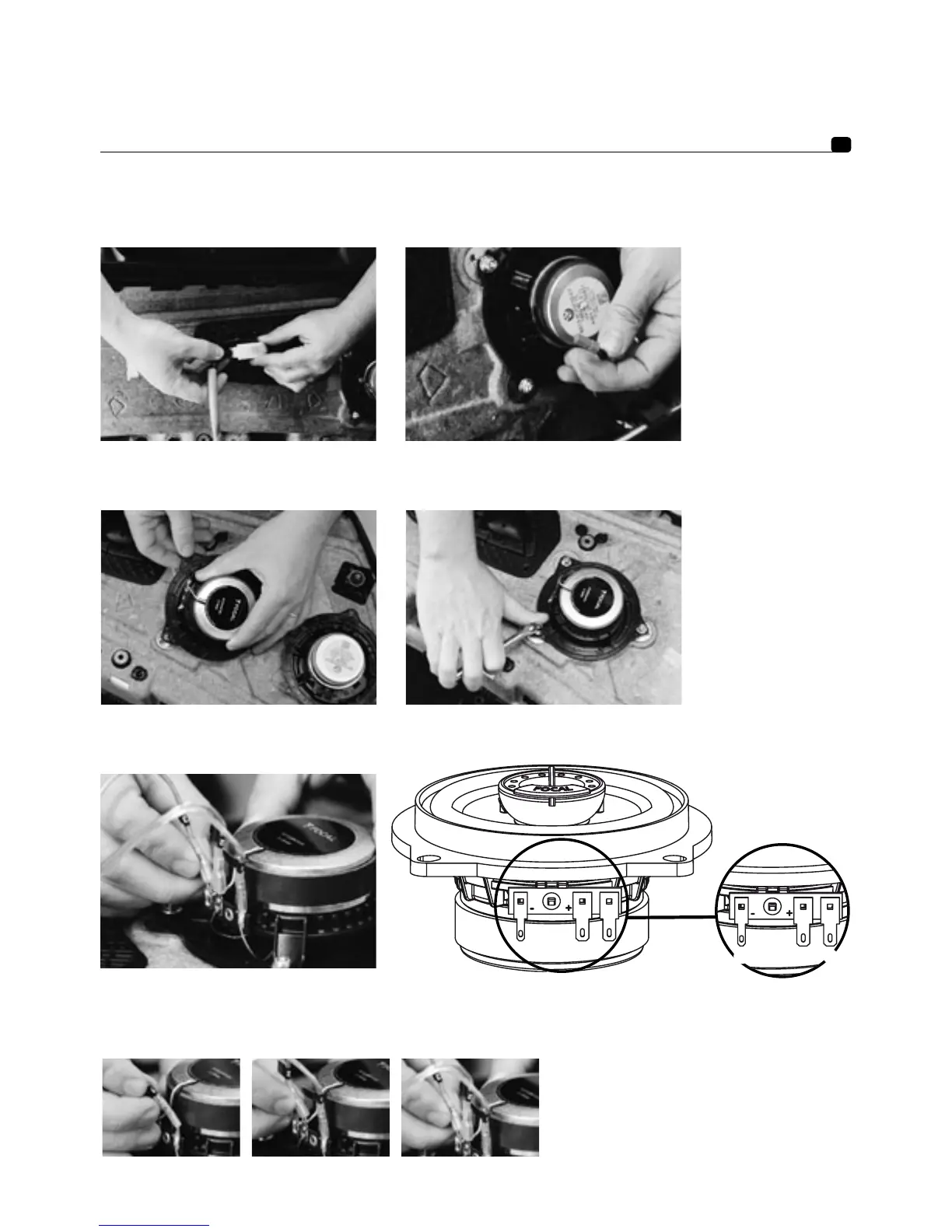

2. Dismantle the door control and the speaker connector.
3. Speaker disassembly : used a 8 mm key (not supplied with the speaker kit).
4. Focal wire plug on the driver and cable fixing inside the door panel (to reduce all parasite noises).
IFBMWC PLUG&PLAY INTEGRATION
User manual
①②
③
WARNING:
Please respect the connection as below (terminal location).
