The following items are included in the kits. Kits can be ordered for 2-6 nozzles.

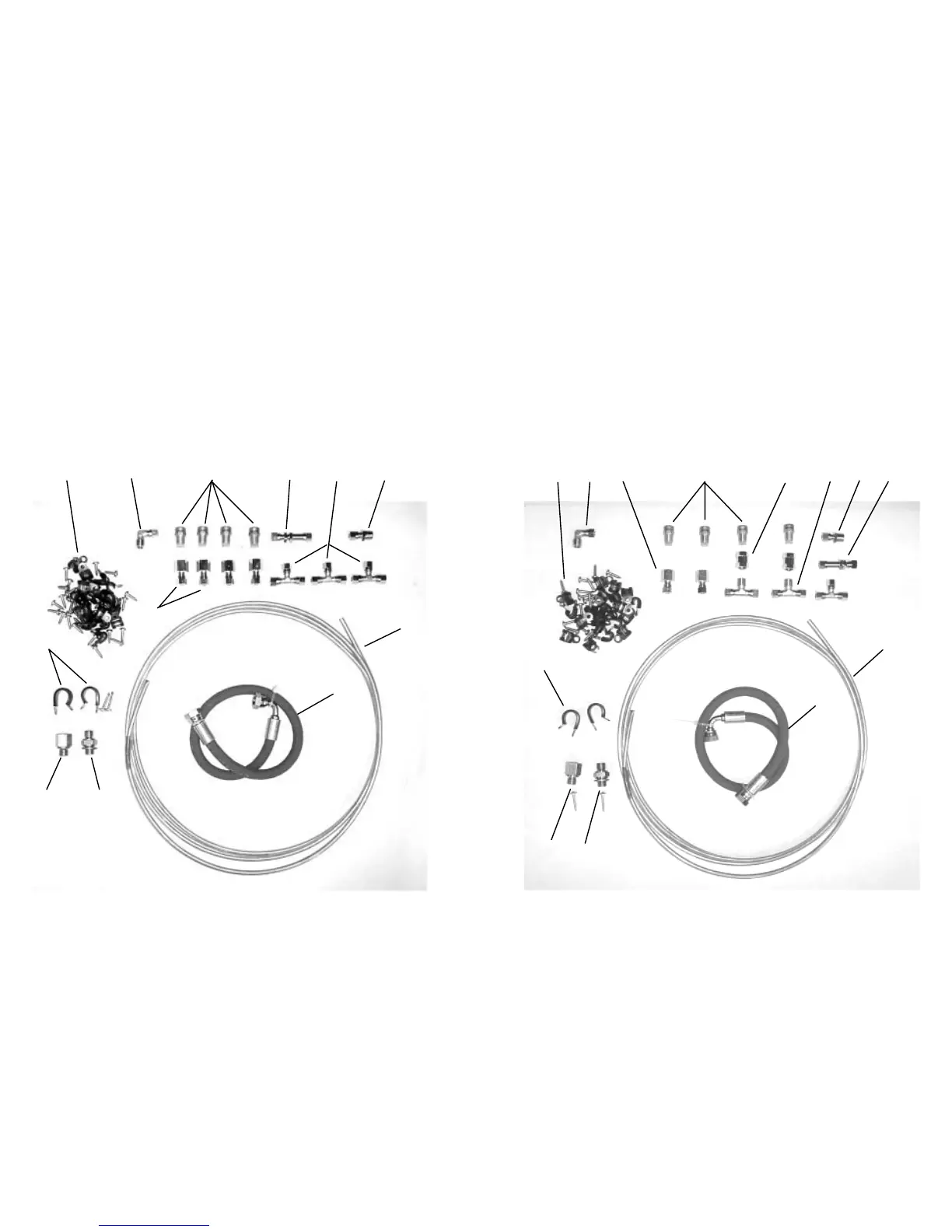

Installation kit 1504: (1) 6 mm steel rubber clamp with screw. (2) 90
o
angle coupling 6x1/4” male (not
standard). (3) Nozzle with filter and protective cover. (4) End coupling 1/4”-6 male. (5) Bulkhead
fitting 6-6. (6) T-coupling 6-6-1/4”. (7) End coupling 1/4”-6 male. (8) Copper pipe 6x1 6,2 metres.
(9) Valve hose. (10) Valve hose clamp with screw. (11) Sleeve coupling 1/4”-1/4” female. (12) Adapter
1/4” male-1/4” female.
Fig. 9A
Fogmaker Universal User Manual
Fogmaker
Universal, User Manual, Page 10 (20) Edition 2002
Fogmaker Universal User Manual
Fogmaker
Universal, User Manual, Page 11 (20) Edition 2002
Installation kit 1514: (1) 6 mm steel rubber clamp with screw. (2) 90
o
angle coupling 6x1/4” male (not
standard). (3) Nozzle with filter and protective cover. (4) End coupling 1/4”-6 male. (5) Bulkhead
fitting 6-6. (6) T-coupling 6-6-1/4”. (7) End coupling 1/4”-6 male. (8) Copper pipe 6x1 6,2 metres.
(9) Valve hose. (10) Valve hose clamp with screw. (11) Sleeve coupling 1/4”-1/4” female. (12) Adapter
1/4” male-1/4” female. (13) Sleeve coupling 1/4” male-1/4” female.
Fig. 9B
1 2 3 5 6 7
10
11 12
8
9
4
1 2 4 3 13 6 7 5
11
10
9
12
8
