Fohhn Sub XSP-10 User Manual

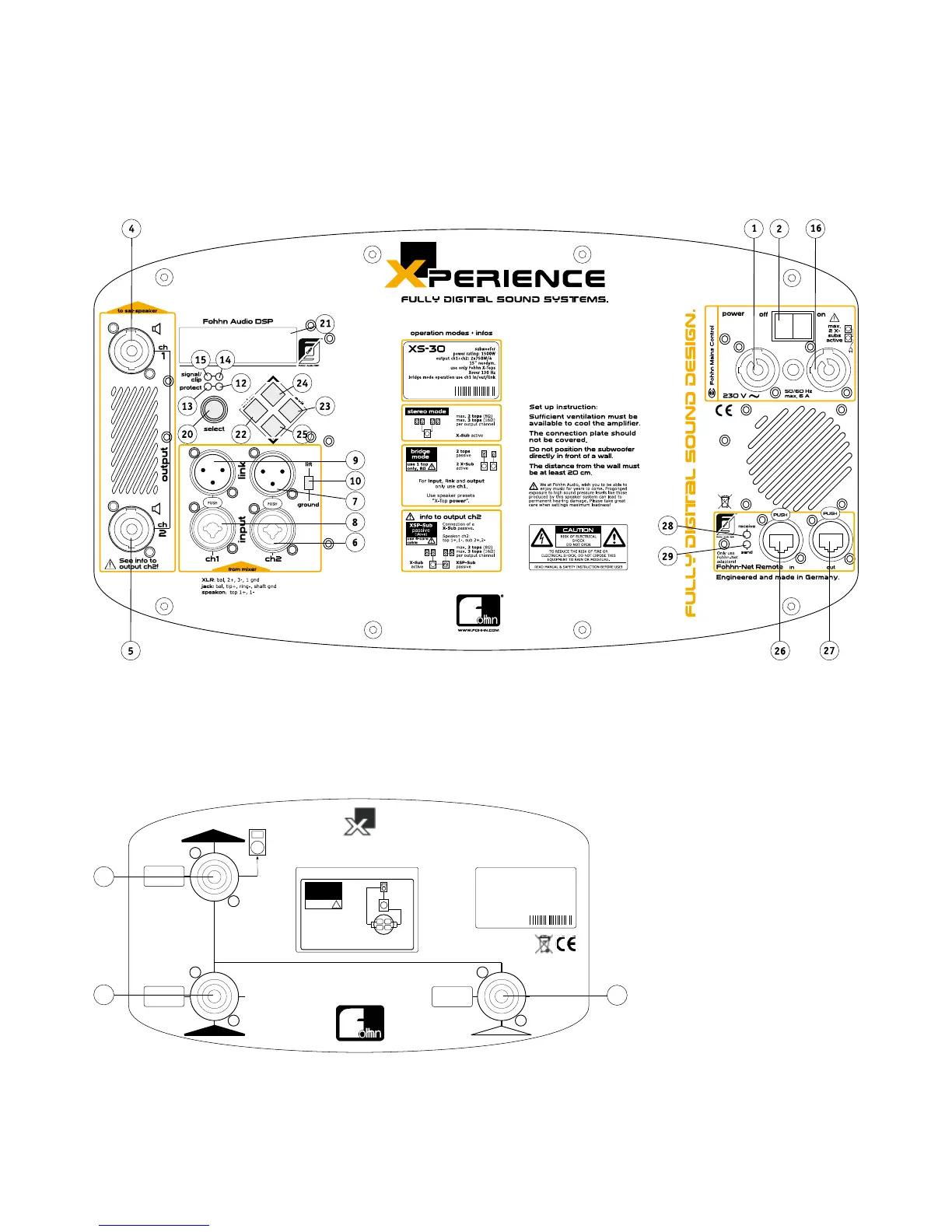

5.7 Illustration controls X-Sub active
5.8 Illustration controls X-Sub passive (slave)
from
X-Sub active
Xperience
min.
impedance
4 ohms
German quality.
Engineered and
made in Germany.
XSP-2
power handling 500W
Xover 130 Hz
X-Sub
passive
top
passive
+1
-1
+2
-2
speakon: top 1+, 1- / sub 2+, 2-
To connect
X-Sub passive with
X-Sub active only use
4-core speakon
loudspeaker cable!
Xperience system wiring
use 4-core
cable
X-Sub
passive
(slave)
!
speakon
1+, 1-
speakon
2+, 2-
speakon
1+, 1-
from external
amplifier /
powermixer
input
input
output
from Xperience
to sat-speaker
www.fohhn.com
‚®
X-Sub passive
32
31
30

Fohhn active subs and their expansion
capabilities:
An additional passive subwoofer can be
linked to the XS-10, XS-20 and
XS-30 active subs (but not the XS-4). The
passive sub is connected to the Speakon
sockets ch2 (5) and powered by the
XS-10, XS-20 or XS-30’s internal amplifier.
If you are using an XS-10 or XS-20 basic
system, without a second (passive)
subwoofer, the bass will run in mono and
will only be audible on one channel
(ch 1). This is quite normal as the second
amplifier channel is reserved for the
additional sub.
For XS-30 only:
Display Function: Slave Sub on and off
An additional passive slave sub, the
XSP-3, can be connected to the XS-30
(Power System). Using the above menu
option, select the on setting. The next
time you use your XS-30 as a “solo”
subwoofer (Basic System), remember
to switch this to off, otherwise the
amplifier power to the sub will be
limited.
34 | Fohhn
