ASSEMBLY INSTRUCTIONS

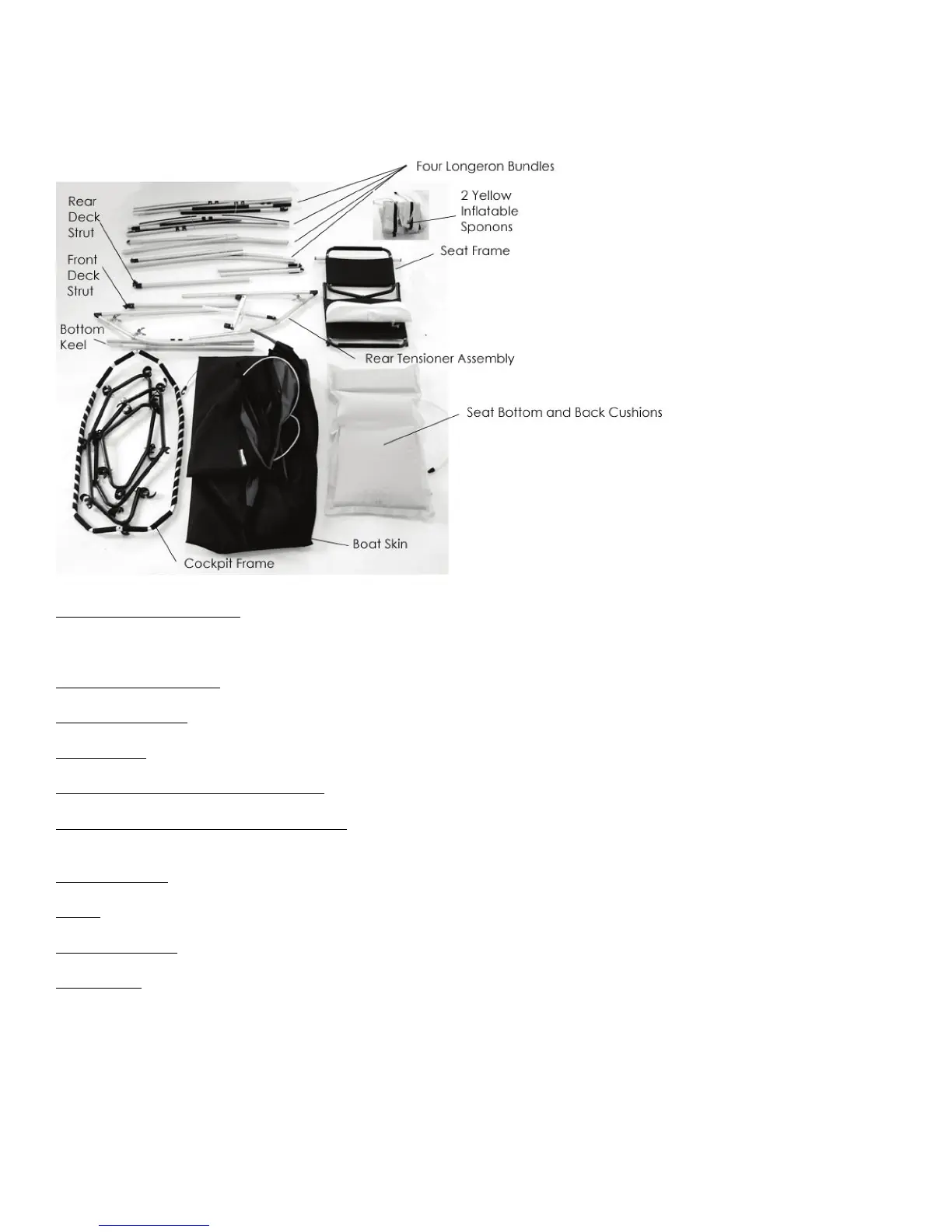

Before assembling your Folbot, take time to familiarize yourself with all the parts and the terminology
used. You should find the following contents when you unpack your boat for the first time.
4 bundles of longerons
— Each longeron bundle is four pre-bent sections shockcorded together. The two
upper sections (called gunwales) are identified by red dots on the ends and have Velcro attached, and the
two lower sections are identified by green dots.
2 gunwale extenders
— These will slide into the open end of the gunwale longerons.
1 rear duck strut
— Made up of one section of tubing with a black tube eye mounted to one end.
1 bow deck
strut — Made up of two sections of tubing shockcorded together, and identified by a blue dot.
1 stern keel tensioner mechanism
— A curved member with a threaded nylon rod and yellow hand wheel.
1 bottom keel bundle of longerons
— This bundle consists of a curved section shockcorded to four
sections of bottom keel (labeled #1 through #3).
3 crossframes
— Anodized black and numbered #1 through #3.
1 seat
— Black anodized two-piece frame with cushioned bottom and backrest attached by Velcro.
1 cockpit frame
— Oval-shaped aluminum tubing identified by the spiraled Velcro.
1 boatskin
— Note how the boatskin is folded so you can put it back into the bag correctly when
disassembled.
2 yellow inflatable sponsons (about 10 feet long) with Velcro on one side of each.
