DESCRIPTION
AS-13: compact Hi-Fi stereo amplifier with 3 inputs: CD, tuner and aux.
A
S-24U: compact Hi-Fi stereo amplifier with USB/SD/MP3 player and 3 inputs: CD, tuner and aux.
S
tereo output: 25 + 25 W and 10 + 10 W surround.
Especially indicated for personal audio systems.

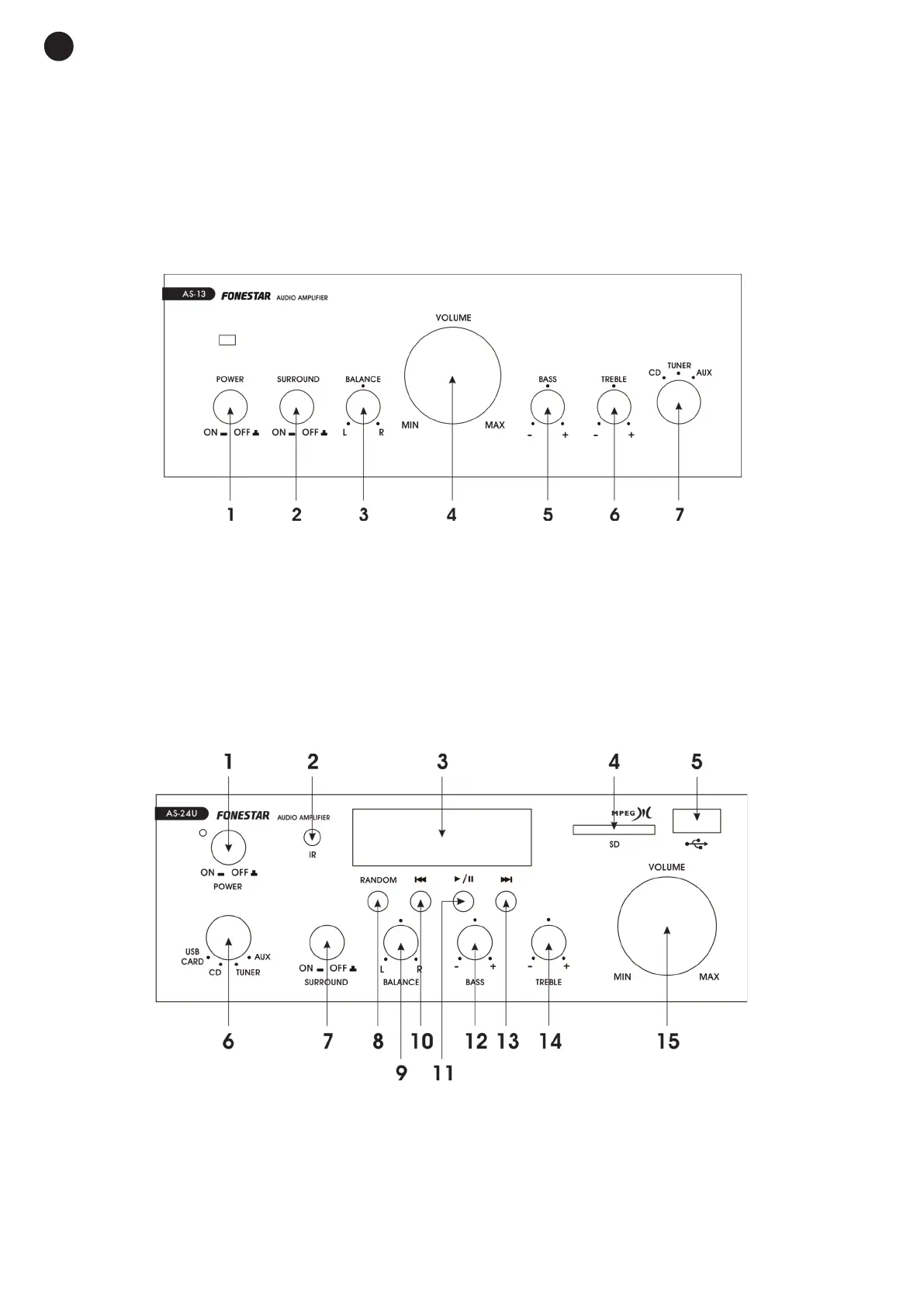

CONTROLS AND FUNCTIONS
AS-13
FRONT PANEL
1.- POWER: power switch which allows the device to be switched on/off.
2.- SURROUND: switch to activate the loudspeaker surround output.
3.- BALANCE: output signal balance control .
4.- VOLUME: output signal general volume control.
5.- BASS: reinforces or attenuates bass frequencies.
6.- TREBLE: reinforces or attenuates treble frequencies.
7.- CD/TUNER/AUX: selector for choosing among the available inputs: CD, radio or aux signal.
AS-24U
FRONT PANEL
1.- POWER: power switch which allows the device to be switched on/off.
2.- IR: remote control infrared receiver.
3.- DISPLAY: information display.
4.- SD: SD memory card reader.
5.- USB: USB port for connecting USB hard disks and memories with FAT16 or FAT32 file systems. If the
storage device contains MP3 files, they could be played.
6.- USB CARD/CD/TUNER/AUX: selector allowing you to choose among the available inputs: USB device,
- 4-
