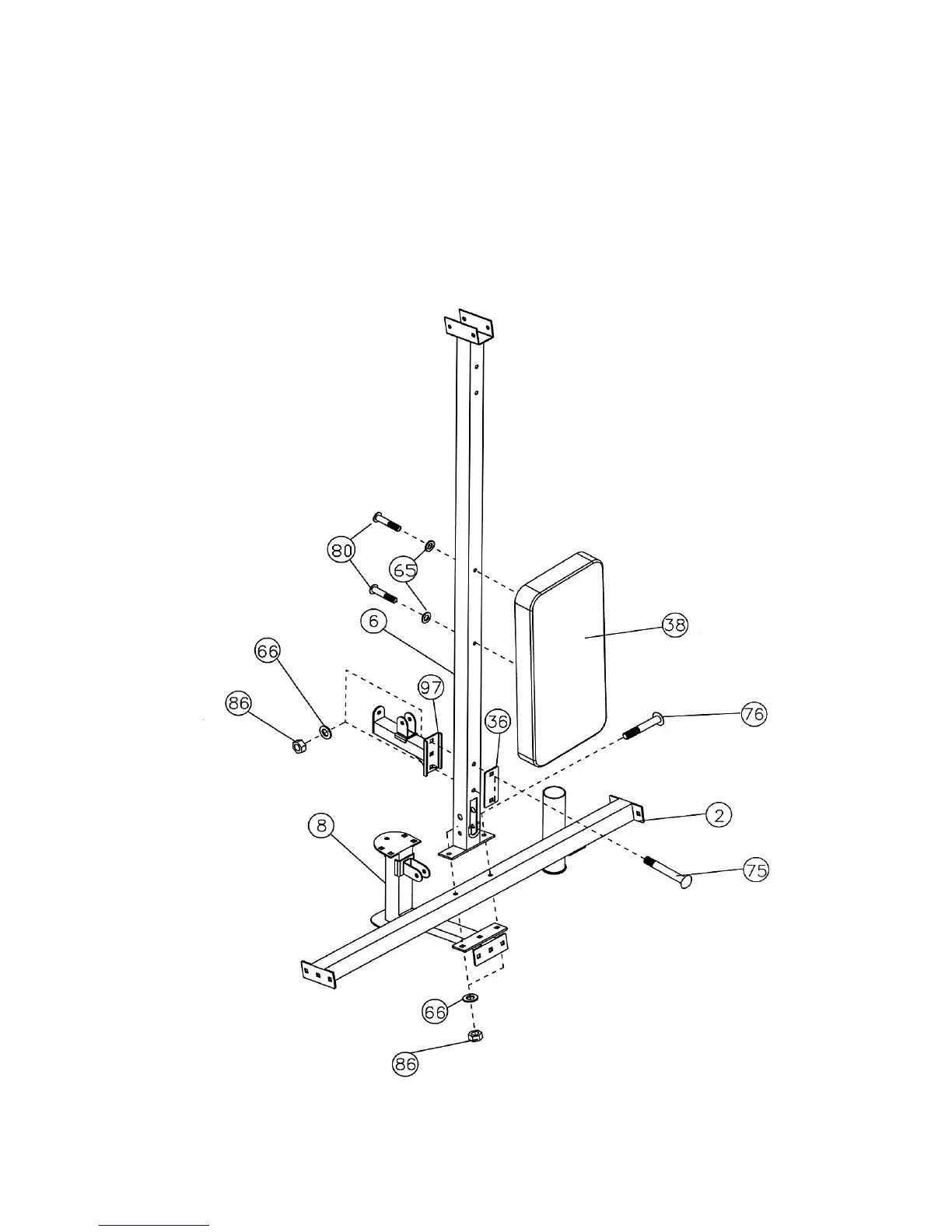

STEP 3 (See Diagram 3)
A.) Attach the Rear Vertical Beam (#6) to the top of the Cross Brace (#2). Attach the Weight
Glide Base (#8) to the Cross Brace from the Bottom. Align the holes. Secure them with
two M10 x 3” Carriage Bolts (#76), Ø ¾” Washers (#66), and M10 Aircraft Nuts (#86).
B.) Attach the Pulley Support Frame (#97) to the Rear Vertical Beam. Secure it with two M10
x 2 ¾” Carriage Bolts (#75), one 4 ¾” x 2” Bracket (#36), two Ø ¾” Washers (#66), and
two M10 Aircraft Nuts (#86).
C.) Attach the Backrest Board (#38) to the Rear Vertical Beam. Secure it with two M8 x 2 ½”
Allen Bolts (#80) and Ø 5/8” Washers (#65).
