About Adjusting Tire Holder Position
How To Mount Bike
1
2
Position for 20" - 22" wheel
Position for 24" - 29" wheel
1
2
Horizontal Style
Place the wheel on the stand.
Place the wheel on the stand.
- 4 -
Vertical Style
22
PAP
Dodavatel / Importer
KCK Cyklosport-Mode s.r.o., Bartošova 348, 765 02 Otrokovice-Kvítkovice, CZ
www.kckcyklosport.cz, www.force.bike
Země původu Japonsko / Made in Japan

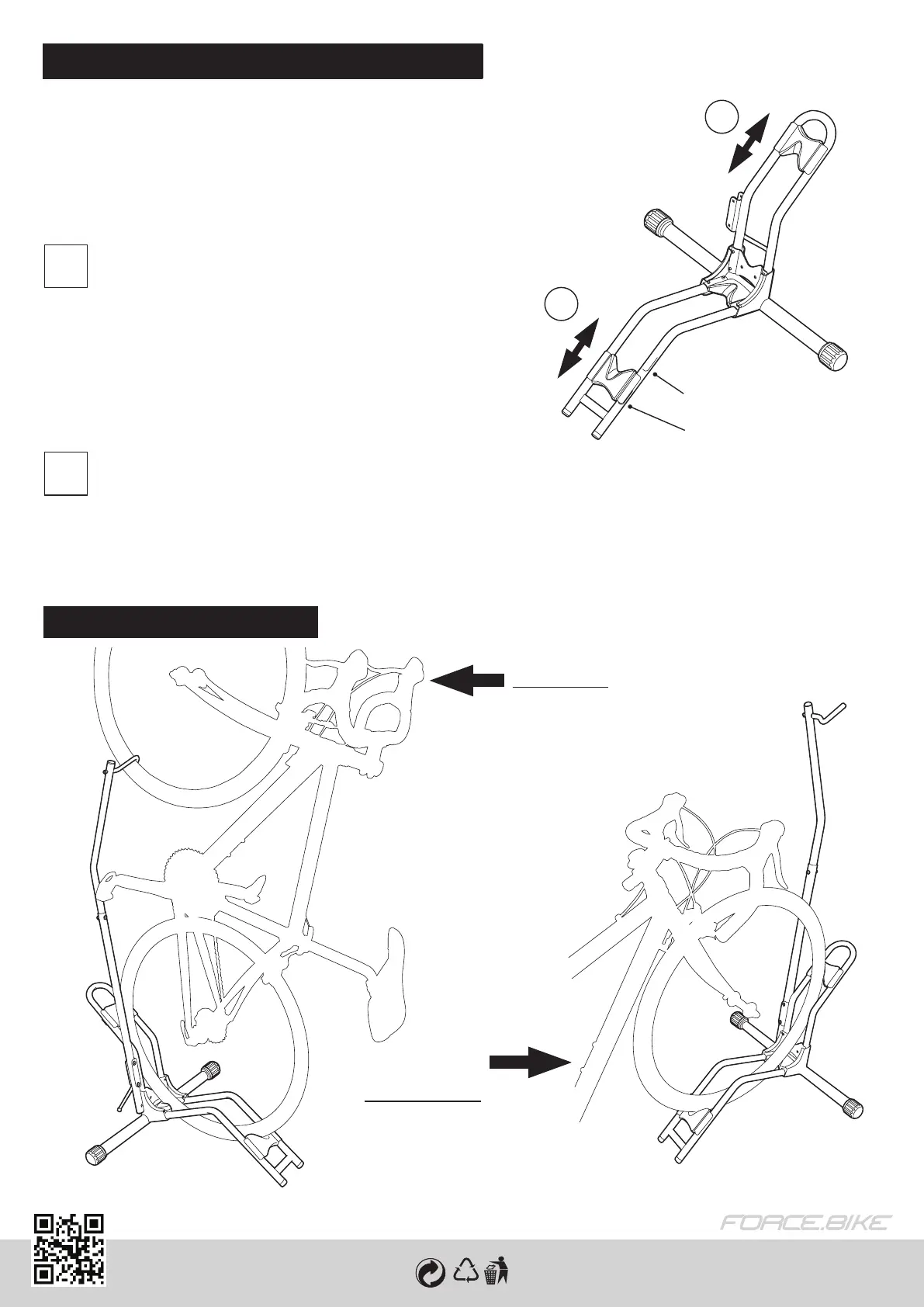

It's crucial to set Tire Holder position correctly so the wheel is supported at 3
positions to prevent the bike from falling out unexpectedly. For this purpose, you
need to adjust both rear and front Tire Holder positions according to the actual tire
size you will put in the stand.
Loosen the M6x20 bolts on the back of Rear Tire Holder
using an M5 hex wrench.
Loosen the M6x20 bolts on the back of Front Tire Holder using an M5 hex
wrench. Put the wheel on the stand as it touches both rear and center Tire
Holders. While in this position, slide down the Front Tire Holder until it touches
the tire surface. This is the proper position and the wheel is fully supported with
3 holders. Tighten the backside bolts firmly. Adjust this position again whenever
you change the bike on this stand.
