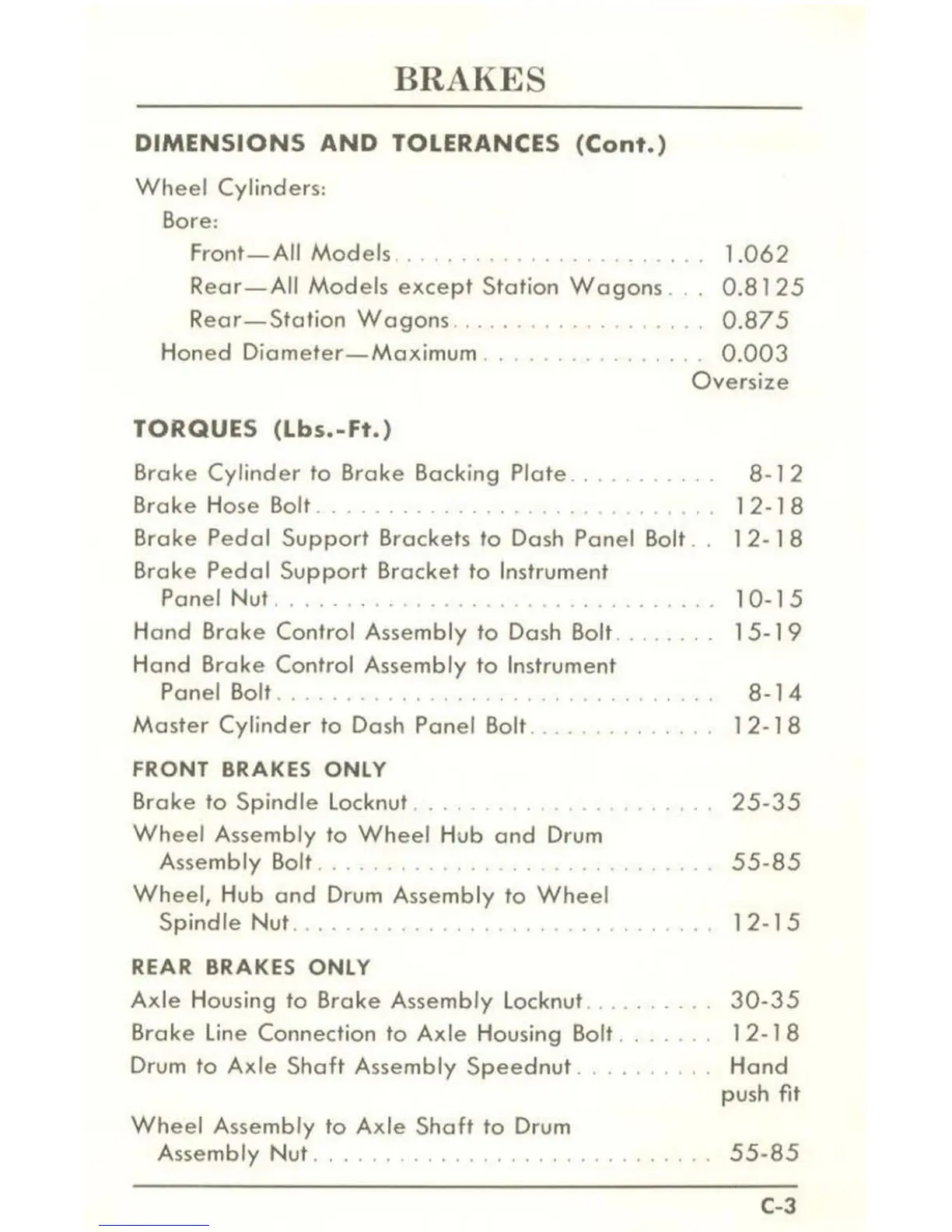

BRAKES
DIMENSIONS AND TOLERANCES (Cont.)
Wheel Cylinder s:
Bore:
Front-All Models . . ........... .
1.062
Rear-All Models except Station Wagons . .. 0.8125
Rear-Station Wagons ... . ........... 0.875
Honed Diameter-Maximum ....
0.003
Oversize
TORQUES (Lbs.-Ft.)
Brake Cylinder to Brake Backing Plate . . . . . . . . . .. 8-12
Brake Hose Bolt . . . . . . . . . . . . . . . . . . . 12-18
Brake Pedal Support Brackets to Dash Panel Bolt .. 12- I 8
Brake Pedal Support Bracket to Instrument
Panel Nut .... _ . _ .. ..... ... . .... _ . _ ... _ 10-1 5
Hand Brake Control Assembly to Dash Bolt . . . . . . .. 15- 19
Hand Brake Control Assembly to Instrument
Panel Bolt . . . . . . . . . .. ....... ............ 8- 14
Master Cylinder to Dash Panel Bolt ....
FRONT BRAKES ONLY
Brake to Spindle Locknut . _ ...
Wheel Assembly to Wheel Hub and Drum
Assembly Bolt . . . . . . . . . . .
.. ..
Wheel, Hub and Drum Assembly to Wheel
Spindle Nut ...................... .
REAR BRAKES ONLY
Axle Housing to Brake Assembly Locknut ...
12-18
25-35
55-85
12 - 15
30-35
Brake Line Connection to Axle Housing Bolt . . . . . .. 12- 18
Drum to Axle Shaft Assembly Speednut . . . . . . . . .. Hand
push fit
Wheel As se mbly to Axle Shaft to Drum
Assembly
Nut . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 55-85
