3.0L and 4.0L engines (if equipped)
The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating

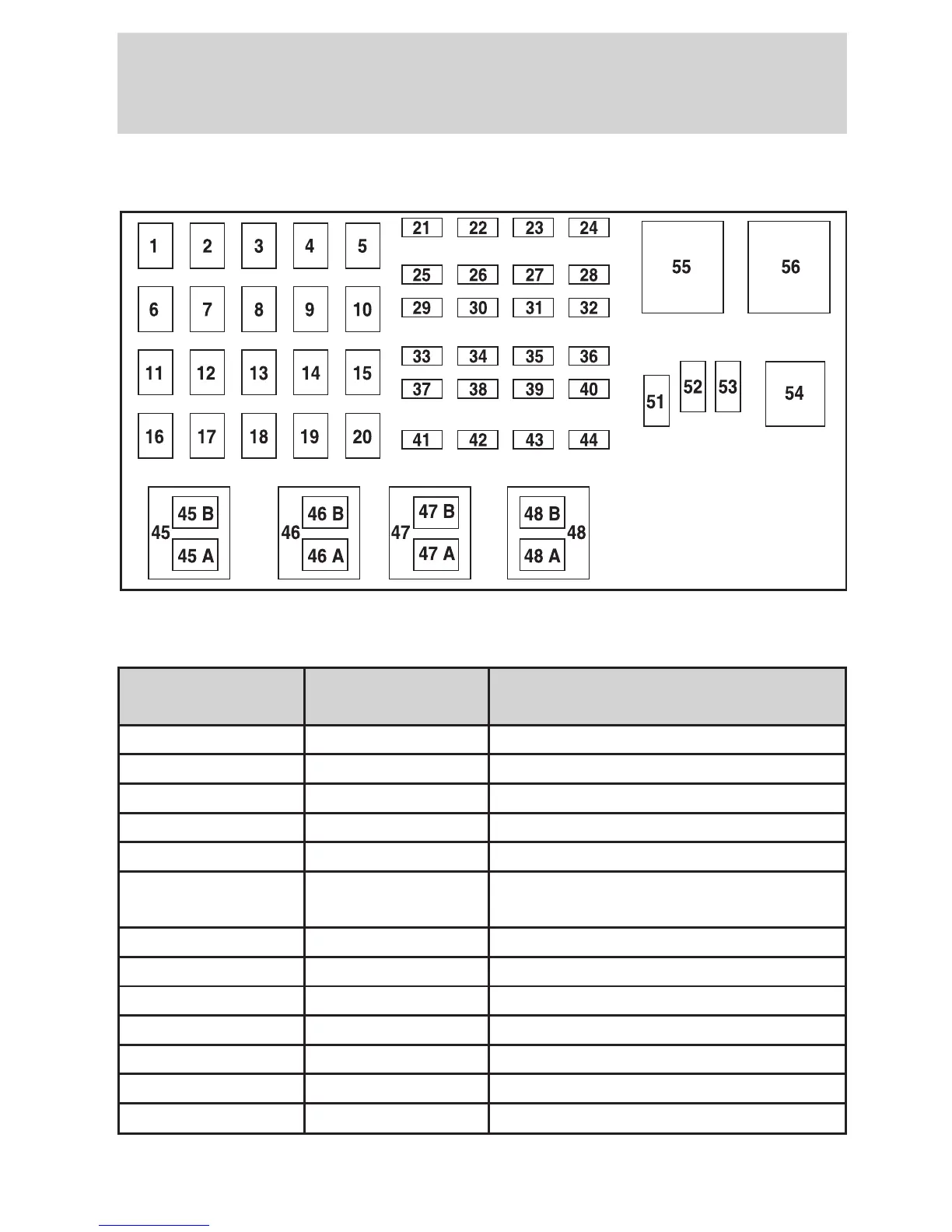

Power Distribution Box
Description
1 50A** I/P fuse panel
2 50A** Amplifier
3 — Not used
4 — Not used
5 — Not used
6 50A** Anti-lock Brake System (ABS)
pump motor
7 30A* Powertrain Control Module (PCM)
8 20A* Power door locks, Remote entry
9 — Not used
10 — Not used
11 50A** Starter relay, Ignition switch
12 20A* Power windows
13 20A* 4x4 Motor
