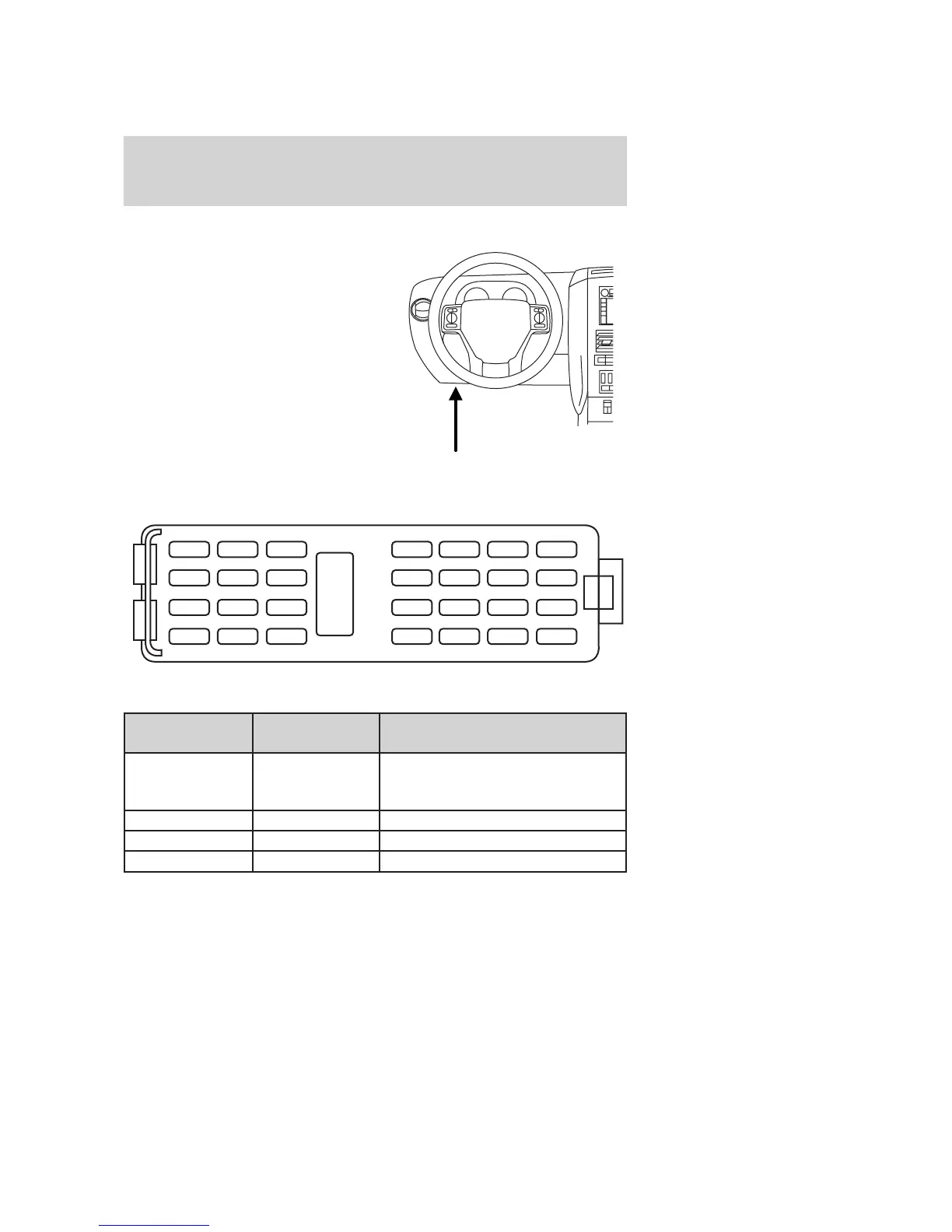

Passenger compartment fuse panel
The fuse panel is located below the
instrument panel on the driver’s
side.
To remove a fuse use the fuse puller tool provided on the fuse panel box.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 20A Moon roof, Adjustable pedals,
Memory seats, Memory lumbar
motor
2 5A Microcontroller power (SJB)
3 20A Radio, Navigation amplifier
4 10A OBD II connector
C
B
1
4
3
2
1
8
7
6
5
1
2
1
1
1
0
9
1
6
1
5
1
4
1
3
2
0
1
9
1
8
1
7
2
4
2
3
2
2
2
1
2
8
2
7
2
6
2
5
2009 Explorer (exp)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
314
