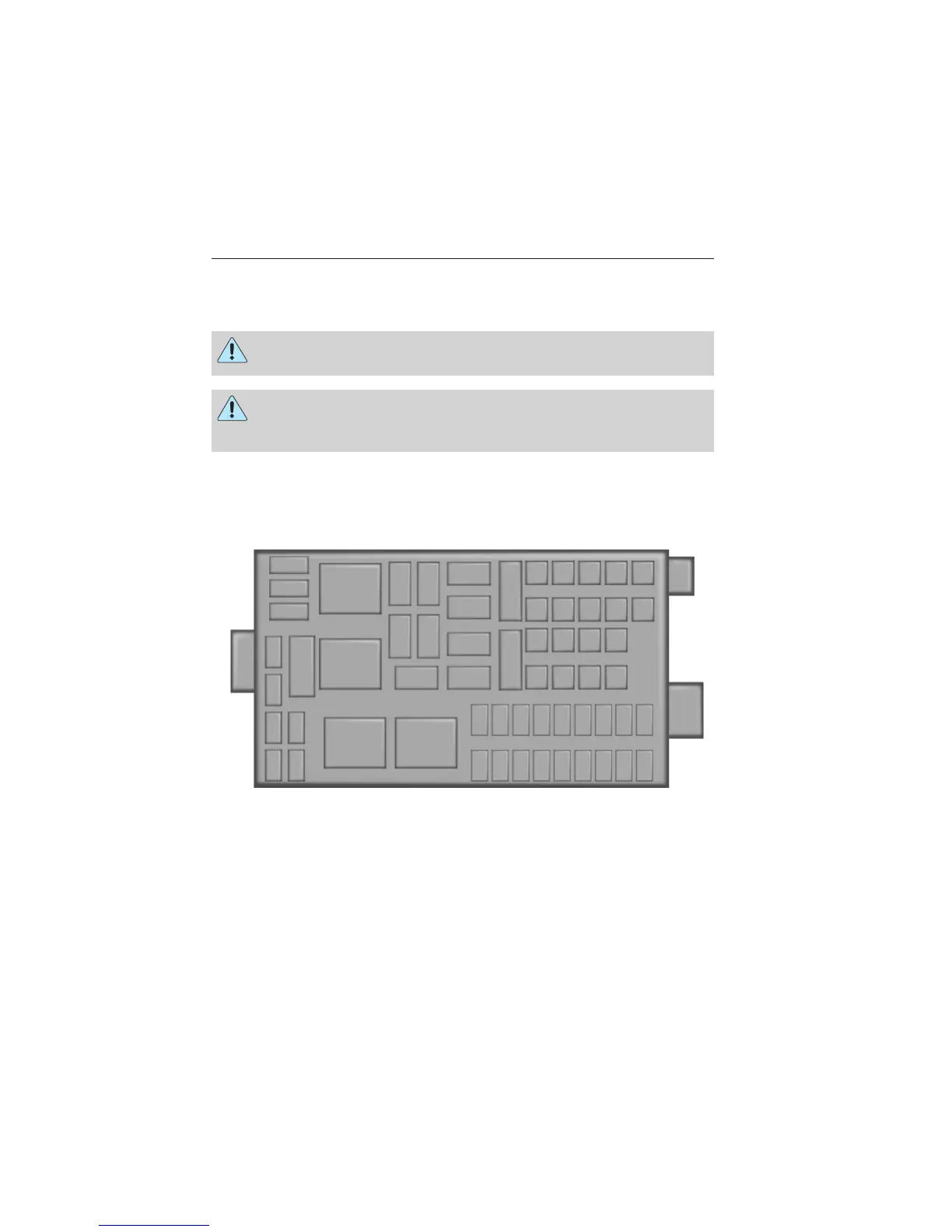

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box has high-current fuses that protect your
vehicle’s main electrical systems from overloads.
If the battery has been disconnected and reconnected, see Changing the
vehicle battery in the Maintenance chapter.
503
502
304
204
602
118 114 110 106 102
117 113 109 105
116 112 108 104
115 111 107 103
101
601
209
208
206
205
207
203
202
201
303
501
401
302 301
18161412108642
1715131197531
24
23
22 20
21 19
Fuses 195
2013 F-650/750 (f67)
Owners Guide gf, 2nd Printing, March 2013
USA (fus)
