Ford 2015 Figo - Central High Mounted Brake Lamp

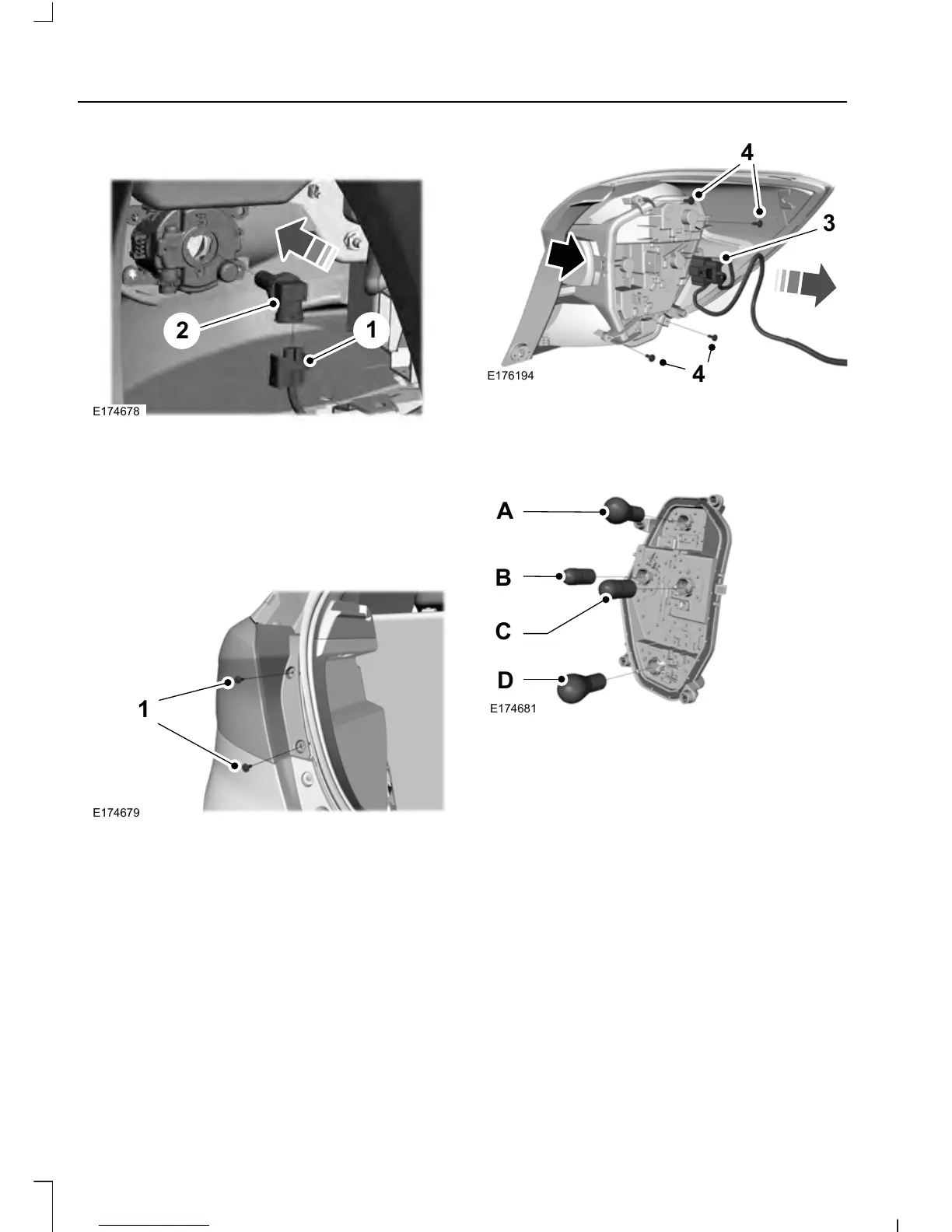

Front Fog Lamps
1
2
E174678
1. Disconnect electrical connector.
2. Turn the bulb holder counterclockwise
and remove it.
Note: Do not touch the bulb glass.
Rear Lamps
1
E174679
1. Remove the screws.
2. Remove the lamp.
4
4
3
E176194
3. Disconnect the electrical connector.
4. Remove the screws and unclip the bulb
holder.
A
B
D
C
E174681
5. Gently press the bulb into the bulb
holder, turn it counterclockwise and
remove it.
A. Brake lamp
B. Indicator lamp
C. Reverse lamp
D. Tail lamp and Rear fog lamp
Central High Mounted Brake Lamp
Note: These are not serviceable items, see
an authorized dealer if they fail.
