Ford 6.4L Power Stroke - EGRT Outlet (EGR Cooler Outlet Temperature)

67
ElEctrical componEnts
119

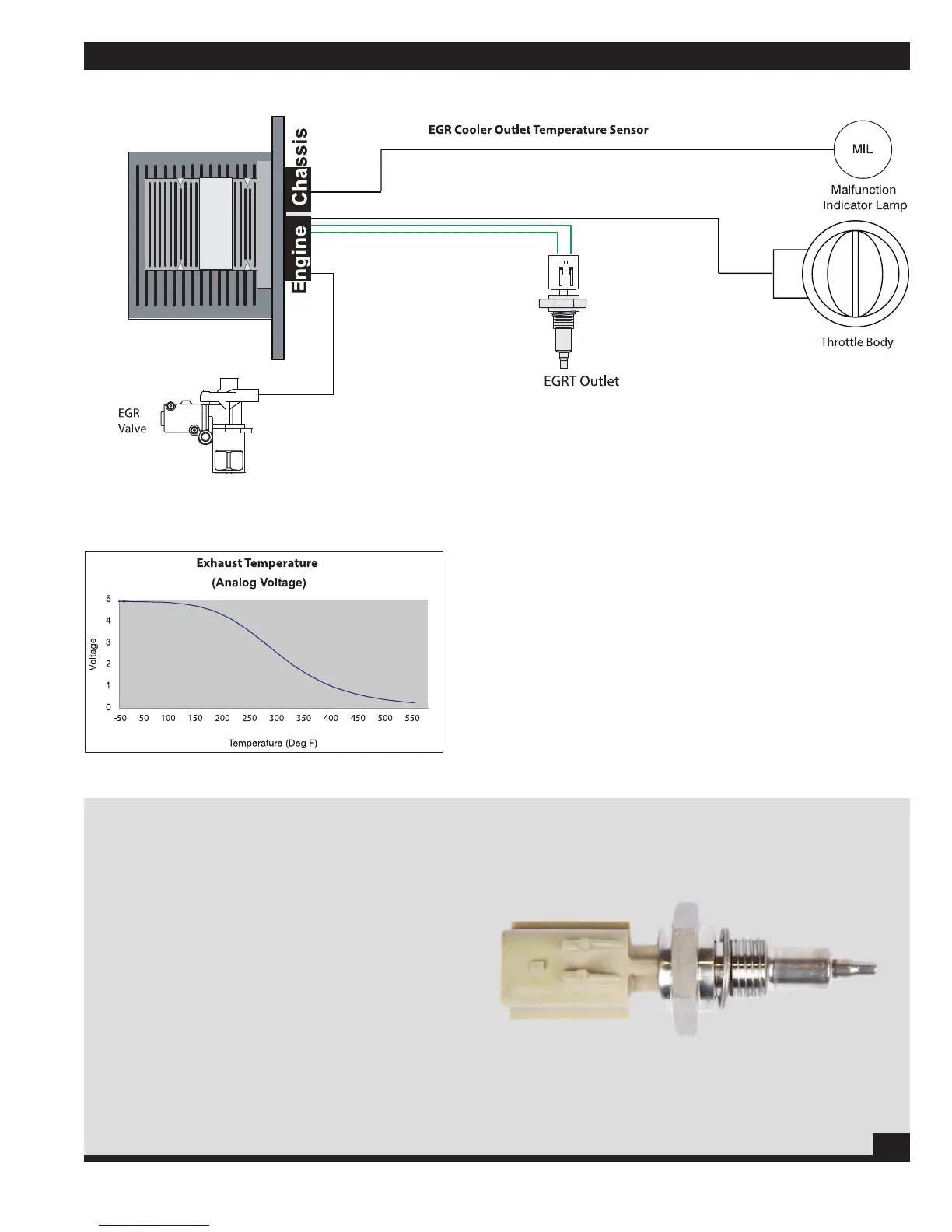

EGRT Outlet (EGR Cooler Outlet Temperature)
• The EGRT Outlet sensor is a two (2) wire thermistor type sensor.
• The EGRT outlet sensor’s internal thermistor forms a
voltage divider with a pullup resistor inside the ECM.
• The ECM monitors exhaust temperature from the
EGRT outlet sensor signal to aid in controlling the
EGR valve position and throttle position.
