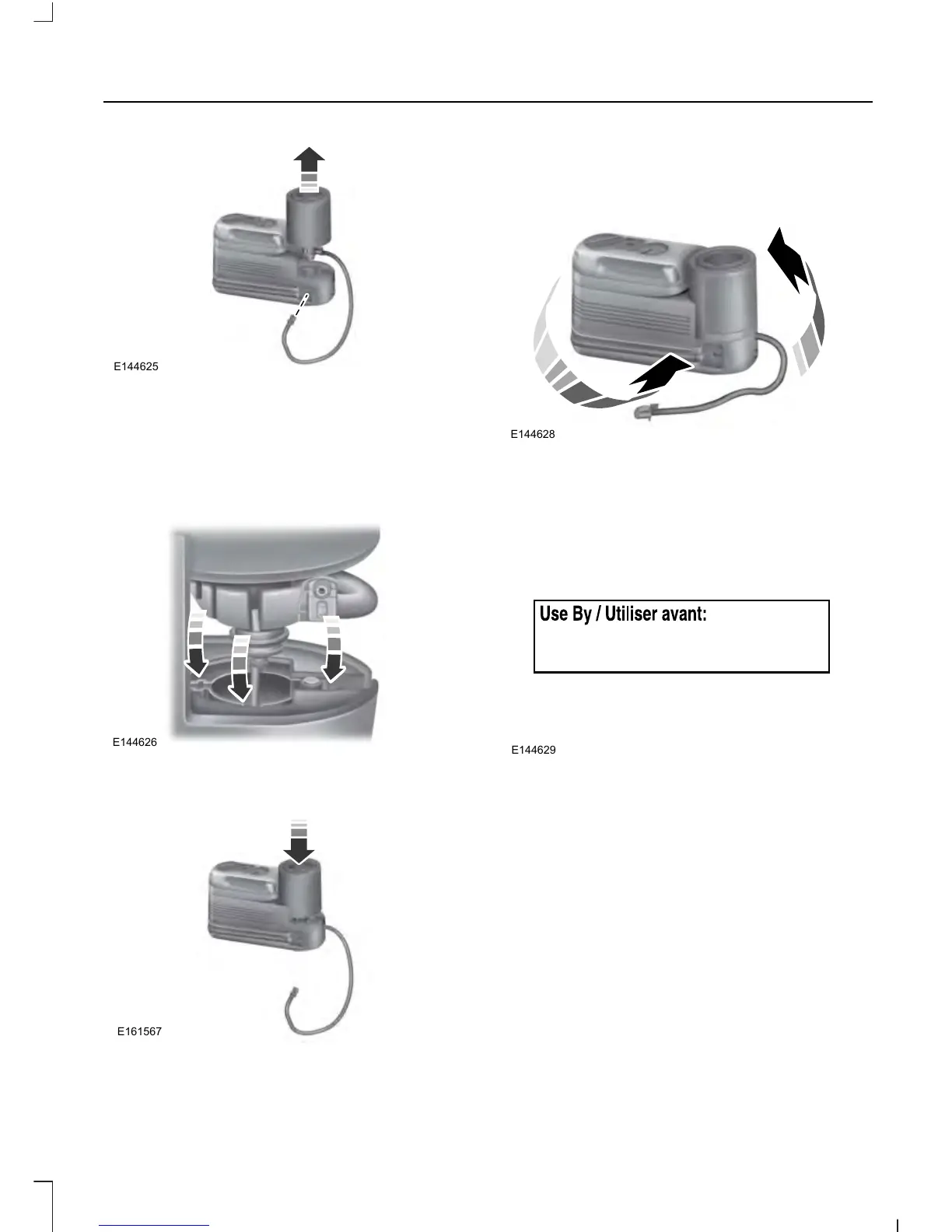

3. Using the yellow cap tool, press the tab
located on the kit compressor housing
while pulling up on the sealant canister.
Installation of the Sealant Canister to
the Kit
1. Align the sealant canister with the kit
housing.
2. Once aligned, seat the sealant canister
by lightly pushing down until you hear
an audible click.
3. Wrap the clear tube around the
compressor housing.
Note: If you experience any difficulties with
the removal or installation of the sealant
canister, consult your Ford Motor Company
authorized dealer for assistance.
Be sure to check the sealant compound's
use by date regularly. The use by date is
on the lower right hand corner of the label
located on the sealant canister (bottle).
You should replace the sealant canister
after four years.
245
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review
Wheels and Tires
