E-Transit – Key Driver Features
6

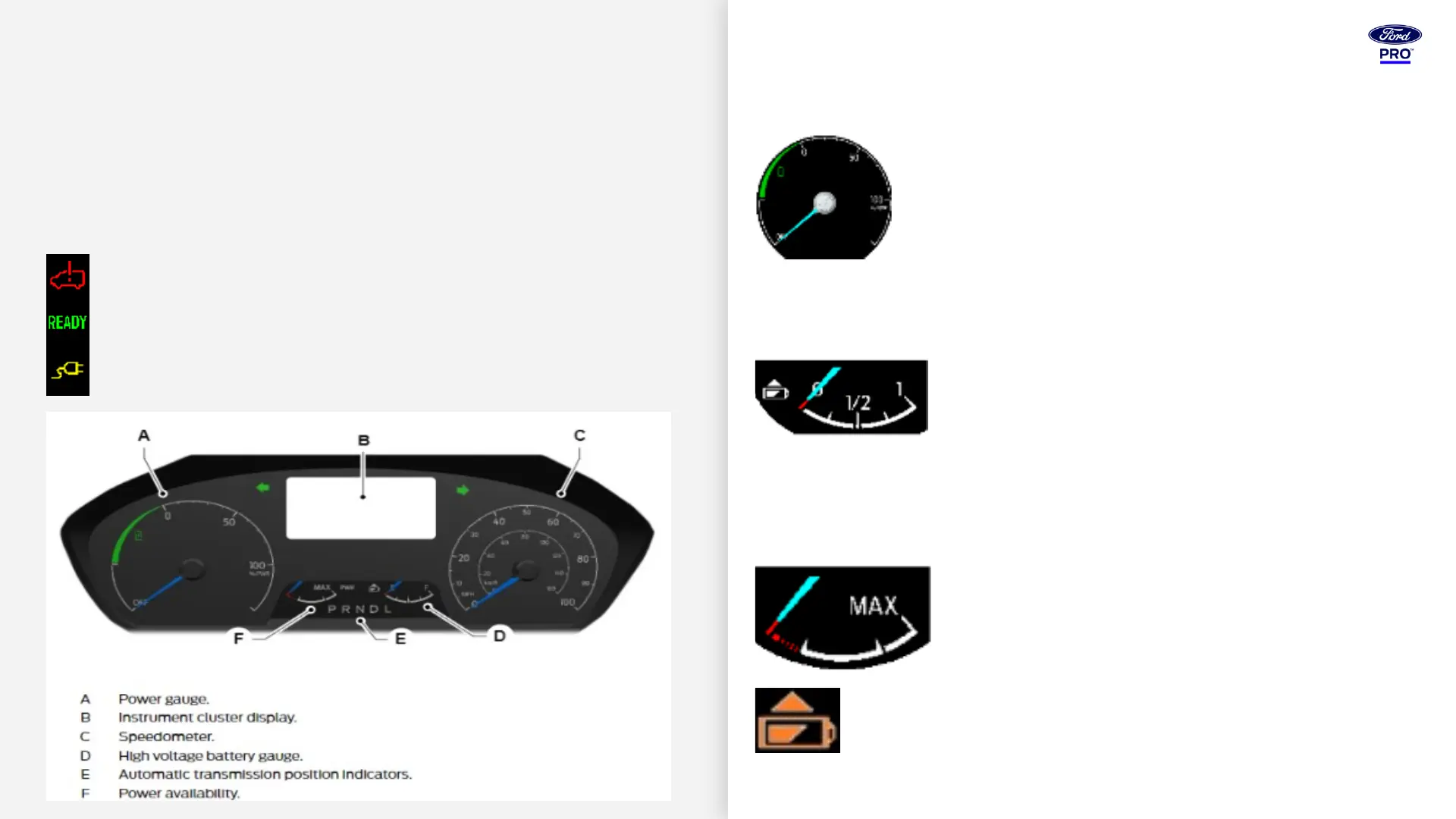

Navigating the
E-Transit Cluster
Unique E-Transit Lamps
Electrical Malfunction
Ready
HV Battery Extension
Cord is Connected
Red
Green
Amber
Power Gauge
• The gauge shows how much power is being
used during acceleration or to maintain a
constant speed
• The pointer will move into the green zone when
the battery is being charged through regenerative
braking
Battery Charge Gauge
• Replaces the fuel gauge and is an indication of
the battery State Of Charge (SOC)
• When a low SOC is reached the Battery lamp will
turn amber and a POP-UP warning displayed on
the HMI screen
Power Availability Gauge
• Displays available power to the e-motor
• Normal operation is within the white area
• When near the red zone there is limited
torque/acceleration available. Possible causes:
• Motor & battery temperature
• High battery usage
• Low battery charge
• In the red zone identifies a failure.
