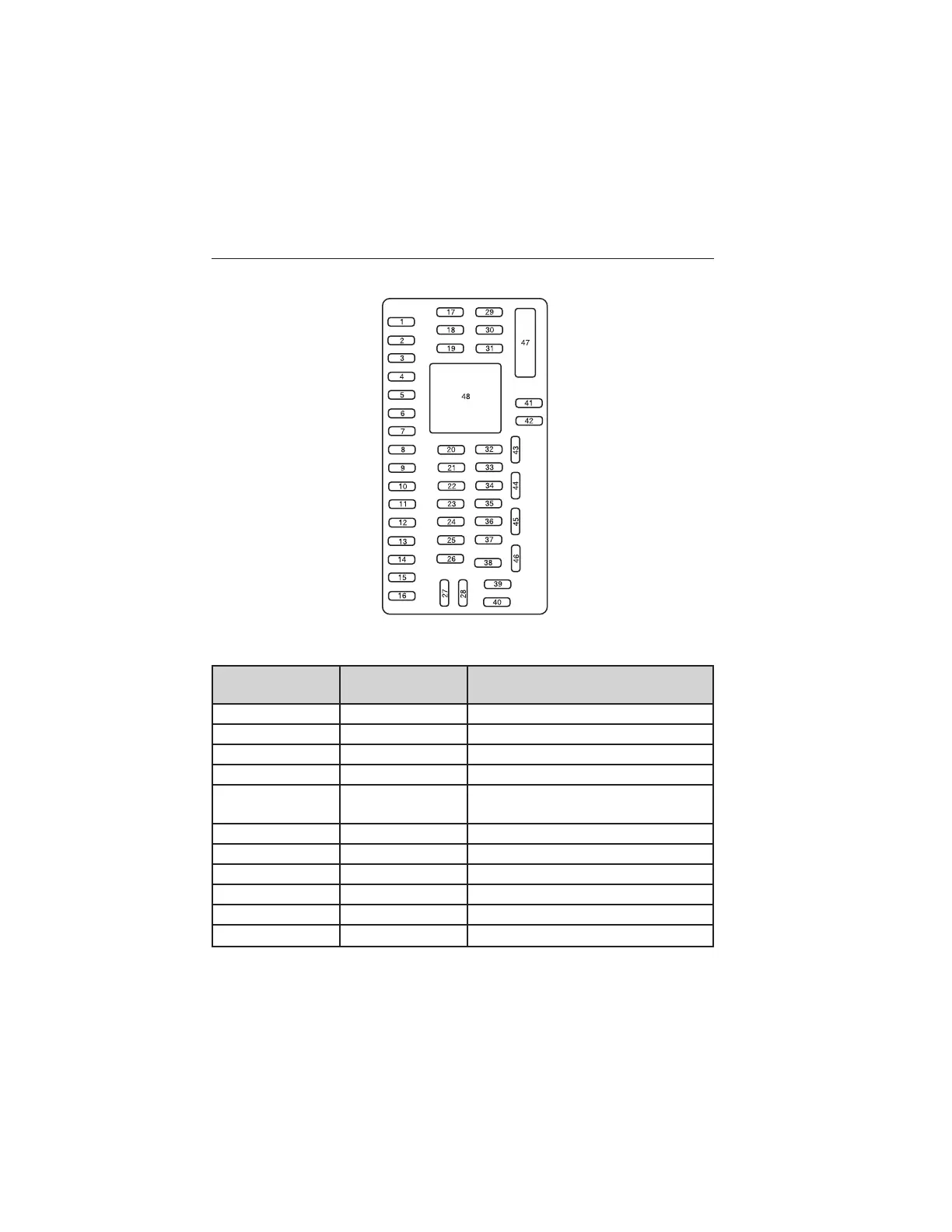

The fuses are coded as follows:
Fuse or relay
location
Fuse amp
rating
Protected components
1 30A Inverter B+
2 15A Not used (spare)
3 15A Not used (spare)
4 30A Not used (spare)
5 10A Passenger compartment fuse
panel, Brake-shift interlock
6 20A Turn signal, Hazard, Stop lamps
7 10A Left low beam
8 10A Right low beam
9 15A Courtesy lamps
10 15A Switch illumination
11 10A Not used (spare)
Fuses 161
2015 Econoline (eco)
Owners Guide gf, 2nd Printing, December 2014
USA (fus)
