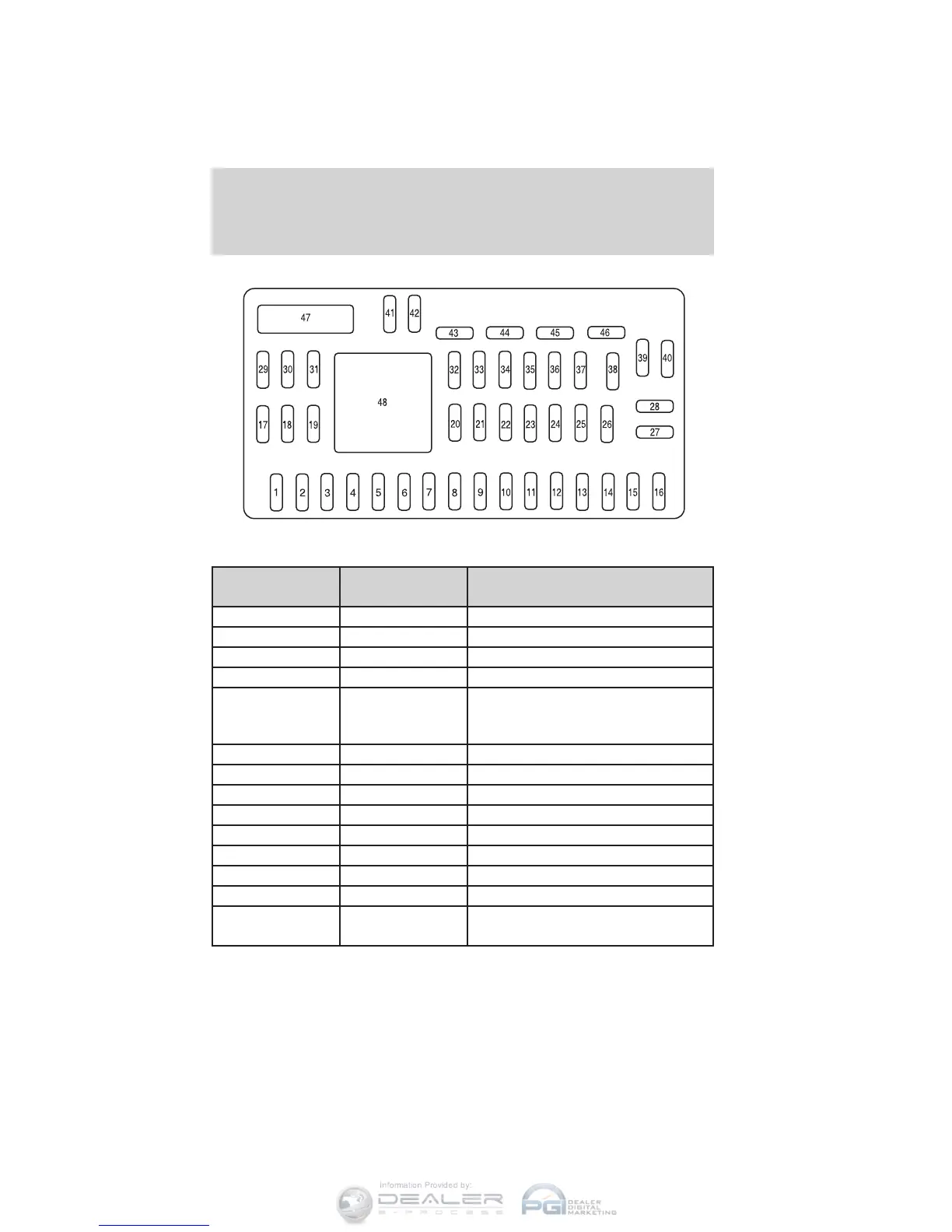

The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 30A Not used (spare)
2 15A Brake on/off switch
3 15A SYNC威 module
4 30A Moon roof
5 10A Keypad illumination, Brake shift
interlock (BSI), Passenger
compartment fuse panel
6 20A Turn signals, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Backlighting
11 10A Four wheel drive
12 7.5A Power mirror switch
13 5A Not used (spare)
14 10A FCIM (radio buttons), Front
display module, GPS module
