Specifications
Dimensions
Regular Cab SuperCab Crew Cab
Exterior mm (in.) 4x2/4x4
SWB
4x2/4x4
LWB
4x2/4x4
SWB
4x2/4x4
LWB
4x2/4x4
A.
Height — F-250 SRW (w/o options)
1928/2012 (75.9/79.2) 1941/2017 (76.4/79.4) 1935/2017 (76.2/79.4) 1961/2029 (77.2/79.9) 1948/2029 (76.7/79.9)
A. Height — F-350 SRW (w/o options)
1930/2037 (76.0/80.2) 1943/2047 (76.5/80.6) 1938/2042 (76.3/80.4) 1956/2060 (77.0/81.1) 1951/2055 (76.8/80.9)
A. Height — F-350 DRW (w/o options)
1933/2017 (76.1/79.4) — 1943/2022 (76.5/79.6) 1956/2060 (77.0/81.1) 1956/2035 (77.0/80.1)
A. Height — F-450 DRW (w/o options)
— — — — 2027 (79.8)
B. Overall width — SRW (excl. mirrors)
2029 (79.9) 2029 (79.9) 2029 (79.9) 2029 (79.9) 2029 (79.9)
B. Overall width — with standard mirrors
2530 (99.6) 2530 (99.6) 2530 (99.6) 2530 (99.6) 2530 (99.6)
C. Ground clearance — F-250 SRW
178/198 (7.0/7.8) 178/198 (7.0/7.8) 178/198 (7.0/7.8) 178/198 (7.0/7.8) 178/198 (7.0/7.8)
C. Ground clearance — F-350 SRW
178/198 (7.0/7.8) 178/198 (7.0/7.8) 178/198 (7.0/7.8) 178/198 (7.0/7.8) 178/198 (7.0/7.8)
C. Ground clearance — F-350 DRW
180/191 (7.1/7.5) — 180/188 (7.1/7.4) 180/188 (7.1/7.4) 180/188 (7.1/7.4)
C. Ground clearance — F-450 DRW
— — — — 198 (7.8)
D. Loadfloor height — F-250 SRW
861/874 (33.9/34.4) 861/876 (33.9/34.5) 861/876 (33.9/34.5) 859/945 (33.8/34.5) 857/876 (33.7/34.5)
D. Loadfloor height — F-350 SRW
864/945 (34.0/37.2) 866/947 (34.1/37.3) 864/945 (34.0/37.2) 864/947 (34.0/37.3) 861/945 (33.9/37.2)
D. Loadfloor height — F-350 DRW
874/889 (34.4/35.0) — 874/892 (34.4/35.1) 874/892 (34.4/35.1) 871/892 (34.3/35.1)
D. Loadfloor height — F-450 DRW
— — — — 892 (35.1)
E. Cargo box height
511 (20.1) 511 (20.1) 511 (20.1) 511 (20.1) 511 (20.1)
F. Overall length
5766 (227.0) 5888 (231.8) 6299 (248.0) 6253 (246.2) 6665 (262.4)
G. Overhang — rear
1331 (52.4) 1331 (52.4) 1331 (52.4) 1331 (52.4) 1331 (52.4)
H. Wheelbase
3480 (137.0) 3602 (141.8) 4013 (158.0) 3967 (156.2) 4379 (172.4)
I. Overhang — front
955 (37.6) 955 (37.6) 955 (37.6) 955 (37.6) 955 (37.6)
J. Angle of departure — F-250 SRW
16.4
˚ /17.3 ˚ 16.4 ˚ /17.3 ˚ 16.2 ˚ /17.3 ˚ 16.3 ˚ /17.4 ˚ 16.2 ˚ /17.4 ˚
J. Angle of departure — F-350 SRW
16.6
˚ /20.3 ˚ 16.5 ˚ /20.2 ˚ 16.3 ˚ /20.2 ˚ 16.4 ˚ /20.2 ˚ 16.3 ˚ /20.2 ˚
J. Angle of departure — F-350 DRW
17.0
˚ /17.9 ˚
—
16.8
˚ /17.9 ˚ 16.8 ˚ /18.0 ˚ 16.7 ˚ /17.9 ˚
J. Angle of departure — F-450 DRW
— — — —
17.9
˚
K. Ramp breakover angle — F-250 SRW
13.7
˚ /18.1 ˚ 13.1 ˚ /1 7.7 ˚ 11.6 ˚ /15.9 ˚ 11.8 ˚ /15.9 ˚ 10.9 ˚ /14.4 ˚
K. Ramp breakover angle — F-350 SRW
14.3
˚ /20.2 ˚ 13.6 ˚ /19.3 ˚ 12.0 ˚ /1 7.0 ˚ 12.1 ˚ /17.2 ˚ 11.0 ˚ /15.6 ˚
K. Ramp breakover angle — F-350 DRW
13.8
˚ /18.8 ˚
—
13.2
˚ /15.5 ˚ 12.1 ˚ /15.9 ˚ 11.0 ˚ /14.4 ˚
K. Ramp breakover angle — F-450 DRW
— — — —
15.2
˚
L. Angle of approach — F-250 SRW
21.0
˚ /23.5 ˚ 21.1 ˚ /23.5 ˚ 21.2 ˚ /23.6 ˚ 22.4 ˚ /23.5 ˚ 21.2 ˚ /23.6 ˚
L. Angle of approach — F-350 SRW
21.1
˚ /22.8 ˚ 21.1 ˚ /22.8 ˚ 21.3 ˚ /22.9 ˚ 21.2 ˚ /22.9 ˚ 21.3 ˚ /22.9 ˚
L. Angle of approach — F-350 DRW
20.9
˚ /23.3 ˚
—
21.0
˚ /23.3 ˚ 21.0 ˚ /23.4 ˚ 21.1 ˚ /23.3 ˚
L. Angle of approach — F-450 DRW
— — — —
22.2
˚
Interior mm (in.)
Front
Head room
1052 (41.4) 1052 (41.4) 1052 (41.4) 1052 (41.4) 1052 (41.4)
Shoulder room 1727 (68.0) 1727 (68.0) 1727 (68.0) 1727 (68.0) 1727 (68.0)
Hip room 1717 (67.6) 1717 (67.6) 1717 (67.6) 1717 (67.6) 1717 (67.6)
Leg room 1041 (41.0) 1041 (41.0) 1041 (41.0) 1041 (41.0) 1041 (41.0)
Rear
Head room
— 975 (38.4) 975 (38.4) 1052 (41.4) 1052 (41.4)
Shoulder room — 1730 (68.1) 1730 (68.1) 1727 (68.0) 1727 (68.0)
Hip room — 1709 (67.3) 1709 (67.3) 1709 (67.3) 1709 (67.3)
Leg room — 808 (31.8) 808 (31.8) 1062 (41.8) 1062 (41.8)
Cargo Box
Volume L (cu. ft.) 2192 (77.4) 1824 (64.4) 2192 (77.4) 1824 (64.4) 2192 (77.4)
M. Width at floor (max.) mm (in.)
1760 (69.3) 1760 (69.3) 1760 (69.3) 1760 (69.3) 1760 (69.3)
N. Length at floor mm (in.)
2489 (98.0) 2078 (81.8) 2489 (98.0) 2078 (81.8) 2489 (98.0)
O. Width at wheelhouse mm (in.)
1293 (50.9) 1293 (50.9) 1293 (50.9) 1293 (50.9) 1293 (50.9)
SRW = single rear wheelDRW = dual rear wheelSWB = short wheelbase (6.75-ft. cargo box)LWB = long wheelbase (8-ft. cargo box)

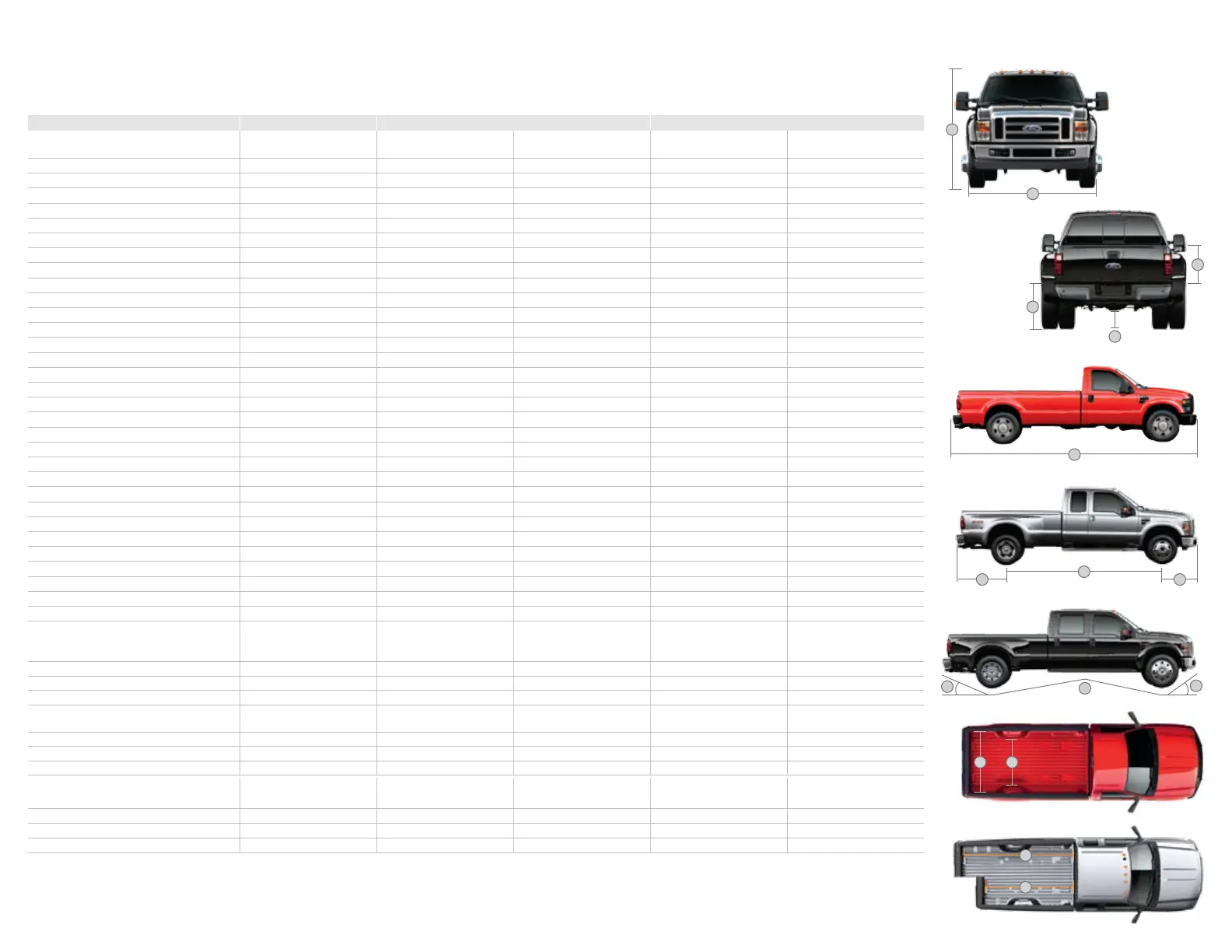

A
